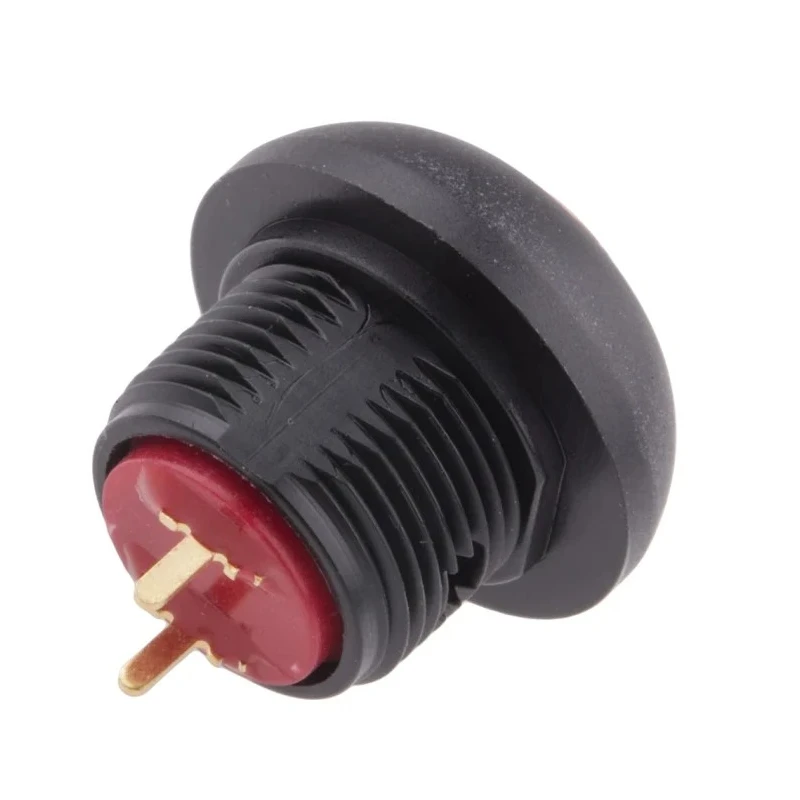

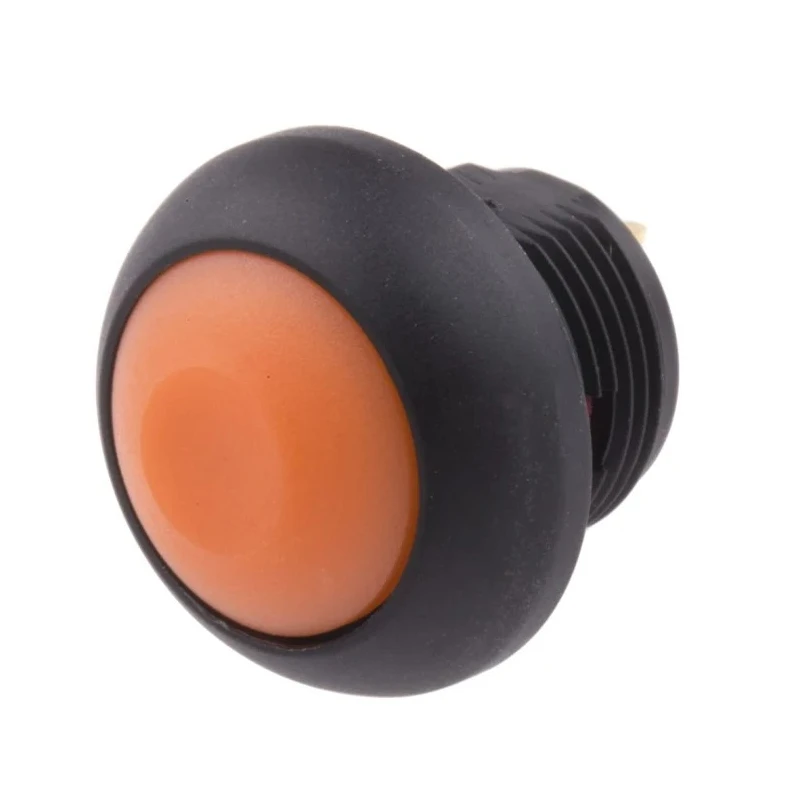

RS PRO Miniature Push Button Switch Momentary PCB 13.6 mm Cutout SPST Orange LED IP67 50V dc 32V ac 8207603P

RS PRO 8207603P Miniature Push Button Switch is a high-quality momentary switch designed for PCB mounting with a compact 13.6 mm panel cutout size, making it suitable for precision electronic control applications.

This SPST switch includes an orange LED indicator for visual feedback and an orange polyamide 6/6 actuator cap that provides both durability and ergonomic operation. It operates safely with contact voltages of up to 50 V dc and 32 V ac with a maximum current rating of 400mA, suitable for use in various low power circuits.

The switch benefits from gold over silver plated contacts ensuring excellent conductivity and extended operational life with a mechanical lifespan of one million cycles. With an IP67 ingress protection rating, this switch is robust against dust and water, allowing use in challenging industrial and laboratory environments.

Operating temperature capability up to 85°C further enhances its versatility across multiple applications such as test equipment, telecommunications, networking devices, and handheld appliances.

Its design features a low operating force between 2N and 5N and minimal contact bounce of 10 ms for responsive and reliable switching. Switch has an orange actuator cap for clear indication. Suitable for panel cutout size of 13.6 mm with PCB mounting type.

Operates at a contact voltage of 50 V dc and 32 V ac. Rated for a maximum switch contact current of 400mA enhancing circuit safety. Designed for high durability with a mechanical life of one million cycles. Features an orange LED indicator for operational status.

IP67 rating provides excellent protection against dust and water ingress. Operating temperature up to 85°C supports wide range applications. Includes gold over silver plated contacts and a polyamide 6/6 cap for longevity.

Ideal for telecommunications, test equipment, networking, and handheld appliances.

This RS PRO miniature push button switch is an essential component for industrial, laboratory, telecommunications, and electronics manufacturing use, providing robustness and reliability with regulatory compliance to RoHS standards.
