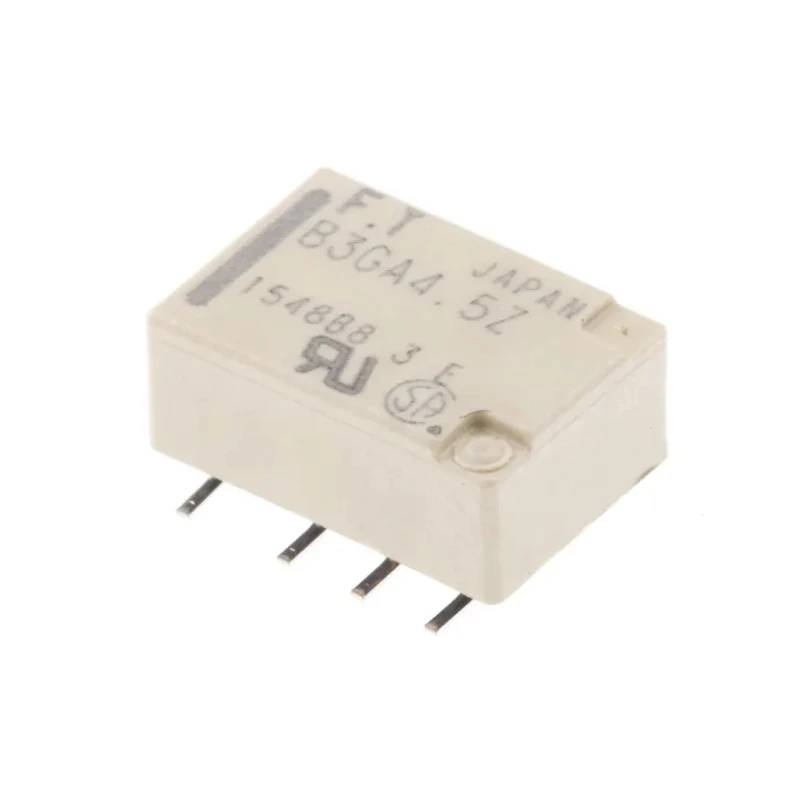

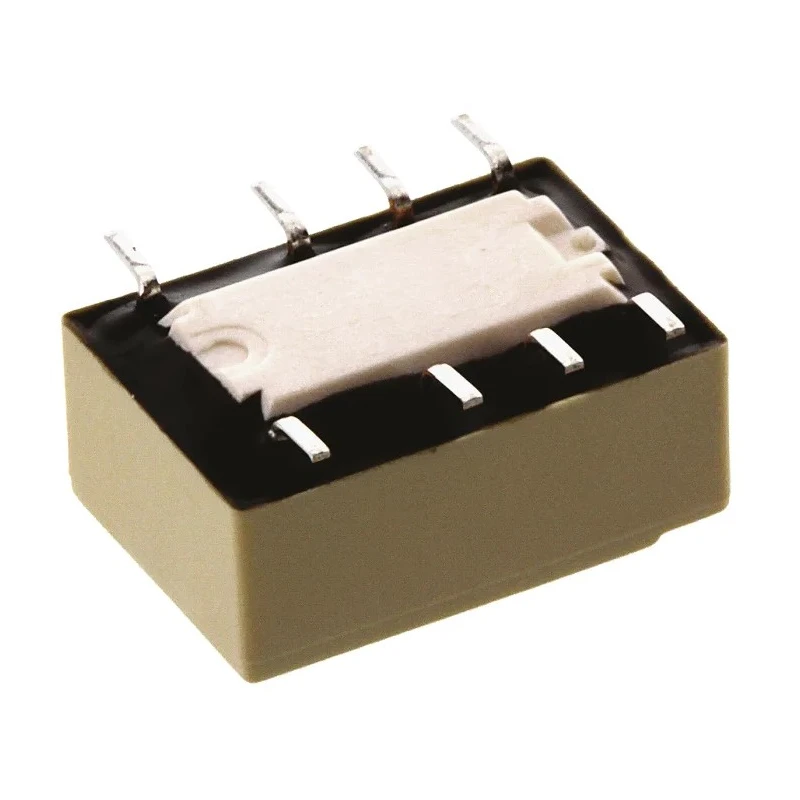

Fujitsu Signal Relay 4.5V DC Coil 2A DPDT Surface Mount Miniature Relay FTR-B3GA4,5Z-B10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Fujitsu |
| Height | 5.45mm |
| Length | 10.6mm |
| Model | FTR-B3GA4,5Z-B10 |
| Contact Material | Gold Plated |
| Series | FTR-B3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Coil Resistance | 145Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 140mW |
Key Features
- The relay operates with a coil resistance of 145 ohms and coil power of 140mW.
- It supports switching AC and DC voltages up to 220V.
- The compact miniature design offers a low profile height of 5.45mm and a length of 10.6mm.
- Gold plated contacts ensure reliable conductivity and long service life.
- Designed to operate in temperatures ranging from -40°C to 85°C.
- Sealed plastic cover enhances durability and environmental protection.
- Bifurcated contacts provide higher reliability during switching.
- Ideal for industrial automation, control systems, and electrical signaling applications.
Product Description
Fujitsu FTR-B3GA4,5Z-B10 is a high-performance signal relay with a 4.5V DC coil and a dual-pole double-throw (DPDT) contact configuration. This miniature relay is surface mount type, designed for compact electronic assemblies requiring reliable switching functionality.
The relay coil has a resistance of 145 ohms and consumes 140mW of power. It can switch AC voltages and DC voltages up to 220V with a maximum switching current of 2A, making it suitable for a wide range of industrial and automation uses.
Its low profile height of 5.45mm and length of 10.6mm enable integration in tight spaces. Gold plated contacts guarantee minimal contact resistance and excellent durability, while bifurcated contacts improve switching reliability.
Operating temperature spans from -40°C to 85°C, ensuring dependable performance under harsh environmental conditions. The sealed plastic cover increases longevity by protecting internal components from dust and contaminants.
The relay features a coil voltage of 4.5V DC and a coil resistance of 145 ohms. It supports DPDT (double-pole double-throw) contact configuration for versatile circuit designs. Switching current rating is 2A with AC/DC voltage handling up to 220V.
Compact dimensions with length of 10.6mm and height of 5.45mm facilitate space-saving PCB layouts. Gold plated contacts and sealed enclosure enhance reliability and durability in industrial applications. Suitable for use in electrical signaling, industrial automation systems, and control circuits.
This signal relay from Fujitsu is a trusted component in electrical automation and industrial electronics, offering reliable performance in compact form factors. For users seeking quality relays for signal conditioning applications, the FTR-B3GA4,5Z-B10 model provides a versatile solution.
Explore more products in the Signal Relay category for comprehensive industrial and electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 4.5V DC.
It can handle a maximum switching current of 2A.
This model has a height of 5.45mm and a length of 10.6mm.
It features a double-pole double-throw (DPDT) contact configuration.
The coil resistance is 145 ohms.
The coil power consumption is 140mW.
It can switch AC and DC voltages up to 220V.
The operating temperature range is from -40°C to 85°C.
The contacts are made of gold plated material to ensure reliable conductivity.
Yes, it features a sealed plastic cover that enhances durability and environmental protection.
This relay has a surface mount terminal type.
It is suitable for industrial automation, control systems, and electrical signaling applications.
