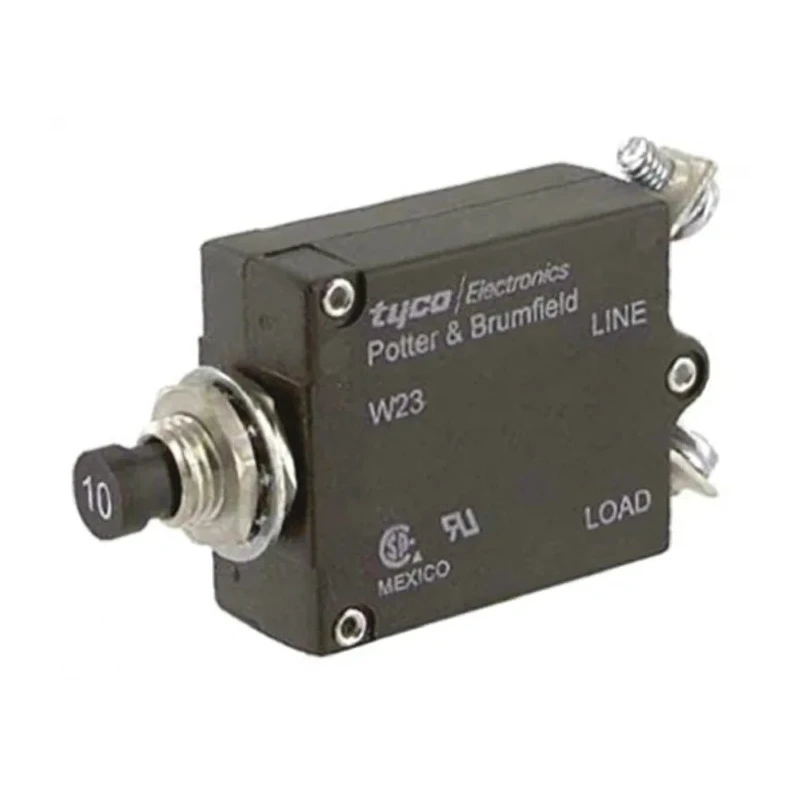

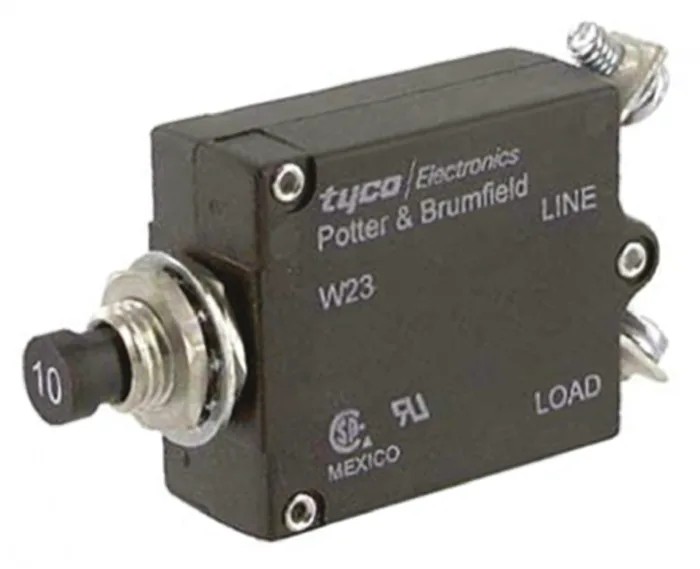

TE Connectivity 0.5 to 50 A Thermal Circuit Breaker 35A Current Rating 1-Pole Direct Mount W23-X1A1G-35

Name: TE Connectivity 0.5 to 50 A Thermal Circuit Breaker 35A Current Rating 1-Pole Direct Mount W23-X1A1G-35
Brand: TE Connectivity
SKU: 234190
Price: 56.05 USD
Availability: InStock



Category Thermal Circuit Breaker Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Range	0.5 to 50 A
Brand	TE Connectivity
Model	W23-X1A1G-35
Width	17.52mm
Mount Type	Direct
Current Rating	35A
Series	W23
Terminal type	Screw
Breaking Capacity	1000A
Number of Poles	1
Standards/Approvals	RoHS, CE
Rated AC Voltage	240V ac
Rated DC Voltage	50V dc
Tripping Characteristics	Thermal
Tripping Mechanism	Thermal
Reset Actuator Type	Toggle Switch
Mount Hole Size	3.33 mm
Break Time	Medium

Key Features

Provides thermal tripping mechanism for reliable overload protection.
Rated AC voltage of 240V and DC voltage of 50V for versatile applications.
Toggle switch reset actuator enables easy manual reset after trip.
Compact width of 17.52 mm with 3.33 mm mount hole size for secure installation.
Screw terminal type ensures strong and stable electrical connections.
Breaking capacity of 1000A able to handle significant fault currents.
Medium break time characteristic suitable for typical thermal protection needs.
Complies with RoHS and CE standards for quality and safety assurance.

Product Description

TE Connectivity W23-X1A1G-35 Thermal Circuit Breaker is designed to provide robust and reliable thermal overload protection in electrical circuits. Featuring a 35A current rating and 1-pole configuration, this breaker supports a current range from 0.5 to 50 A, suitable for diverse industrial and electrical applications.

The unit operates with a thermal tripping mechanism, specifically designed to react to prolonged overcurrent conditions while preventing nuisance trips. Its reset is conveniently managed via a toggle switch actuator, allowing users to easily restore circuit function after a trip event.

With a rated AC voltage of 240V and DC voltage of 50V, this thermal circuit breaker is adaptable for both alternating and direct current systems. It has a breaking capacity of 1000A, ensuring safe interruption of high fault currents in the event of overload or short circuit.

Mechanical design includes a direct mount type with a mounting hole size of 3.33 mm and a narrow body width of 17.52 mm, making it suitable for panel installations requiring compact dimensions. The screw terminal type ensures secure and durable electrical connections.

The break time is classified as medium, offering balanced protection response for many industrial and commercial applications. Compliance with RoHS and CE standards underscores the product’s quality and environmental safety.

Provides thermal tripping mechanism for overload protection. Rated AC voltage of 240V and DC voltage of 50V for versatile use. Toggle switch actuator for manual reset capability. Compact 17.52 mm width and 3.33 mm mount hole size.

Screw terminal type for reliable electrical connections. Breaking capacity of 1000A for fault current interruption. Medium break time for balanced protection response. RoHS and CE compliant ensuring quality standards.

This thermal circuit breaker is ideal for use in industrial, automation, electrical panels, HVAC systems, and other applications requiring precise overload protection. Its robust design and standardized ratings make it suitable for manufacturers, electricians, and maintenance professionals seeking dependable circuit protection solutions.
