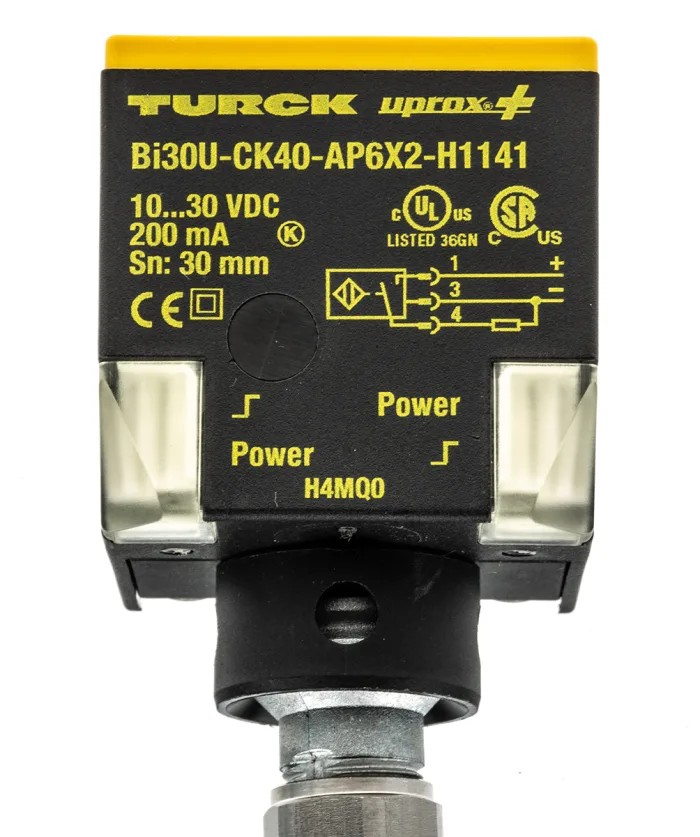

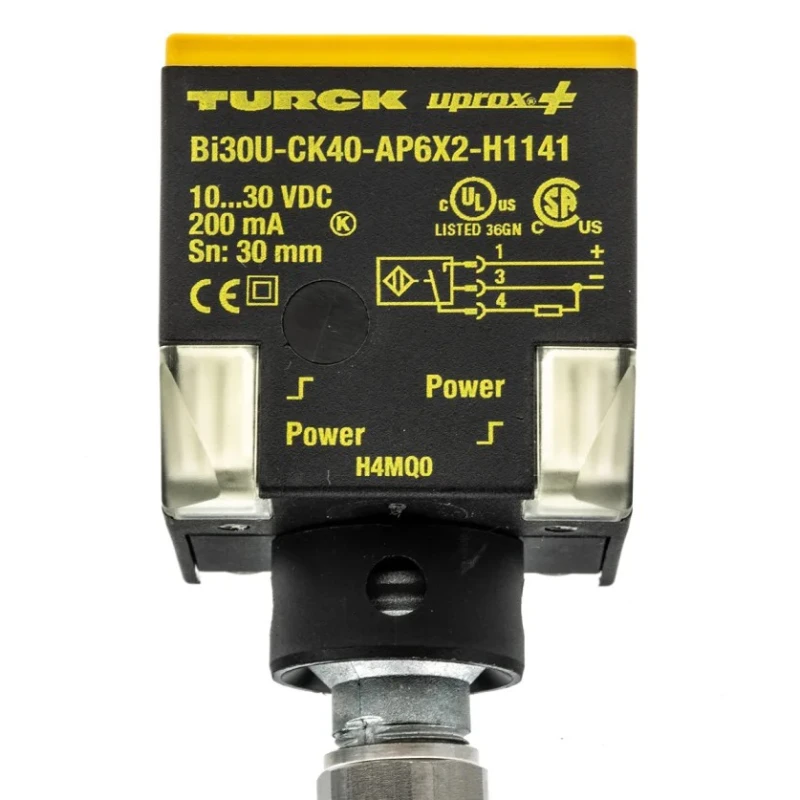

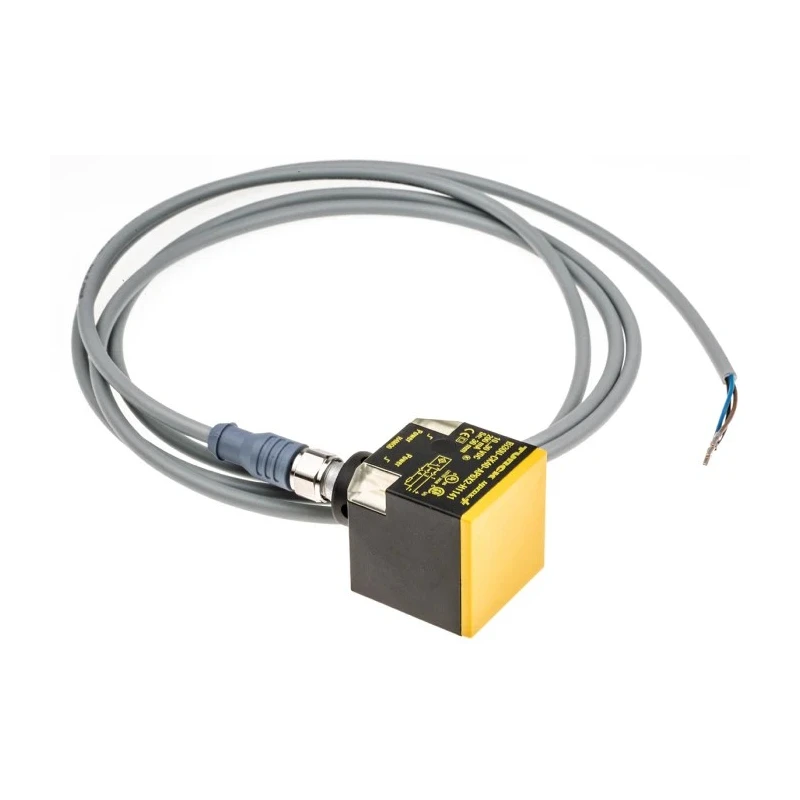

Turck Block Inductive Proximity Sensor M12 x 1 Thread PNP Output Uprox Series 30 V DC 200mA 30 mm BI30U-CK40-AP6X2-H1141

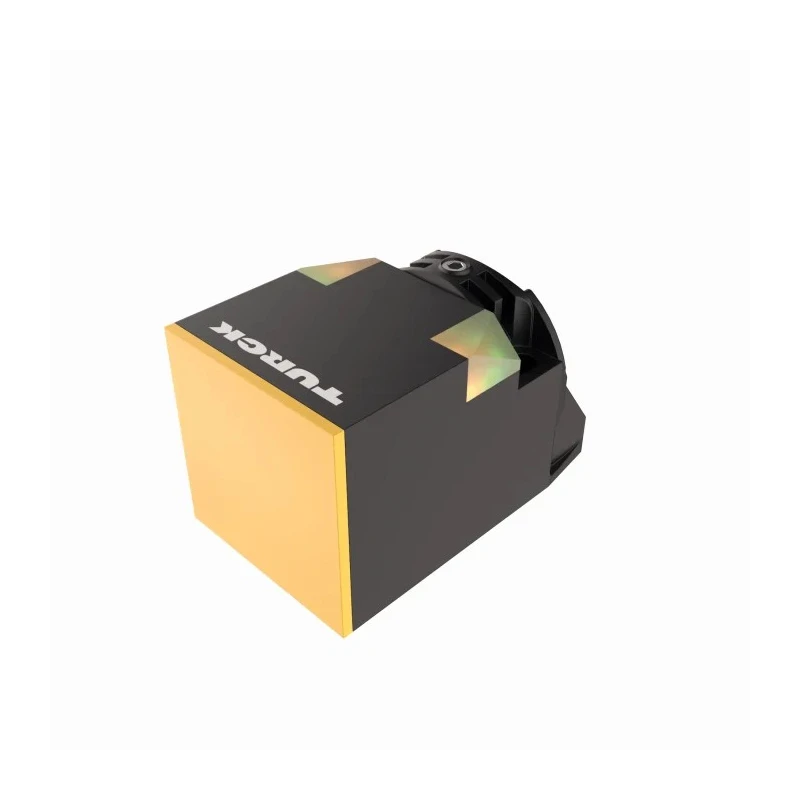

Turck BI30U-CK40-AP6X2-H1141 block inductive proximity sensor offers a robust solution for industrial sensing applications requiring precise metal detection without physical contact. Supporting a 30 mm detection range, this sensor employs a PNP output and operates at a 30 V DC supply voltage with a 200mA switching current rating. The sensor's M12 x 1 threaded block-style housing is constructed from durable Polybutylene Terephthalate (PBT), providing resistance against abrasion and shocks, suited for harsh operating environments.

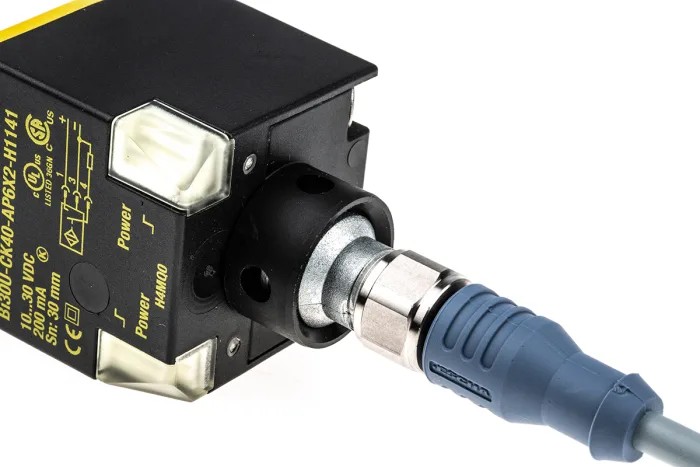

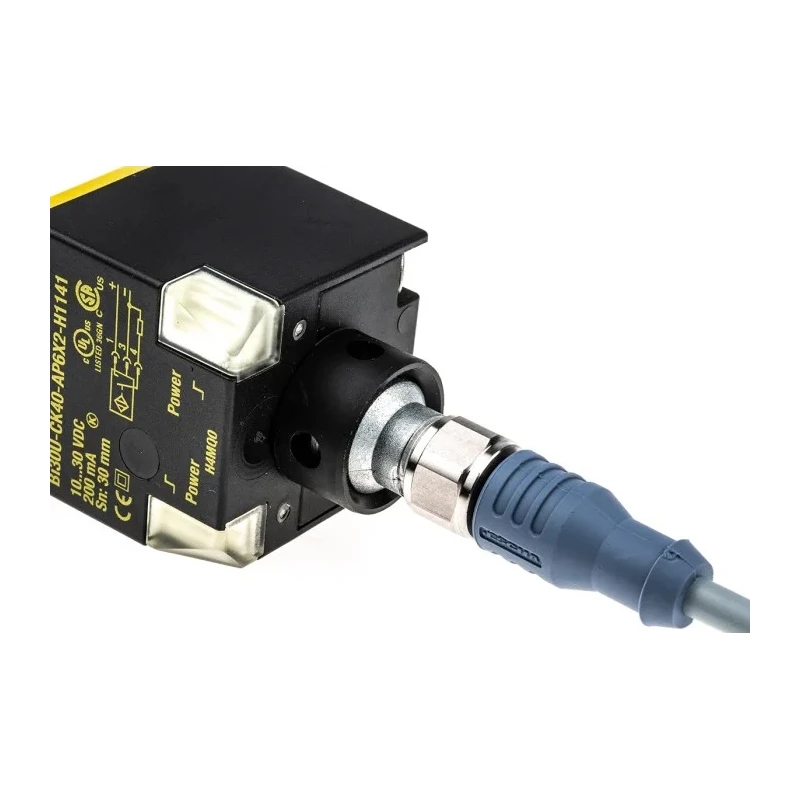

The sensor body dimensions are 65 mm in length, 40 mm in width, and 40 mm in depth, enabling compact integration into automated equipment and machinery. Its IP68 rating ensures it is dust-tight and submersible up to 1.5 meters for 30 minutes, suitable for wet and rigorous industrial conditions. The flush mounting configuration with M12 terminal type supports secure and straightforward installation.

The BI30U-CK40-AP6X2-H1141 is designed with an unshielded ferriteless 3-coil system that offers uniform sensing distance for all metals such as aluminum, brass, copper, and ferrous metals, removing the need for recalibration across different metal types. The adjustable five-position sensor head rotation provides installation flexibility to meet diverse system configurations.

Additional features include a maximum switching frequency of 250 Hz, operational temperature range from -10°C to 60°C, and integral protection mechanisms against short circuits, overloads, and reverse polarity. The sensor also possesses inherent weld field immunity and reduced load current (15mA max no-load current), contributing to reliable and maintenance-free industrial operation.

This sensor is extensively used in robotics systems, automated assembly lines, packaging facilities, and aerospace industry applications where non-contact metal detection enhances process accuracy and equipment longevity. Its robust design and advanced sensing capabilities make it an ideal choice for demanding industrial automation tasks.

Set contains 1 Pc Turck BI30U-CK40-AP6X2-H1141 Block Inductive Proximity Sensor with M12 x 1 mounting thread and PNP output. Explore an extensive range of Inductive Proximity Sensors and industrial automation components at EnvMart.

Equipped with a sturdy Polybutylene Terephthalate (PBT) housing for enhanced durability. Flush mount type with M12 terminal connection for seamless installation. IP68 rated enclosure protects from dust and submersion in water up to 1.5m for 30 minutes.

Supports a maximum switching frequency of 250 Hz and operates within -10°C to 60°C temperature range. Unshielded, ferriteless 3-coil system detects all metals with consistent switching distance. Includes short circuit, overload, and reverse polarity protection for reliable industrial use.

Rotatable 5-position sensor head to suit diverse application needs. Ideal for robotics, automated assembly, packaging, and aerospace industry applications.
