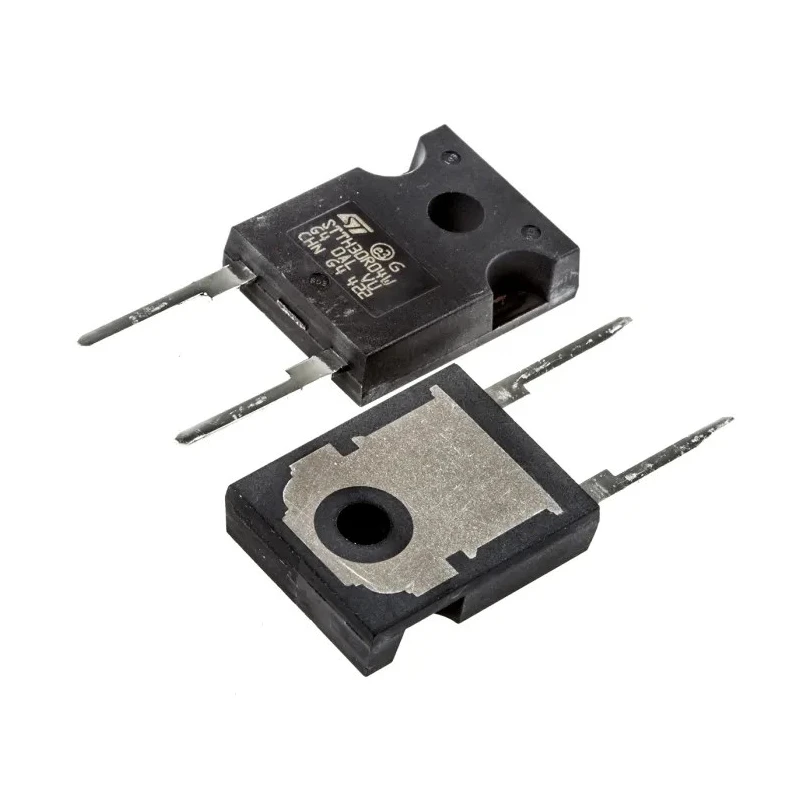

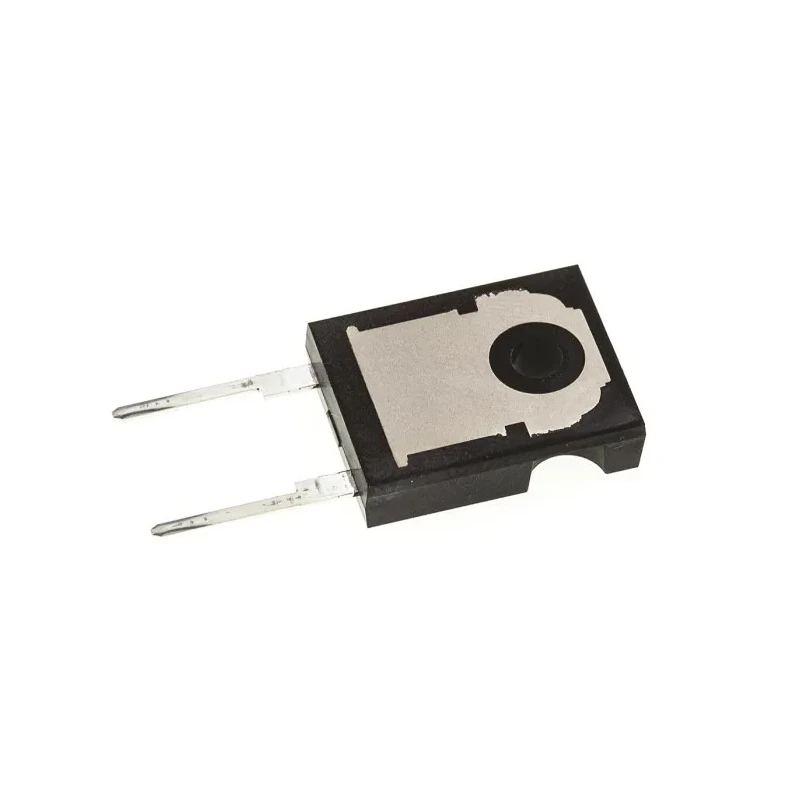

STMicroelectronics 400 V 30 A Switching Rectifier Diode Through Hole DO-247 STTH30R04W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.55mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH30R04W |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH30R04 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 15μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Maximum Forward Voltage Vf | 1.45V |
| Peak Reverse Recovery Time trr | 100ns |
Key Features
- Single diode configuration suitable for switching applications.
- Through hole mounting with DO-247 package type dimensions.
- Maximum forward voltage drop of 1.45 V for efficient conduction.
- High surge current capability of 300 A peak non-repetitive forward surge.
- Fast recovery time of 100 ns to minimize switching losses.
- Wide operating temperature range from -40°C to 175°C.
- Compliance with RoHS environmental standards.
- Peak reverse current rated at 15 microamperes for low leakage current.
Product Description
STMicroelectronics STTH30R04W is a high-performance switching rectifier diode engineered to handle continuous forward current up to 30 A and withstand peak reverse voltage of 400 V. Packaged in a DO-247 through hole form factor, this diode is especially suitable for industrial electronics, power supplies, and demanding switching applications.
The diode features a single rectifier configuration with a maximum forward voltage of 1.45 V and a peak non-repetitive forward surge current capability of 300 A, ensuring robustness during transient loads. Its peak reverse recovery time of 100 ns contributes to improved efficiency in high-frequency switching circuits. Operating reliably over a temperature range from -40°C to 175°C, it supports a wide variety of environments.
The physical dimensions include a height of 20.15 mm, length 15.75 mm, width of 5.15 mm, and a pin count of 2 for straightforward through-hole PCB mounting. The peak reverse current is low at 15 μA, supporting energy efficiency and minimal leakage in circuits.
This diode is RoHS compliant, affirming adherence to environmental and safety regulations. Its solid performance makes it an excellent choice for electronic assembly in power management, industrial automation, and other technical fields requiring reliable semiconductor switching components.
Single diode configuration suitable for switching applications. Through hole mounting with DO-247 package type dimensions. Maximum forward voltage drop of 1.45 V for efficient conduction. High surge current capability of 300 A peak non-repetitive forward surge.
Fast recovery time of 100 ns to minimize switching losses. Wide operating temperature range from -40°C to 175°C. Compact dimensions: height 20.15 mm, length 15.75 mm, width 5.15 mm. Compliance with RoHS environmental standards.
Peak reverse current rated at 15 microamperes for low leakage current. Reliable performance for industrial, electronic, and power supply applications. Explore more STMicroelectronics components and semiconductor solutions on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 30 A.
It can withstand a peak reverse voltage of 400 V.
The dimensions are 20.15 mm in height, 15.75 mm in length, and 5.15 mm in width.
The maximum forward voltage drop is 1.45 V.
The diode has a peak non-repetitive forward surge current capability of 300 A.
The peak reverse recovery time is 100 ns.
The operating temperature range is from -40°C to 175°C.
It uses through-hole mounting with a DO-247 package type.
The peak reverse current is rated at 15 μA.
Yes, it is compliant with RoHS environmental standards.
It has a single diode configuration suitable for switching applications.
The pin count is 2, allowing for straightforward through-hole PCB mounting.
