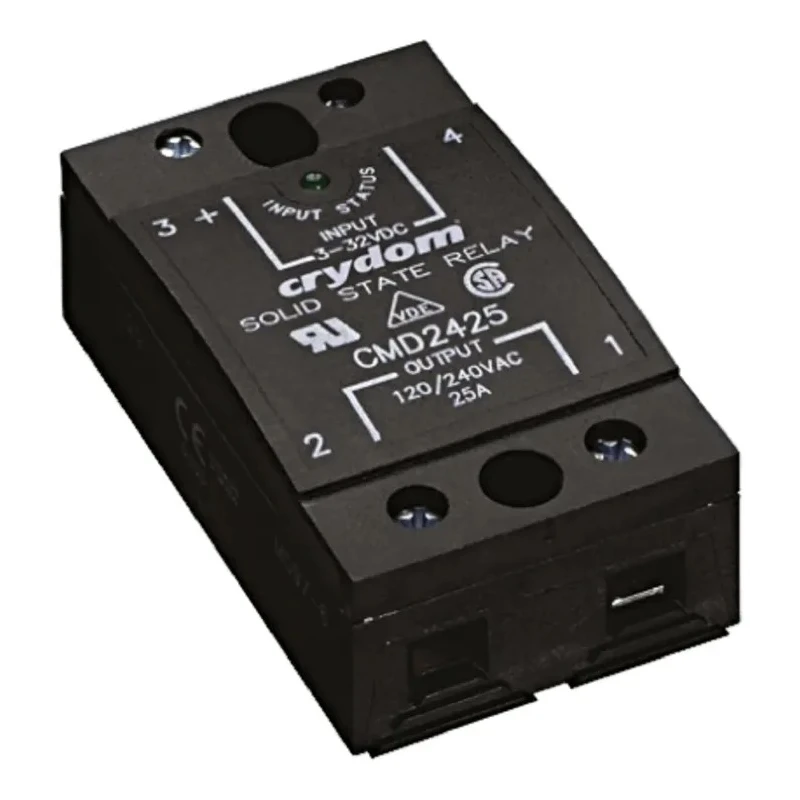

Crydom CMD Series Solid State Relay Panel Mount 25A Load 280V Load 32V Control CMD2425
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 29.2mm |
| Length | 44.5mm |
| Model | CMD2425 |
| IP Rating | IP20 |
| Width | 29.2mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | CMD |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 25A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 280V |
| Minimum Load Voltage | 32V |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 10mA |
| Input to output Capacitance | 8pF |
Key Features
- Features a zero-cross switching function for reduced electrical noise.
- Operates reliably in temperatures ranging from -40°C to 80°C.
- Equipped with screw terminal type connections and integral fingerproof safety cover.
- IP20 rated for protection against solid objects but not water.
- Low off-state leakage current of 10mA ensures efficiency.
- Compact dimensions with 29.2mm height, 29.2mm width, and 44.5mm length.
- Input control voltage ranges from 3V to 32V.
- Output type is SCR ensuring robust switching performance.
Product Description
Crydom CMD2425 Solid State Relay is engineered for industrial and electrical automation applications requiring reliable switching solutions. This panel mount relay supports a maximum load current of 25 amperes and a maximum load voltage of 280 volts, making it suitable for controlling AC loads in machinery and control panels.
Featuring a zero-cross switching function, this relay minimizes electrical noise and transients by switching precisely at the zero-voltage point. It operates efficiently with an off-state leakage current of just 10mA and a capacitance of 8pF for optimized performance.
The relay is designed with screw terminals and an integral fingerproof safety cover, ensuring secure connections and enhanced user safety during installation and maintenance. It carries an IP20 rating, protecting against access to hazardous parts and solid foreign objects but not against water ingress.

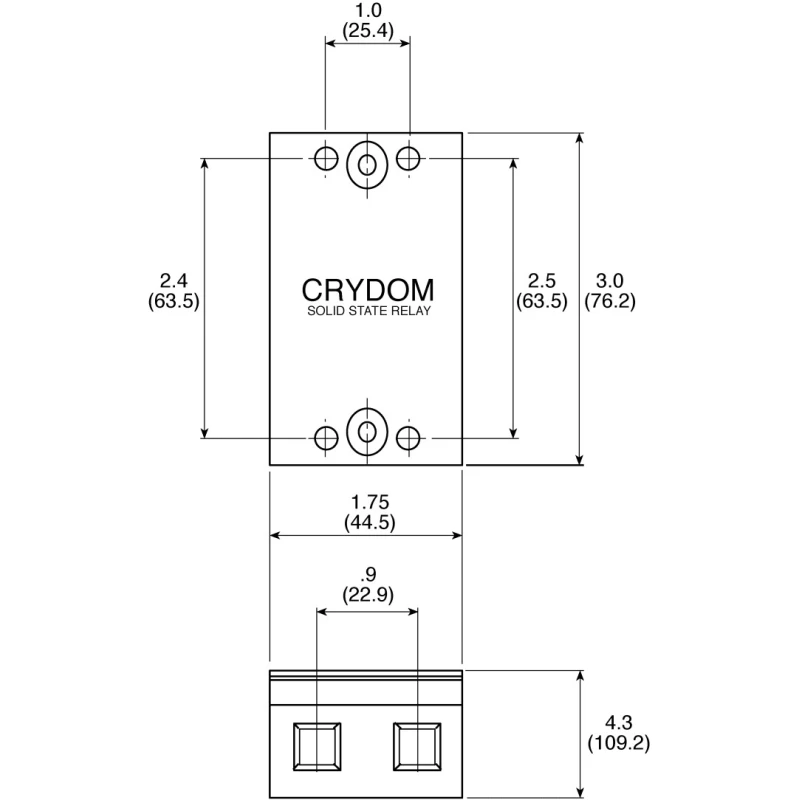

Its compact dimensions of height 29.2mm, width 29.2mm, and length 44.5mm allow for easy integration into control panels without occupying excessive space. The device withstands operating temperatures from -40°C to 80°C, enabling dependable operation even in challenging industrial environments.
Input control voltage spans from 3V to 32V, accommodating a range of control systems. The SCR output type delivers consistent switching capacity for AC loads with a maximum load voltage of 280V. This relay is manufactured in Mexico and complies with RoHS environmental standards.
Zero cross switching reduces electrical noise. Robust screw terminal connections with safety cover. Wide operating temperature range from -40°C to 80°C. Compact and panel mount design optimizes installation space. Low leakage current and low input to output capacitance ensure efficient operation.
Complies with environmental RoHS standards.
This relay is ideal for industrial automation, manufacturing control panels, HVAC systems, and other commercial electrical applications requiring reliable and efficient AC load switching. Browse EnvMart for more Crydom Solid State Relays and related automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 25 amperes.
The input control voltage for the CMD2425 ranges from 3V to 32V.
This relay can handle a maximum load voltage of 280 volts.
The output type of the CMD2425 is SCR, which ensures robust switching performance.
The dimensions of this relay are 29.2mm in height, 29.2mm in width, and 44.5mm in length.
The CMD2425 operates efficiently in temperatures ranging from -40°C to 80°C.
This relay has an IP20 rating, providing protection against solid objects but not water.
The zero-cross switching function minimizes electrical noise and transients by switching at the zero-voltage point.
It is equipped with screw terminal type connections for secure installation.
The off-state leakage current of the CMD2425 is 10mA, ensuring efficient operation.
The Crydom CMD2425 is manufactured in Mexico.
This relay complies with RoHS environmental standards.
