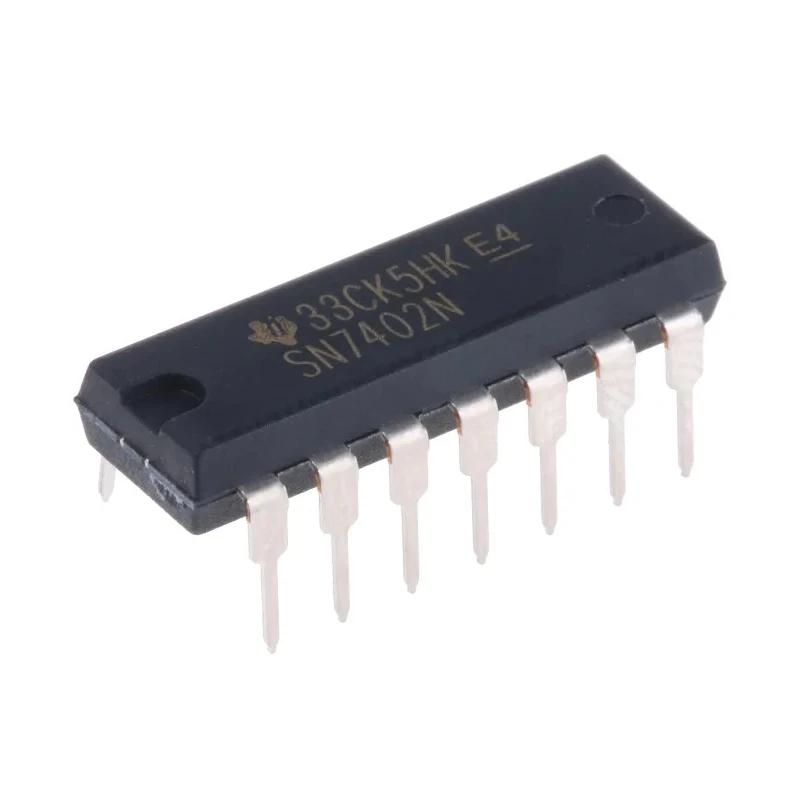

Texas Instruments 4 2-Input NOR Logic Gate 14-Pin PDIP SN7402N

Texas Instruments SN7402N is a high-quality 4 2-input NOR logic gate encapsulated in a 14-pin PDIP (Plastic Dual Inline Package) suitable for through-hole mounting applications. This component belongs to the 74 series TTL logic family, operating within a voltage range of 4.75 V to 5.25 V and designed for robust digital logic circuits.

Featuring four independent gates with two inputs each, the SN7402N performs NOR logic functions rapidly with a maximum propagation delay of 5 nanoseconds under capacitive load conditions. The device operates reliably across a temperature range of 0°C to 70°C, supporting industrial and electronic component applications.

The maximum high level output current is -0.4 mA, whereas the low level output current can reach up to 16 mA, which allows effective interfacing with other devices and circuits. The absence of Schmitt trigger inputs indicates it is tailored for standard logic operations without noise immunity enhancements found in Schmitt trigger variants.

The SN7402N package includes 14 pins arranged to match standard DIP sockets, facilitating easy integration in PCB designs and prototyping. This logic gate is a fundamental building block for digital electronics, utilized widely in electronic components, power systems, and semiconductors.

The device supports four 2-input NOR gates enabling multiple logic functions within a single chip. Standard 74 logic family ensures compatibility with numerous TTL components. Through-hole PDIP packaging simplifies mounting and soldering in circuit boards.

Designed for industrial temperature ranges allowing flexibility in application environments. Ideal for applications in electronic manufacturing, power and connectors, and semiconductor devices. Meets general semiconductor standards but does not feature specialized automotive compliance.

This logic gate integrates seamlessly into complex digital circuits in industrial and laboratory settings, providing efficient and reliable logic operations. For purchasing, design, and integration information, explore more products in the category of Logic Gate at EnvMart.
