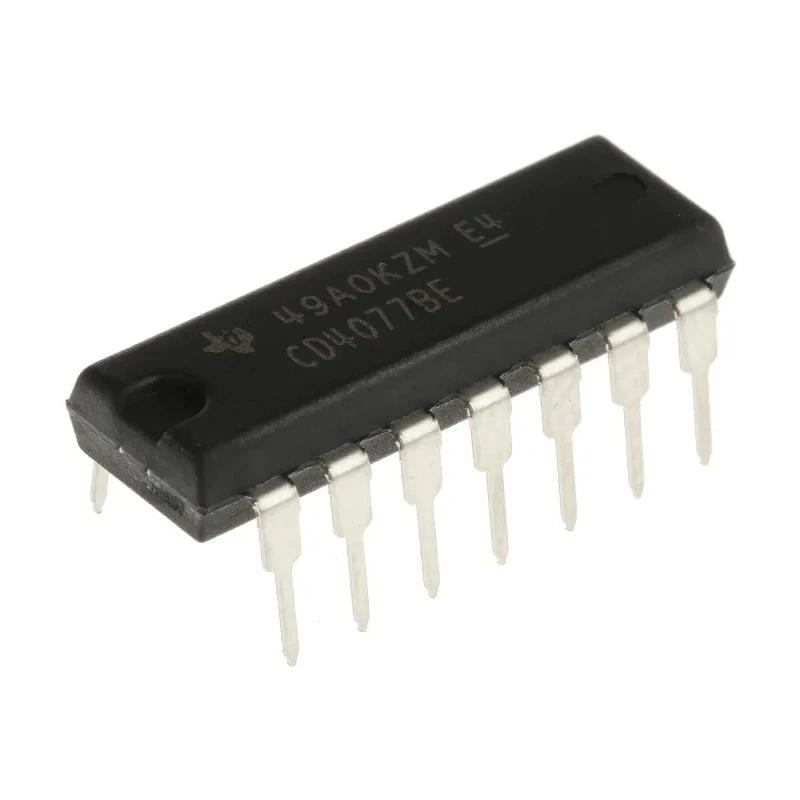

Texas Instruments 4 2-Input XNOR Logic Gate 14-Pin PDIP CD4077BE

Name: Texas Instruments 4 2-Input XNOR Logic Gate 14-Pin PDIP CD4077BE
Brand: Texas Instruments
SKU: 183689
Price: 0.92 USD
Availability: InStock



Category Logic Gate Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	CD4077BE
Mount Type	Through Hole
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	XNOR
Minimum Supply Voltage	3V
Maximum High Level Output Current	-4.2mA
Maximum Propagation Delay Time @ CL	100ns
Maximum Low Level Output Current	4.2mA
Number of Inputs per Gate	2
Wide operating voltage range	3 to 18V

Key Features

This logic gate features 4 independent 2-input XNOR gates integrated in a 14-pin PDIP package.
Operational voltage range is wide from 3 V to 18 V, enabling flexible use in various circuits.
Maximum propagation delay time is 100 nanoseconds, suitable for fast logic switching.
Designed for through-hole mounting with CMOS input type for efficient performance.
Operating temperature range of -55°C to 125°C ensures suitability in harsh environments.
Each gate delivers maximum high-level output current of -4.2 mA and maximum low-level output current of 4.2 mA.
It belongs to the versatile 4000 series logic family by Texas Instruments.
This product contains four logic elements in a durable PDIP package with 14 pins.

Product Description

Texas Instruments CD4077BE is a 4 2-Input XNOR Logic Gate in a 14-Pin PDIP package providing robust logic functionality. The device is part of the 4000 CMOS logic family, widely respected for its reliable performance and wide operating voltage range between 3 V and 18 V. Its through-hole mount type makes it suitable for various PCB designs requiring stable and durable logic interfaces.

Featuring 4 independent 2-input XNOR gates, this IC delivers precise logic processing with a maximum propagation delay time of 100 nanoseconds at specified load conditions. The device operates efficiently under temperatures ranging from -55°C to 125°C, making it fit for industrial and commercial electronics applications.

Each logic gate outputs a maximum high-level output current of -4.2 mA and a maximum low-level output current of 4.2 mA, suitable for interfacing with other CMOS or TTL logic devices. The 14-pin PDIP package ensures compatibility with common through-hole PCB layouts and easy prototyping.

This CMOS-based logic gate device is widely used in digital electronics, signal processing, and control systems within industrial, manufacturing, automation, and laboratory setups.

4 individual 2-input XNOR gates integrated in one package. Wide power supply voltage range from 3 to 18 volts. Fast switching with maximum propagation delay time of 100 ns. Robust operation over an extensive temperature range (-55°C to 125°C).

Through-hole mounting type suitable for standard PCB assembly. Compatible with CMOS input technology. Belongs to the 4000 series logic family, providing dependable performance. Package includes 14 pins organized in PDIP format.
