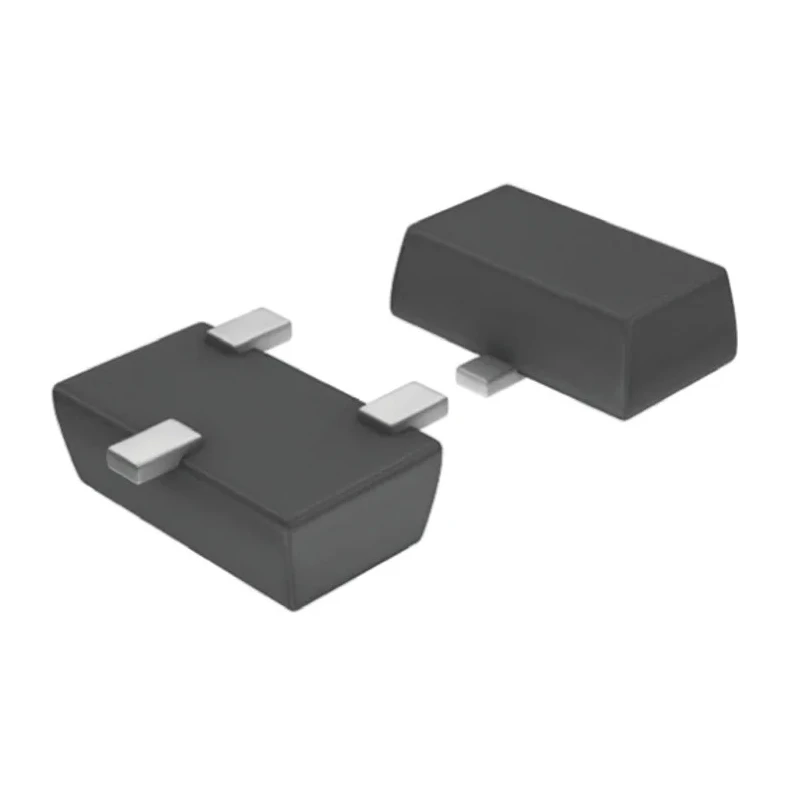

DiodesZetex PNP Bipolar Transistor 4 A, 60 V, 3-Pin SOT-23 Package ZXTP19060CFFTA

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex PNP Bipolar Transistor 4 A, 60 V, 3-Pin SOT-23 Package ZXTP19060CFFTA

Name: DiodesZetex PNP Bipolar Transistor 4 A, 60 V, 3-Pin SOT-23 Package ZXTP19060CFFTA
Brand: DiodesZetex
SKU: 218332
Price: 0.6 USD
Availability: InStock



Category Bipolar Transistors Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1mm
Length	3mm
Model	ZXTP19060CFFTA
Width	2.5mm
Mount Type	Surface
Series	ZXTPX
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-60V
Minimum DC Current Gain hFE	30
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-7V
Maximum Collector Base Voltage VCBO	-60V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	2W
Maximum DC Collector Current Idc	-4A
Transistor Configuration	Single
Maximum Transition Frequency ft	180MHz

Key Features

This transistor is housed in a compact 3-pin SOT-23 surface mount package.
Supports a maximum power dissipation of 2 watts for reliable operation.
Features a maximum transition frequency of 180 MHz for high-speed switching.
Operates effectively within the temperature range of -55°C to 150°C.
Offers a minimum DC current gain (hFE) of 30, ideal for amplification tasks.
Complies with automotive quality standard AEC-Q101 for robust automotive applications.
Consists of 3 pins enabling single transistor configuration with PNP polarity.

Product Description

DiodesZetex ZXTP19060CFFTA is a general-purpose PNP bipolar transistor widely used in electronic circuits requiring medium power and voltage handling capabilities. It supports a maximum DC collector current of 4 A and a collector emitter voltage rating of 60 V, making it suitable for amplification and switching in power circuits.

The device is packaged in a small surface-mount SOT-23 package with 3 pins, facilitating efficient PCB space utilization. It offers a maximum power dissipation of 2 watts and features a transition frequency of 180 MHz, allowing for rapid switching performance in communications and signal processing applications.

Reliable operation is ensured within a temperature range from -55°C up to 150°C. The minimum DC current gain factor of 30 aids in providing stable amplification characteristics. The product meets the automotive standard AEC-Q101, confirming its suitability for demanding automotive electronics environments.

This transistor is ideal for industrial, automotive, and general electronic applications requiring compact, reliable semiconductor switching components. This transistor features a maximum DC collector current of 4 A. The device supports a maximum collector emitter voltage of 60 V.

Surface-mount SOT-23 package with 3 pins for compact design. Maximum power dissipation rated at 2 watts ensuring durability. Operates at a maximum transition frequency of 180 MHz for fast switching. Wide operating temperature range from -55°C to 150°C.

Minimum DC current gain (hFE) of 30 aids amplification. Automotive-grade component certified to AEC-Q101 standards. Explore more semiconductor solutions and electronic components for diverse industrial and automotive applications with EnvMart.
