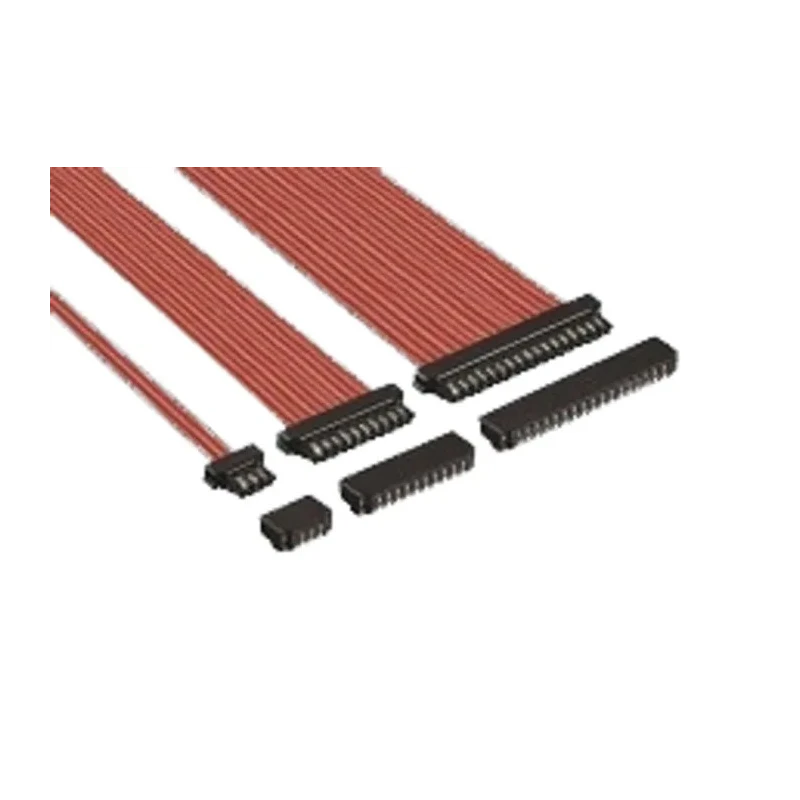

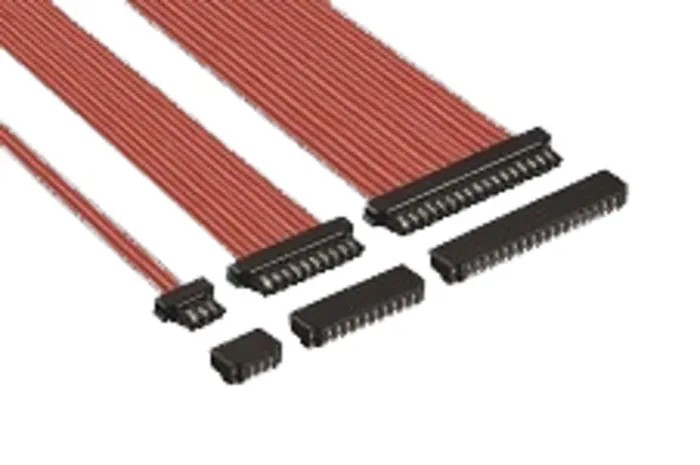

Hirose 52 Series Right Angle PCB FPC Connector 6 Contacts 0.8 mm Pitch DF52-6S-0.8H(21)

Hirose DF52-6S-0.8H(21) is a right angle PCB FPC connector from the 52 Series designed for wire-to-board connections with a fine 0.8 mm pitch and 6 female contacts arranged in a single row. Its small dimensions (1.75 mm height, 4.1 mm depth) and robust construction make it an ideal choice for compact electronic assemblies.

The contact material is copper alloy with tin plating, providing excellent electrical performance and corrosion resistance. The polyamide housing ensures mechanical durability and electrical insulation. The connector termination style is surface mount, and it is designed for mounting on printed circuit boards at a right angle orientation.

Rated to operate down to -40°C and up to 85°C, it suits a variety of applications including industrial controls, instrumentation, and consumer electronics. It supports currents up to 1.5 mA and voltages up to 100 V AC, enabling reliable signal and low-power power connections.

The design incorporates a box shape crimp contact with high contact lance strength to prevent deformation, supporting cables with an outer diameter between 0.5 and 0.6 mm and AWG sizes 32 to 28. The halogen-free materials enhance environmental compliance.

This connector is supplied on reels containing 5000 units, suitable for automated surface-mount technology (SMT) assembly lines. It is a specialized component for electronics manufacturing requiring precision connectors meeting industrial standards.

Compact 0.8 mm pitch right angle PCB FPC connector with 6 contacts. Polyamide housing and copper alloy contacts with tin plating. Surface mount termination and right angle orientation for PCB assembly. Operating temperature range from -40°C to 85°C.

Voltage rating of 100 V AC and current rating up to 1.5 mA. Supports cables with jacket outer diameter 0.5 - 0.6 mm (AWG#32 to 28). High contact lance strength with box shape crimp contact preventing deformation. Halogen-free material compliant with environmental regulations.

Suitable for industrial, manufacturing, automation, and electronic device applications. Explore more Hirose connectors and high-quality FPC Connectors in the Electronics & Electricals category at EnvMart for reliable electronic assembly solutions.
