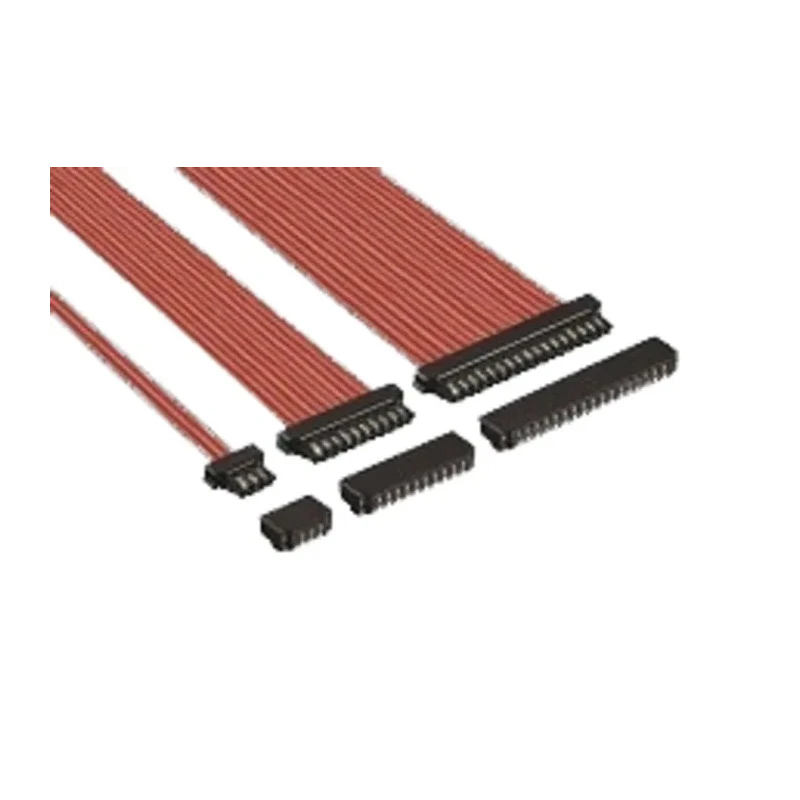

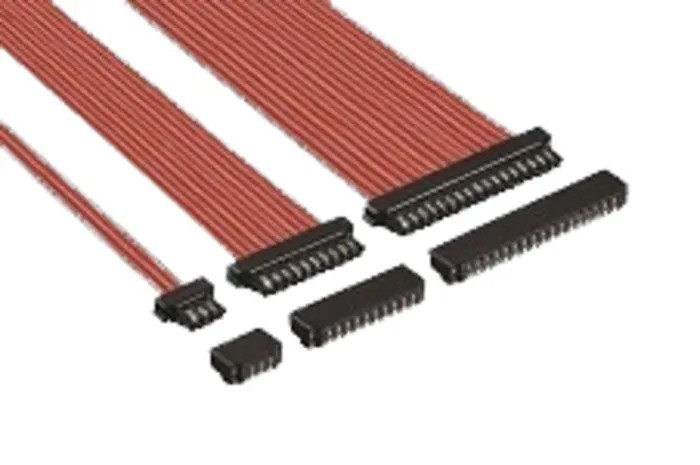

Hirose 52 Series Right Angle PCB FPC Connector, 4 Contacts, 0.8 mm Pitch, 1 Row DF52-4S-0.8H(21)

Hirose DF52-4S-0.8H(21) 52 Series Right Angle PCB FPC Connector is engineered to provide a small and robust wire-to-board connection solution with a 0.8 mm pitch, 4 contacts, and a single row configuration. This connector is ideal for electronic, industrial, and manufacturing applications requiring compact and dependable PCB connections.

The right-angle orientation with a low profile of 1.75 mm height and 4.1 mm depth supports compact PCB layouts while maintaining mechanical stability. The polyamide housing offers excellent resistance to heat and mechanical stresses, making the component suitable for environments with temperature variations from -40°C up to 85°C.

Rated to carry up to 2.5 Amps at AWG#28 wire gauge, the connector incorporates copper alloy contacts plated with tin to enhance conductivity and prevent corrosion. Its surface mount technology (SMT) termination facilitates automated PCB assembly, streamlining manufacturing processes.

The connector’s robust design includes a high contact lance strength and a box-shaped crimp contact that prevents deformation during installation and use. It supports cable jackets with outer diameters between 0.5 mm and 0.6 mm (AWG#32 to AWG#28), making it versatile for various wiring configurations.

This halogen-free product helps comply with environmental safety standards. Hirose offers compatible plugs in straight configurations and receptacles in right-angle, making the series flexible for different PCB connection needs.

The connector’s right-angle orientation optimizes PCB space usage. Durable polyamide housing ensures reliability under thermal stress. Supports currents up to 2.5 Amps suitable for low power applications. Surface mount termination allows easy PCB integration.

Copper alloy contacts plated with tin prevent corrosion. Wide operating temperature range from -40°C to 85°C. Halogen-free to meet environmental compliance. Robust construction prevents deformation of contacts. Supports cable jacketing for AWG#32 to AWG#28 wires.

Compatible plug and receptacle variants available.

This connector is widely used in electronics manufacturing, industrial control systems, and automotive applications where compact, reliable PCB connections are needed. It enables efficient signal and power transmission in various electronic assemblies.
