Vishay Silicon Junction Switching Diode, Single, 200 mA, 2-Pin MicroMELF Package, 100 V, 500 mW, Fast Switching MCL4148-TR

Free Delivery in India | Lowest Global Shipping Charges

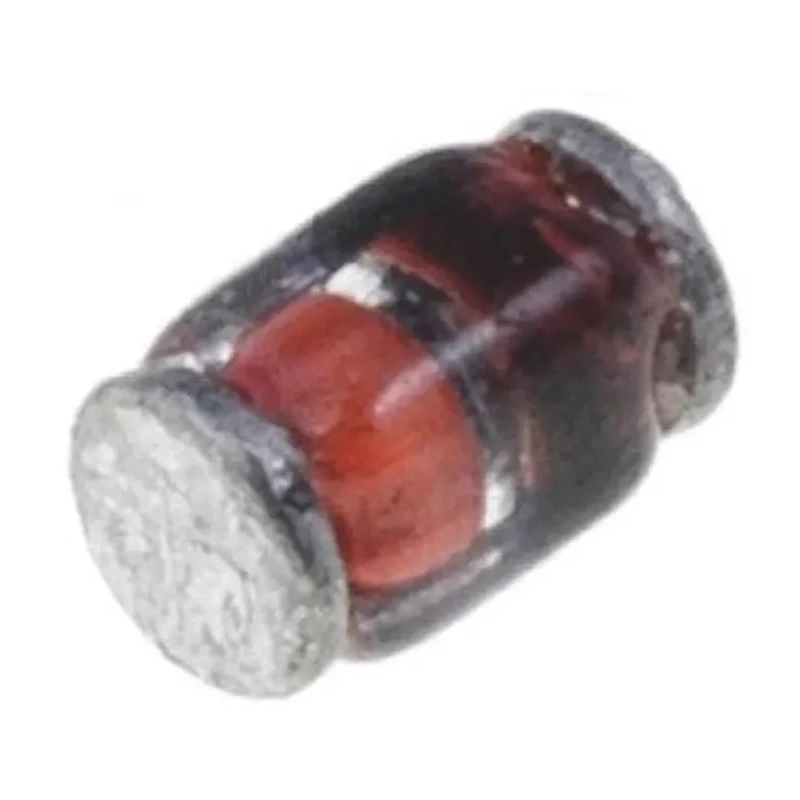

Vishay Silicon Junction Switching Diode, Single, 200 mA, 2-Pin MicroMELF Package, 100 V, 500 mW, Fast Switching MCL4148-TR

Name: Vishay Silicon Junction Switching Diode, Single, 200 mA, 2-Pin MicroMELF Package, 100 V, 500 mW, Fast Switching MCL4148-TR
Brand: Vishay
SKU: 218080
Price: 0.05 USD
Availability: InStock



Category Discrete Semiconductors Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	1.2mm
Brand	Vishay
Height	1.2mm
Length	2mm
Model	MCL4148-TR
Width	1.2mm
Mount Type	Surface
Series	MCL4148
Maximum Operating Temperature	175°C
Case	DO-204AL, molded epoxy over glass body
Package Type	MicroMELF
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Polarity	Color band denotes cathode end
Terminals	Matte tin plated leads, solderable per
Pin Count	2
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	2A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	8ns
Maximum Forward Current If	200mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V

Key Features

Features a superectifier structure ensuring high reliability.
Cavity-free glass-passivated junction providing stability.
Fast switching with peak reverse recovery time of 8 ns.
Low leakage current, typically less than 0.2 µA.
Maximum forward current of 200 mA and forward voltage up to 1 V.
Maximum power dissipation of 500 mW with surge current capability of 2 A.
Operating temperature range from -65°C to 175°C for robust use.
Compact MicroMELF package with dimensions approx. 2 mm length and 1.2 mm diameter.

Product Description

Vishay MCL4148-TR is a silicon junction switching diode configured as a single diode in a compact MicroMELF 2-pin package. It supports a maximum forward current of 200 mA, forward voltage of 1 V, and maximum peak reverse voltage of 100 V, optimized for fast switching applications. Its cavity-free glass-passivated junction enhances reliability and performance in demanding electrical environments.

This diode provides excellent surge current capability with a peak non-repetitive forward surge current of 2 A, and a low typical leakage current of under 0.2 µA, making it suitable for use in precision electronic circuits. Operating in a broad temperature range from -65°C up to 175°C, it withstands harsh industrial and commercial conditions.

The MicroMELF package with dimensions approximately 2 mm in length and 1.2 mm diameter provides a space-saving form factor suitable for surface mount technology (SMT). The diode terminals are matte tin plated and comply with robust soldering standards, ensuring ease of manufacturing and long term durability.

Typical applications include high voltage rectification of G2 grids in cathode ray tubes (CRTs) and televisions, as well as snubber circuits in camera flash units and other switching circuits requiring reliable, fast switching semiconductor devices.

Superectifier structure ensures enhanced device reliability. Cavity-free glass-passivated junction prevents contamination and damage. Fast switching time of 8 nanoseconds optimizes circuit response. Low leakage current for efficient operation.

High forward surge current capability protects against transient conditions. Wide operating temperature range ensures versatility. Compact DO-204AL molded epoxy case in MicroMELF format saves PCB space. Color band marking denotes cathode end for correct polarity orientation.

Vishay's MCL4148-TR diode is ideal for industrial electronic applications, laboratory use, consumer electronics manufacturing, and various other fields requiring precision semiconductor switching components. It meets commercial grade RoHS compliance and solderability standards aligned with JEDEC protocols.
