Vishay Silicon Junction Switching Diode Single 150 mA 2-Pin 100 V MicroMELF MCL4148-TR3

Free Delivery in India | Lowest Global Shipping Charges

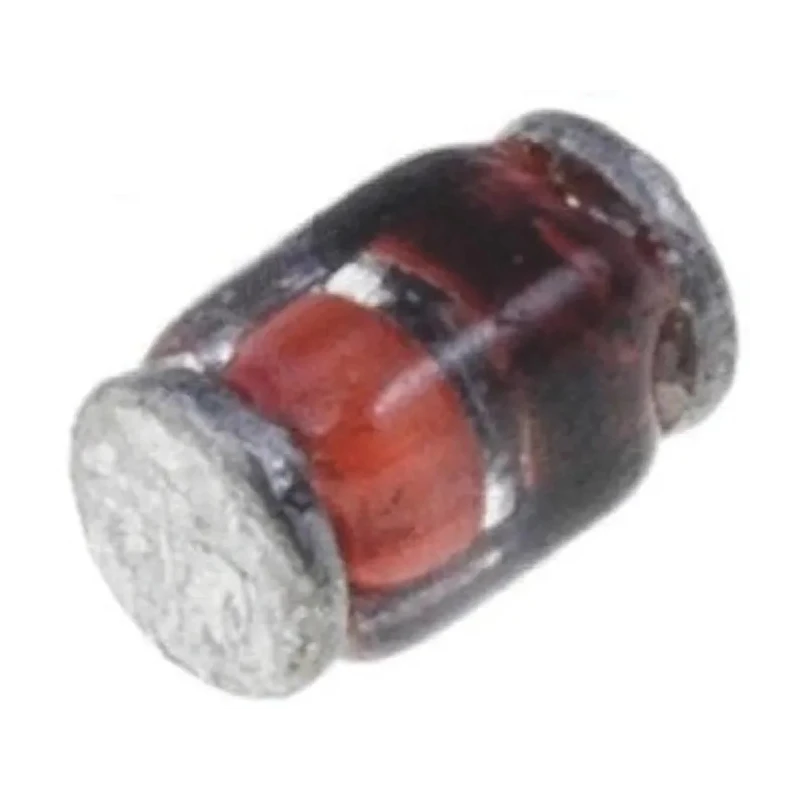

Vishay Silicon Junction Switching Diode Single 150 mA 2-Pin 100 V MicroMELF MCL4148-TR3

Name: Vishay Silicon Junction Switching Diode Single 150 mA 2-Pin 100 V MicroMELF MCL4148-TR3
Brand: Vishay
SKU: 218071
Price: 0.05 USD
Availability: InStock



Category Discrete Semiconductors Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	1.2mm
Brand	Vishay
Height	1.2mm
Length	2mm
Model	MCL4148-TR3
Width	1.2mm
Mount Type	Surface
Series	MCL4148
Maximum Operating Temperature	175°C
Case	DO-204AL, molded epoxy over glass body
Package Type	MicroMELF
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Polarity	Color band denotes cathode end
Terminals	Matte tin plated leads, solderable per
Pin Count	2
Maximum Power Dissipation Pd	100mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	2A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	8ns
Maximum Forward Current If	150mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V

Key Features

Single silicon junction diode in MicroMELF package.
Maximum forward current of 150 mA enables medium power applications.
Peak reverse voltage up to 100 V suits high voltage rectification.
Fast switching time of 8 ns reduces switching losses.
Low typical leakage current below 0.2 μA ensures energy efficiency.
Survives forward surge currents up to 2 A for durability.
Wide operating temperature range from -65°C to 175°C for harsh environments.
Glass passivated junction and molded epoxy package comply with industrial standards.

Product Description

Vishay MCL4148-TR3 is a high reliability silicon junction switching diode designed for surface mount technology with a MicroMELF (DO-204AL) package. The diode supports a maximum forward current of 150 mA and a maximum peak reverse repetitive voltage of 100 V. Its fast switching capability with an 8 ns peak reverse recovery time makes it suitable for high efficiency and fast switching applications.

Equipped with a cavity-free glass passivated junction and molded epoxy over glass body, this diode ensures durability and stable performance in industrial and electronic manufacturing environments. Its matte tin plated leads provide excellent solderability compliant with J-STD-002 standards. The diode’s operating temperature ranges from -65°C to 175°C, enabling use in demanding temperature conditions.

The device features a low leakage current typical IR < 0.2 μA and a high forward surge capability with the ability to withstand 2 A peak non-repetitive forward surge current. Polarity is clearly marked with a color band denoting the cathode end to facilitate correct installation.

Typical applications include high voltage rectification of G2 grid in CRT and TV sets, and snubber circuits in camera flash units where fast switching and reliability are critical. The MicroMELF compact 2-pin form factor supports space-saving designs in electronic assemblies.

Single silicon junction diode with MicroMELF surface mount package. 150 mA maximum forward current and 100 V peak reverse voltage for medium power circuits. Fast switching with 8 ns peak reverse recovery time. Low leakage current and robust forward surge capability.

Wide temperature range from -65°C to 175°C. Glass passivated junction and epoxy molding for high reliability. Matte tin plated leads suitable for soldering per standards. Color band for cathode marking ensures correct polarity installation.

Ideal for industrial, electronic manufacturing, and high voltage rectification use cases.

This diode from Vishay is a standard choice for industrial electronics, manufacturing, and electronic repair sectors. Explore other discrete semiconductor components in the EnvMart catalog for comprehensive solutions.
