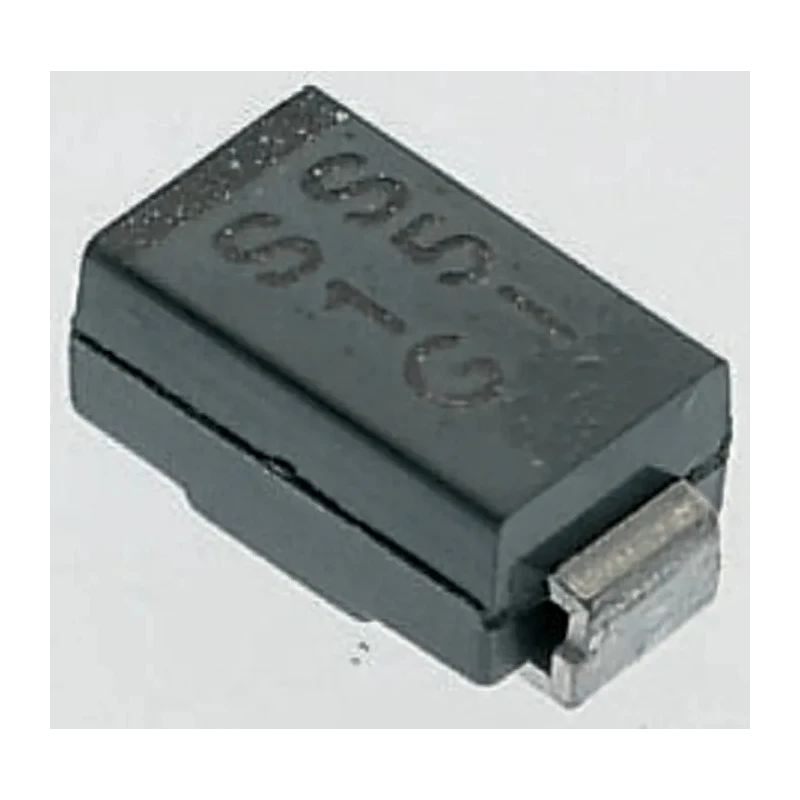

Vishay Bi-Directional Transient Voltage Suppressor 400 W, 2-Pin DO-214AC SMAJ33CA-E3/61

Vishay SMAJ33CA-E3/61 is a bi-directional transient voltage suppressor (TVS) designed for protection of sensitive electronic circuits against voltage spikes and transient surges. This device offers a peak pulse power dissipation of 400 W in a compact 2-pin DO-214AC (SMA) surface mount package, making it suitable for densely packed PCB layouts.

Featuring a single diode configuration, the TVS suppressor provides efficient voltage clamping by rapidly diverting transient current away from protected devices. Its minimum breakdown voltage is 36.7 V with a maximum reverse stand-off voltage of 33 V, ensuring effective suppression of transient events up to 53.3 V clamping voltage.

The SMAJ33CA-E3/61 operates reliably over a wide temperature range from -55°C to 150°C and supports a peak pulse current of 7.5 A. With a very low maximum reverse leakage current of 1 µA, it minimizes power consumption during normal operation. Compliance with the automotive AEC-Q101 standard confirms its suitability for automotive and industrial applications requiring elevated robustness.

This transient voltage suppressor is ideal for use in industrial machines, manufacturing equipment, automotive electronics, telecommunications, and power supply protection. Its surface mount design contributes to enhanced assembly efficiency and durable performance even in harsh environments.

Designed for surface mount applications with SMA package style. Single diode configuration for bi-directional voltage suppression. Minimum breakdown voltage of 36.7 volts and maximum stand-off voltage of 33 volts. Clamping voltage rating of 53.3 volts for transient suppression protection.

Operates between -55°C to 150°C for wide temperature tolerance. Peak pulse current capacity up to 7.5 amperes ensures robust performance. Extremely low leakage current of 1 microampere minimizes power loss. Certified to automotive standard AEC-Q101 ensuring high reliability.

Compact dimensions with 4.5 mm length, 2.79 mm width, and 2.09 mm height. Provides ESD protection suitable for sensitive electronic equipment.

Choose the Vishay SMAJ33CA-E3/61 transient voltage suppressor for reliable surge protection in industrial, automotive, and electronic applications. Browse the Electronics & Electricals Discrete Semiconductors category on EnvMart for a wide selection of high-quality semiconductor components.
