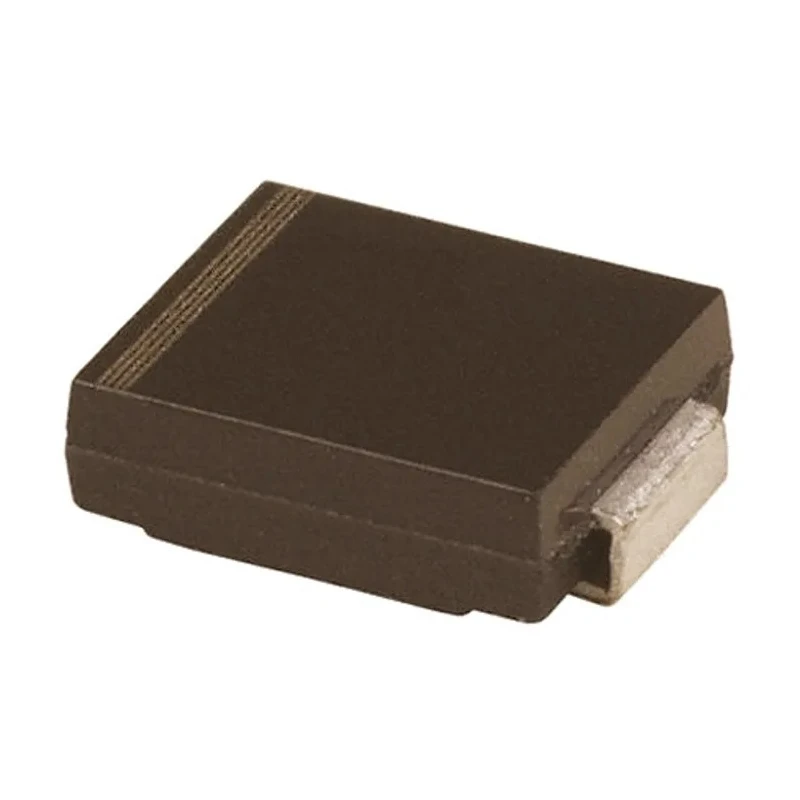

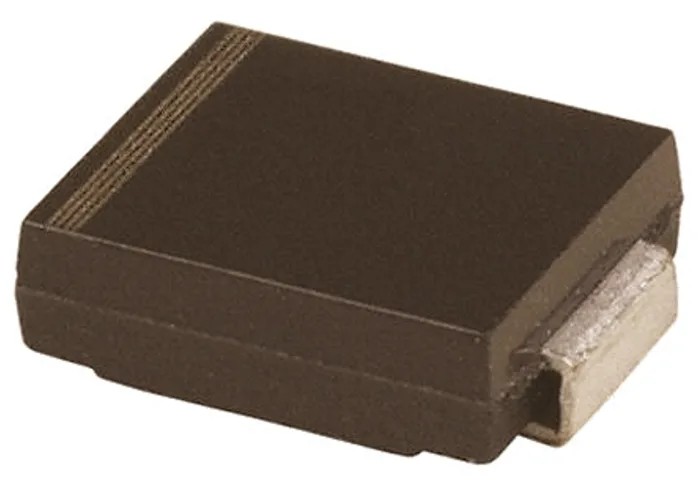

Vishay 1-Element Uni-Directional TVS Diode 1.5 kW, 2-Pin DO-214 SMCJ120A-E3/57T

Vishay SMCJ120A-E3/57T is a reliable 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed for surface mounting in a DO-214 package. It features a peak pulse power dissipation of 1.5 kW, providing robust protection against voltage spikes and transient surges in sensitive electronic circuits.

This diode maintains a minimum breakdown voltage of 133 V and a maximum reverse stand-off voltage of 120 V, making it highly effective in protecting circuits from high voltage transients. The clamping voltage is rated at 193 V, ensuring that voltages are kept within safe limits during surge events.

The SMCJ120A-E3/57T supports a peak pulse current of 7.8 A, safeguarding sensitive components while exhibiting excellent Electrostatic Discharge (ESD) protection. It operates reliably in harsh environments with an operating temperature range from -55°C up to 150°C.

Compact physical dimensions (7.11 mm length, 6.22 mm width, and 2.42 mm height) enable efficient integration into compact circuit boards. The device complies with the automotive AEC-Q101 standard, ensuring durability and reliability for automotive and industrial applications.

These TVS Diodes are extensively used in industrial electronics, automotive electronics, power supplies, HVAC controls, manufacturing equipment, and water treatment systems to mitigate damage caused by voltage transients and spikes. The single-element, unidirectional configuration simplifies protection in DC circuits.

This diode features a minimum breakdown voltage of 133 V ensuring reliable overvoltage protection. Designed with a unidirectional configuration for effective transient voltage suppression. Offers a clamping voltage of 193 V and a maximum reverse stand-off voltage of 120 V.

Supports a maximum peak pulse current of 7.8 A with excellent ESD protection capability. Operates efficiently across a temperature range from -55°C to 150°C. Compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height.

Fully compliant with automotive standard AEC-Q101 for high reliability applications. Ideal for use in electronic components for transient voltage suppression and circuit protection.

This Vishay TVS diode model SMCJ120A-E3/57T is a dependable transient voltage suppressor recommended for professional manufacturing, repair, and design engineers seeking robust overvoltage protection solutions.
