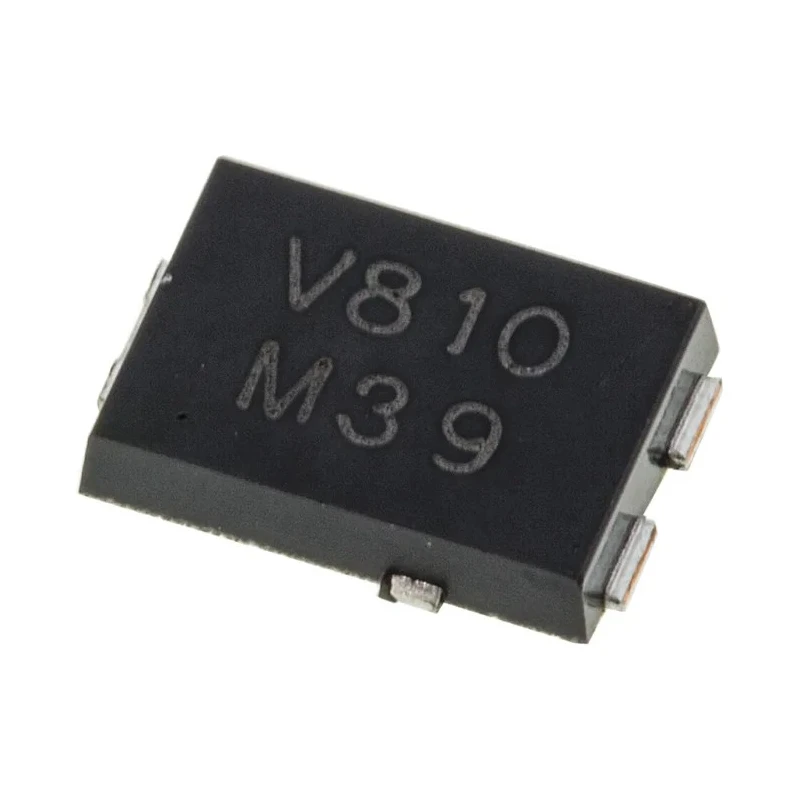

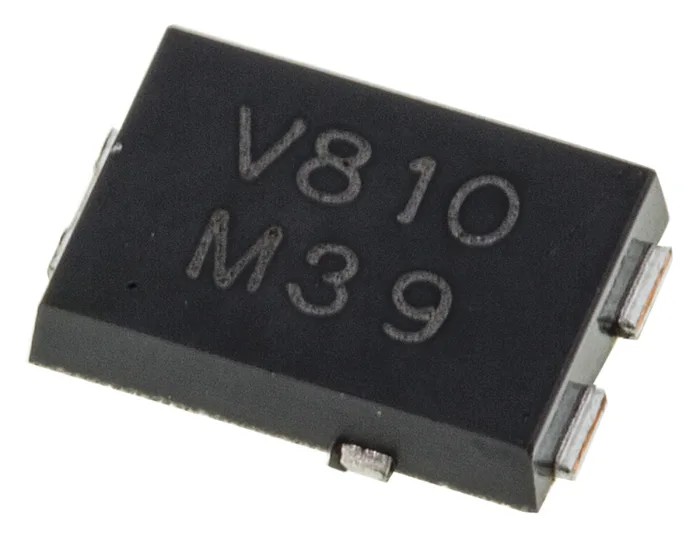

Vishay Schottky Diode 100 V 8 A Surface Mount 3-Pin TO-277 Package V8P10-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 6.65mm |
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.35mm |
| Model | V8P10-M3/86A |
| Width | 6.15mm |
| Mount Type | Surface |
| Series | V8PX |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 70μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 680mV |
Key Features
- Patented trench MOS barrier structure ensures low forward voltage drop and fast switching speeds.
- Package type TO-277 with 3 pins designed for efficient surface mounting.
- Operating temperature range from -40°C to 150°C for reliable performance in harsh conditions.
- Peak non-repetitive forward surge current rated at 150 A allowing high transient handling.
- Compact dimensions with length 4.35 mm, width 6.15 mm, height 1.2 mm, and diameter 6.65 mm.
- Peak reverse current of 70 μA minimizing leakage in reverse bias.
- Suitable for use in switched-mode power supplies and DC/DC converters requiring high efficiency.
- Automotive standard certified to AEC-Q101 for automotive electronics applications.
Product Description
Vishay V8P10-M3/86A Schottky Diode is a surface mount semiconductor device engineered with a patented trench MOS barrier structure to provide improved efficiency, high power density, and low forward voltage drop.
This diode supports a maximum continuous forward current of 8 A and a peak reverse repetitive voltage of 100 V, making it suitable for high-performance rectification tasks.
The TO-277 package with 3 pins facilitates easy integration into surface mount applications. Its compact physical size with length 4.35 mm, width 6.15 mm, and height 1.2 mm is ideal for dense PCB layouts.
The diode operates reliably within temperature ranges spanning from -40°C to 150°C, supporting industrial and automotive environments. Its peak non-repetitive forward surge current rating of 150 A enables it to withstand high transient currents without damage.
Featuring a low maximum forward voltage of 680 mV and a minimal peak reverse current of 70 μA, it efficiently reduces power dissipation and leakage losses. Certified to automotive standard AEC-Q101, this Schottky diode is qualified for use in automotive and other demanding electronic applications.
This device is especially suited for AC/DC switched-mode power supplies and DC/DC converters, where fast switching and minimal stored charge are critical. Patented trench MOS barrier structure ensures enhanced efficiency.
Compact 3-pin TO-277 surface mount package allows versatile board integration. Wide operating temperature range: -40°C to 150°C supports diverse applications. High surge current capability of 150 A protects against transient stresses.
Low forward voltage drop of 680 mV reduces overall power loss. Peak reverse current limited to 70 μA minimizes leakage current. Automotive grade with AEC-Q101 certification for high reliability. Ideal for switched-mode power supplies and DC/DC converter designs.
Explore the range of Vishay Schottky diodes on EnvMart for reliable semiconductor components tailored to your electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay V8P10-M3/86A Schottky diode is 8 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The diode comes in a TO-277 package type with a 3-pin configuration, designed for surface mounting.
It operates reliably within a temperature range of -40°C to 150°C.
The maximum forward voltage drop is 680 mV.
The peak non-repetitive forward surge current is rated at 150 A, allowing it to handle high transient currents.
The peak reverse current is limited to 70 μA, minimizing leakage in reverse bias.
It is suitable for use in switched-mode power supplies and DC/DC converters, where high efficiency and fast switching are required.
The dimensions of the diode are 4.35 mm in length, 6.15 mm in width, and 1.2 mm in height.
Yes, it is certified to the automotive standard AEC-Q101, making it suitable for automotive electronics applications.
This diode is a Schottky rectifier, known for its low forward voltage drop and fast switching speeds.
The country of origin for this diode is China.
