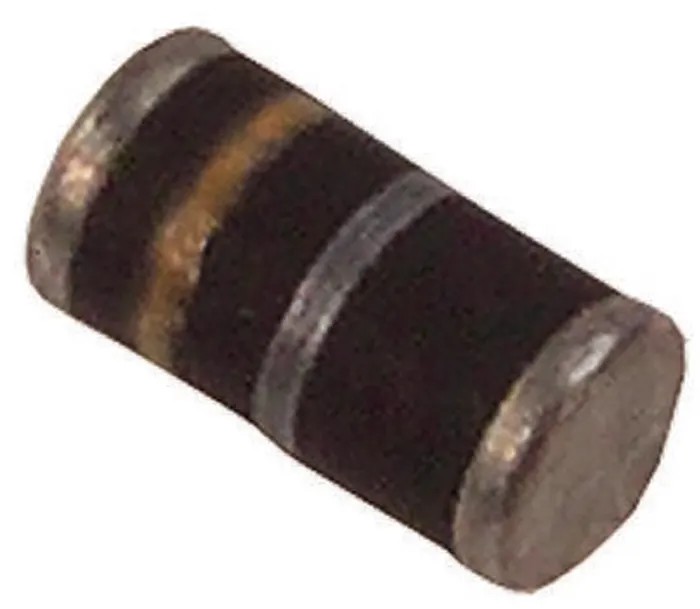

Vishay General Purpose Diode 1600 V 1 A Surface Mount DO-213AB GL41Y-E3/96

Free Delivery in India | Lowest Global Shipping Charges

Vishay General Purpose Diode 1600 V 1 A Surface Mount DO-213AB GL41Y-E3/96

Name: Vishay General Purpose Diode 1600 V 1 A Surface Mount DO-213AB GL41Y-E3/96
Brand: Vishay
SKU: 218022
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	2.67mm
Brand	Vishay
Height	2.67mm
Length	5.2mm
Model	GL41Y-E3/96
Width	2.67mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	DO-213AB
Minimum Operating Temperature	-65°C
Standards/Approvals	AEC-Q101, UL 94 V-0, RoHS
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	1600V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.2V

Key Features

The diode is in a surface mount DO-213AB package.
It has a maximum forward voltage of 1.2 V, ensuring efficient power rectification.
The package dimensions are 2.67 mm in height, width, and diameter with a length of 5.2 mm.
Operates over a temperature range from -65°C to 175°C, suitable for harsh conditions.
Peak non-repetitive forward surge current is 30 A, allowing for transient load handling.
The diode configuration is single and designed for standard recovery applications.
Complies with automotive standard AEC-Q101 and UL 94 V-0 flame retardance, RoHS compliant.
The peak reverse current is 10 μA, ensuring minimal leakage.

Product Description

Vishay GL41Y-E3/96 General Purpose Diode is a surface mount semiconductor device designed for reliable power rectification with a peak repetitive reverse voltage of 1600 V and continuous forward current rating of 1 A. Packaged in the industry-standard DO-213AB format, it combines robust electrical performance with compact size, measuring 2.67 mm in height and diameter, and 5.2 mm in length.

This diode features a maximum forward voltage drop of 1.2 V, helping to reduce power loss and improve efficiency in circuits. It supports a wide operating temperature range from -65°C to 175°C, making it suitable for demanding industrial and automotive environments. The device can handle peak non-repetitive forward surge currents up to 30 A, providing resilience against transient electrical loads.

The diode’s single configuration and standard recovery characteristics make it ideal for general-purpose applications in power supplies, switching regulators, and other electronic circuits.

The device is surface mountable with a DO-213AB package style. Peak reverse current is minimal at 10 μA, ensuring efficiency and low leakage. Compliant with automotive and environmental standards, suitable for rigorous use cases.

Dimensions allow for compact circuit designs and ease of integration. Reliable in high voltage and transient surge conditions. This diode is widely applied in industrial automation, automotive electronics, power conversion systems, and electronic manufacturing assemblies.
