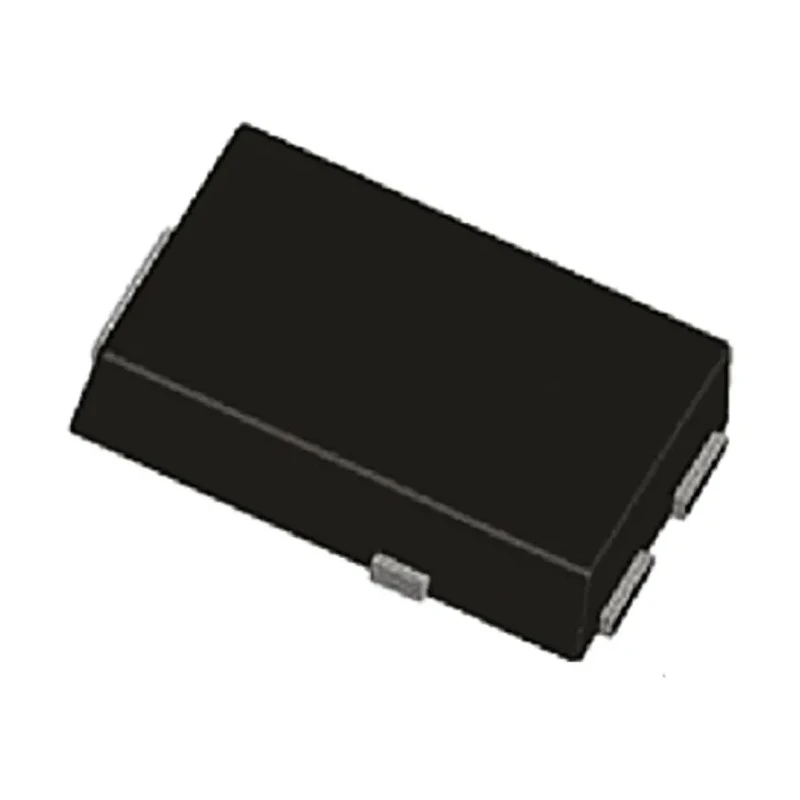

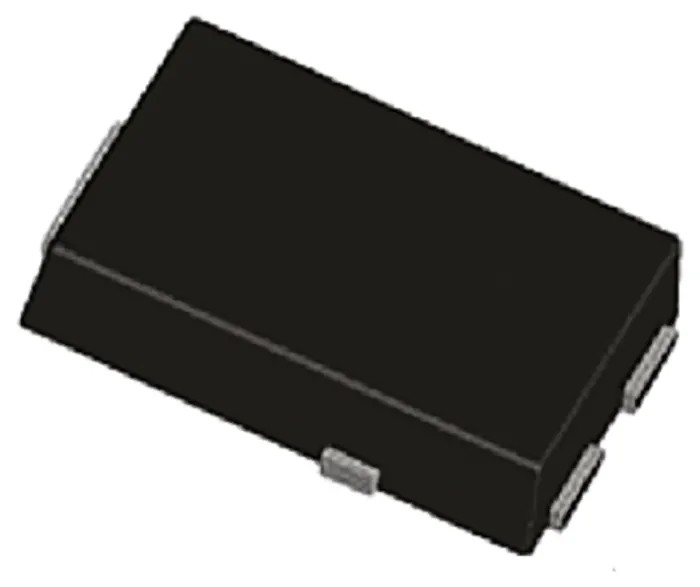

Vishay Schottky Diode Single 3-Pin Surface Mount TO-277 Package 90 V 5 A SS5P9-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.35mm |
| Model | SS5P9-M3/86A |
| Width | 6.15mm |
| Mount Type | Surface |
| Series | SS5P9 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 90V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 15μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.65V |
Key Features
- Low forward voltage drop minimizes power loss during operation.
- Fast switching capability suitable for efficient rectification tasks.
- Peak reverse repetitive voltage of 90 V for reliable voltage blocking.
- Maximum continuous forward current capacity of 5 A ensures robust current handling.
- Compact 3-pin TO-277 surface mount package for efficient PCB integration.
- Wide operating temperature range from -55°C to 150°C for durability in various environments.
- Maximum forward voltage of 0.65 V reduces thermal dissipation.
- Peak non-repetitive surge current up to 150 A allows handling transient surges.
Product Description
Vishay SS5P9-M3/86A is a high-performance Schottky diode designed for fast switching and low power loss applications. This diode features a single diode configuration with a 3-pin TO-277 surface mount package, optimized for power electronics and rectification tasks requiring efficient energy conversion and minimal forward voltage drop.
With a maximum continuous forward current rating of 5 A and a peak reverse repetitive voltage of 90 V, this diode is suitable for a wide range of industrial, electronic, and power supply applications. It provides reliable operation within the temperature range of -55°C to 150°C, ensuring durability in demanding environments.
The device's maximum forward voltage of 0.65 V and peak non-repetitive forward surge current rating of 150 A make it well-suited for handling transient loads and reducing heat generation during operation. Its compact dimensions (height 1.2 mm, length 4.35 mm, width 6.15 mm) support space-efficient PCB designs and surface mounting techniques.
Manufactured in China, the Vishay SS5P9-M3/86A diode meets quality demands for semiconductor components used in power rectifiers, switching power supplies, and industrial machinery. It is particularly applicable in laboratory, manufacturing, and commercial electronics contexts that require rugged semiconductor devices with superior switching speeds and low forward voltage.
Low forward voltage drop minimizes power loss during operation. Fast switching capability suitable for efficient rectification tasks. Peak reverse repetitive voltage of 90 V for reliable voltage blocking. Maximum continuous forward current capacity of 5 A ensures robust current handling.
Compact 3-pin TO-277 surface mount package for efficient PCB integration. Wide operating temperature range from -55°C to 150°C for durability in various environments. Maximum forward voltage of 0.65 V reduces thermal dissipation.
Peak non-repetitive surge current up to 150 A allows handling transient surges. Precision manufacturing with pin count of 3 and single diode configuration. Manufactured to high-quality standards in China. Explore more Vishay semiconductors and Schottky diode solutions in the Electronics & Electricals category at EnvMart for your industrial and laboratory needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 5 A, ensuring robust current handling capabilities.
The peak reverse repetitive voltage rating of this model is 90 V, providing reliable voltage blocking.
The dimensions of the TO-277 package are 1.2 mm in height, 4.35 mm in length, and 6.15 mm in width.
This diode operates within a temperature range of -55°C to 150°C, making it suitable for various environments.
The maximum forward voltage of this diode is 0.65 V, which minimizes thermal dissipation and power loss during operation.
The peak non-repetitive forward surge current rating is up to 150 A, allowing it to handle transient surges effectively.
This model supports surface mounting, optimized for efficient PCB integration.
The SS5P9-M3/86A has a pin count of 3, designed for a single diode configuration.
This Schottky diode is suitable for power rectifiers, switching power supplies, and industrial machinery applications.
A low forward voltage drop reduces power loss and enhances efficiency during the rectification process.
The Vishay SS5P9-M3/86A is manufactured in China, adhering to quality standards for semiconductor components.
This diode is a Schottky rectifier, known for its fast switching capabilities and low power loss.
