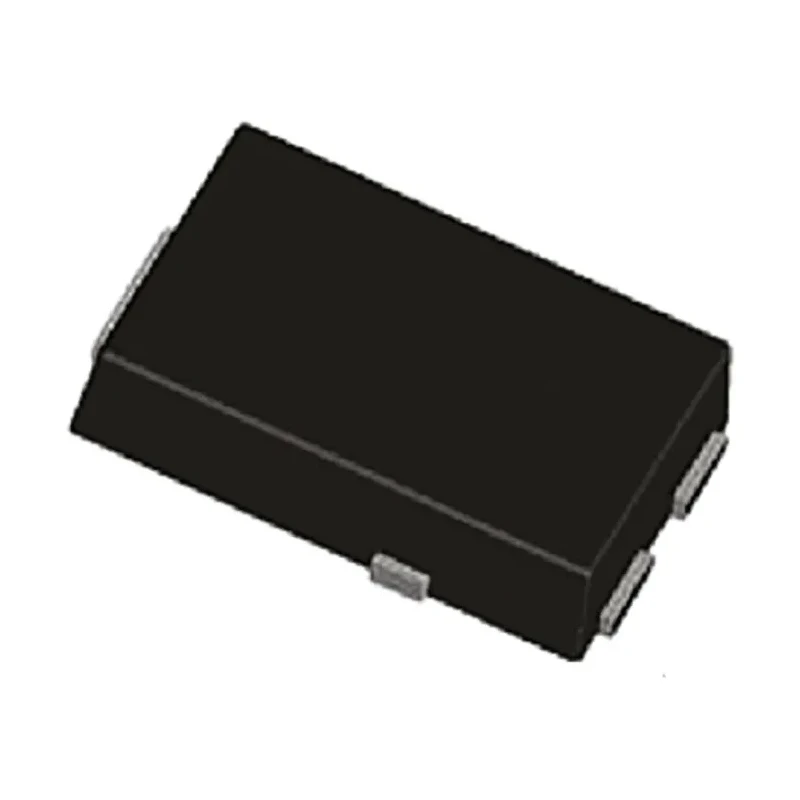

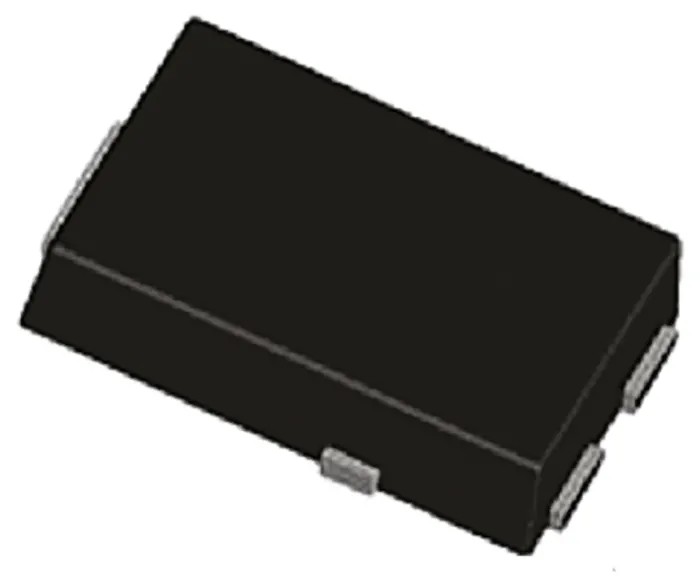

Vishay Schottky Diode 90 V 5 A 3-Pin TO-277 SS5P9-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.35mm |
| Model | SS5P9-M3/86A |
| Width | 6.15mm |
| Mount Type | Surface |
| Series | SS5P9 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 90V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 15μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.65V |
Key Features
- Maximum continuous forward current of 5 A ensures robust performance.
- Peak reverse repetitive voltage rating of 90 V provides reliable blocking capability.
- Equipped with a 3-pin TO-277 package for surface mounting.
- Features a low maximum forward voltage of 0.65 V for energy efficiency.
- Operates within temperature range from -55°C to 150°C for versatility.
- Peak non-repetitive forward surge current rating of 150 A for transient conditions.
- Designed without automotive standard certification but suitable for general industrial use.
Product Description
Vishay SS5P9-M3/86A Schottky Diode is a discrete semiconductor designed for efficient rectification with minimal forward voltage drop and rapid switching capabilities. This diode features a 3-pin TO-277 surface mount package suitable for compact assembly on circuit boards.
This diode supports a maximum continuous forward current of 5 A and can withstand peak reverse repetitive voltages of up to 90 V, making it suitable for power management and rectification tasks in electronic devices.
Its low forward voltage drop of 0.65 V reduces power dissipation, enhancing overall efficiency. The device operates reliably within a broad temperature range from -55°C to 150°C, ensuring stability for industrial applications under varying environmental conditions.
The peak non-repetitive forward surge current of 150 A provides resilience against occasional high transient currents. With compact physical dimensions - 1.2 mm height, 4.35 mm length, and 6.15 mm width - it fits well into space-constrained designs.
While this diode does not carry automotive standard certification, it is ideal for industrial, electronic component manufacturing, power supply circuits, and various semiconductor applications that require fast switching and low power loss.
Maximum continuous forward current of 5 A. Peak reverse repetitive voltage is 90 V. Surface mount TO-277 3-pin package. Low maximum forward voltage of 0.65 V. Operating temperature range from -55°C to 150°C. Peak non-repetitive forward surge current of 150 A.
Compact dimensions for space-saving designs. Manufactured in China. For detailed technical specifications, design files, and applications, exploring Vishay's semiconductor diode range on EnvMart is recommended.
Explore more products in our Schottky Diodes & Rectifiers category.
