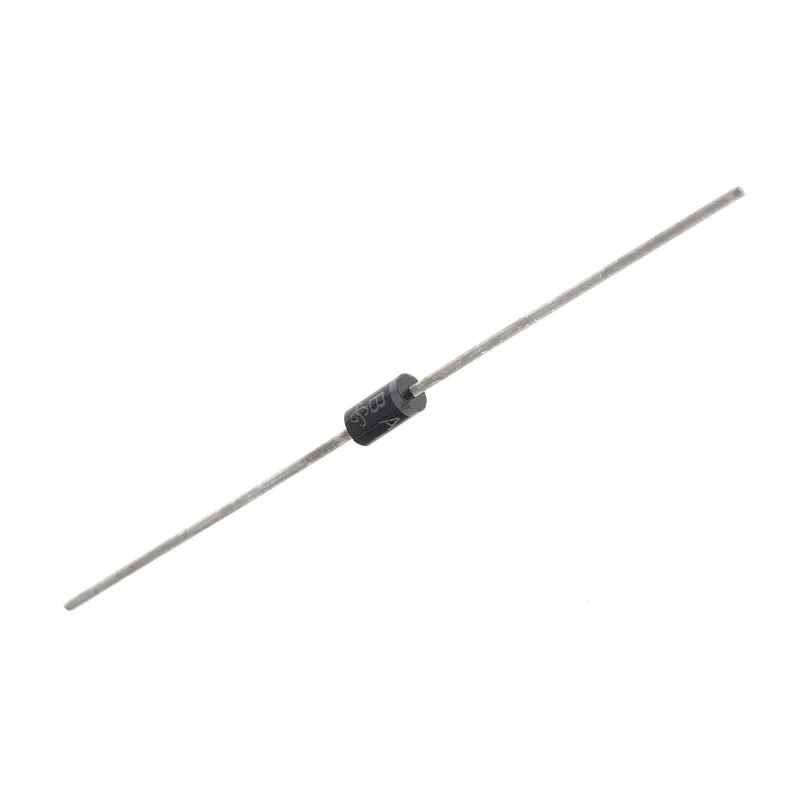

Vishay Switching Diode Single Silicon Junction 1 A 1000 V DO-204AL BA159-E3/54

Vishay BA159-E3/54 Switching Diode is a silicon junction diode designed for fast recovery rectification with a maximum continuous forward current of 1 ampere and a high reverse voltage rating of 1000 volts. Packaged in a DO-204AL 2-pin through hole package, it measures 5.2 mm in length and 2.7 mm in both width and height, making it compact and suitable for dense PCB layouts.

This diode features a peak reverse recovery time of 500 nanoseconds, enabling efficient switching in power electronics, industrial rectifiers, and protection circuits. It can withstand peak surge currents up to 20 amperes non-repetitively, ensuring robustness during transient events.

Operating temperature ranges from -65°C to 125°C, allowing it to maintain reliable performance in demanding environments including automotive and industrial applications without automotive certification. The low forward voltage of 1.3 volts helps minimize conduction losses, enhancing overall system efficiency.

The Vishay BA159-E3/54 is widely used in power supplies, inverter circuits, and fast switching rectifier applications where rapid switching and thermal stability are critical. Its through-hole package supports easy mounting and replacement in electronic assemblies.

Key technical benefits include fast recovery time, high surge current capability, wide temperature tolerance, and compact dimensions. It represents a reliable choice for designers requiring durable and efficient diode components.

The diode has a compact DO-204AL package with 2 pins for through-hole mounting. It operates efficiently at high speeds with a peak reverse recovery time of 500 nanoseconds. The device supports a peak non-repetitive forward surge current of 20 amperes.

Operational temperature ranges from -65°C up to a maximum of 125°C, suitable for harsh environments. Dimensions include a length of 5.2 mm, width and height of 2.7 mm each, facilitating integration into electronic circuits.

Maximum forward voltage drop is 1.3 volts ensuring low power dissipation. The diode is a versatile component for industrial, power supply, and electronic equipment applications requiring fast switching capabilities. Explore more Vishay semiconductor components and electronic devices to support your industrial and laboratory projects with trusted quality and performance on EnvMart.
