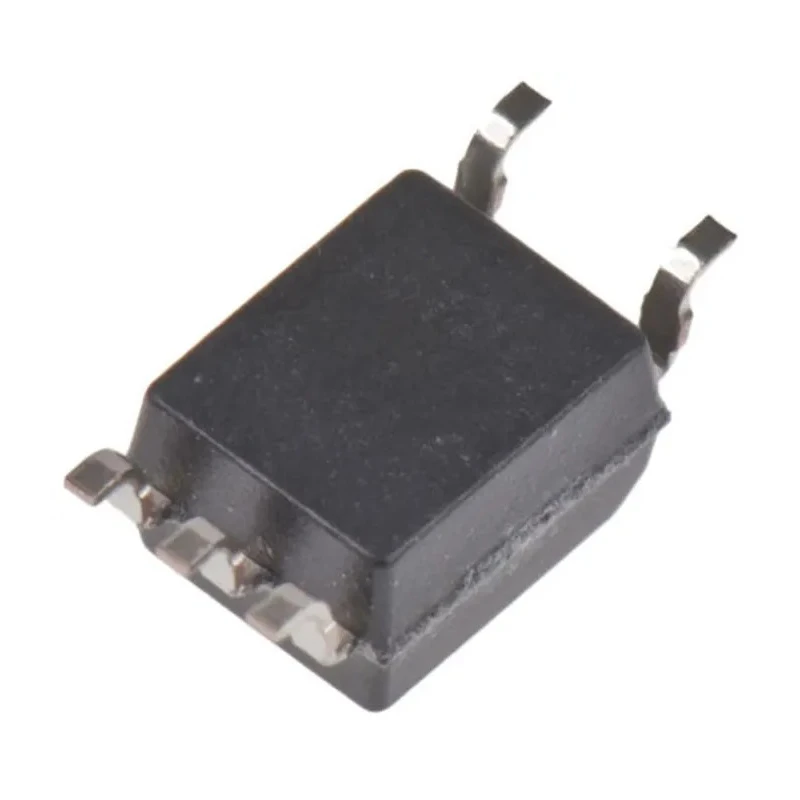

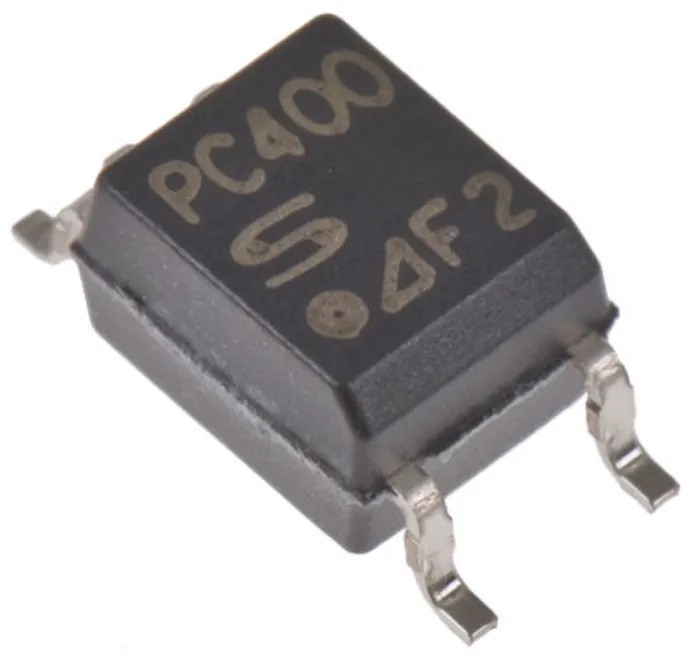

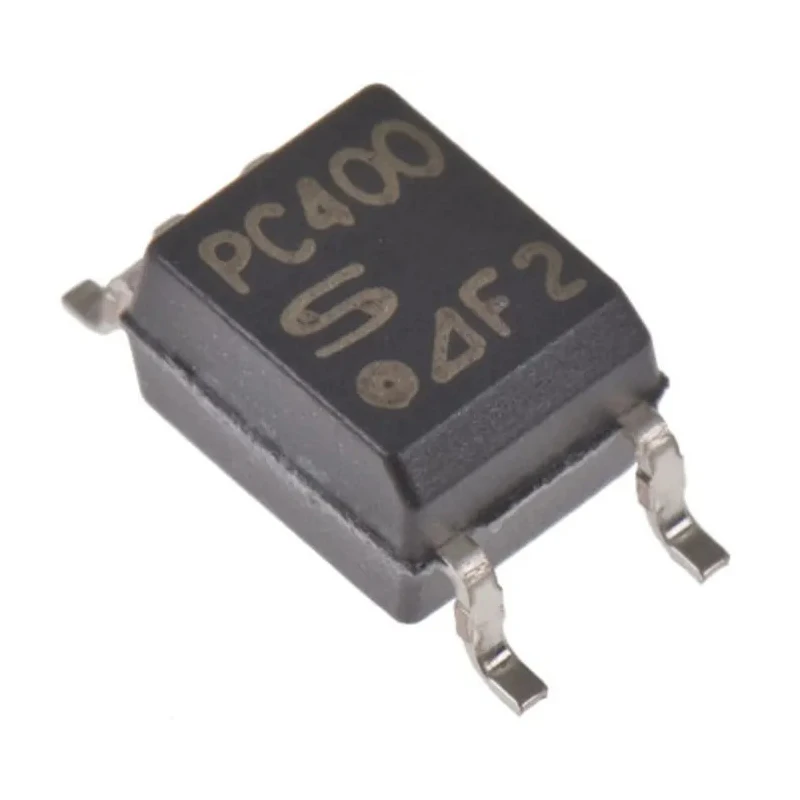

Sharp AC Input Optocoupler Surface Mount 5-Pin Mini-Flat PC400J00000F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sharp |
| Model | PC400J00000F |
| Mount Type | Surface |
| Output type | Transistor |
| Series | PC400 |
| Maximum Operating Temperature | 85°C |
| Package Type | Mini-Flat |
| Minimum Operating Temperature | -25°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 5 |
| Input Current Type | AC |
| Typical Rise Time | 0.1μs |
| Typical Fall Time | 50ns |
| Isolation Voltage | 3750V |
Key Features
- Features AC input with a maximum current of 50mA.
- Offers a high isolation voltage of 3750V for safe signal transfer.
- Utilizes transistor output with logic output capability.
- Has a typical rise time of 0.1 microseconds and a fall time of 50 nanoseconds.
- Suitable for operating temperatures ranging from -25°C to 85°C.
- Compact 5-pin mini-flat surface mount package ensures easy PCB integration.
- Designed for single channel AC input applications.
- Maximum forward voltage is rated at 1.4 volts.
Product Description
The Sharp PC400J00000F is a high-performance AC input optocoupler designed for electronic components requiring reliable signal isolation and switching. This surface mount device employs a 5-pin mini-flat package, facilitating compact and efficient PCB layout in a variety of electronics applications.
Designed with a maximum input current of 50mA and an isolation voltage of 3750V, the PC400J00000F ensures robust electrical isolation suitable for industrial and commercial electronic circuits. The transistor output type with logic output capability allows seamless integration with digital control systems.
The optocoupler features rapid response times, with a typical rise time of 0.1 microseconds and a fall time of 50 nanoseconds, making it suitable for fast switching applications. Its operating temperature range from -25°C to 85°C ensures reliable performance in diverse environmental conditions.
This single-channel device operates with a maximum forward voltage of 1.4 volts and comes in the PC400 series, known for consistent quality and durability. The surface mount 5-pin mini-flat package supports modern manufacturing techniques and enhances assembly efficiency.
Features AC input with a maximum input current of 50mA. High isolation voltage of 3750V for electrical safety. Transistor output with logic output capability. Typical rise time of 0.1μs and fall time of 50ns for fast switching.
Operating temperature from -25°C to 85°C. Compact 5-pin mini-flat surface mount package. Single channel device, part of PC400 series. Maximum forward voltage rated at 1.4V. Does not comply with automotive standards.
This optocoupler is ideal for industrial electronics, power supply isolation, and signal transmission systems where electrical isolation and fast response are critical. Its compact form factor and surface mount design enable its use in high-density electronic assemblies commonly found in consumer electronics, manufacturing equipment, and control systems.
Explore the Sharp product line and related electronic components in the Optocoupler category at EnvMart for reliable industrial-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this optocoupler is 50mA.
This model features a high isolation voltage of 3750V, ensuring safe signal transfer.
The typical rise time for the PC400J00000F is 0.1 microseconds.
The typical fall time for this unit is 50 nanoseconds, suitable for fast switching applications.
It operates within a temperature range of -25°C to 85°C.
This optocoupler is a single-channel device.
It utilizes a transistor output type with logic output capability.
This model comes in a compact 5-pin mini-flat surface mount package.
The maximum forward voltage is rated at 1.4 volts.
The country of origin for this optocoupler is India.
It is suitable for industrial electronics, power supply isolation, and signal transmission systems.
No, this optocoupler does not comply with automotive standards.
