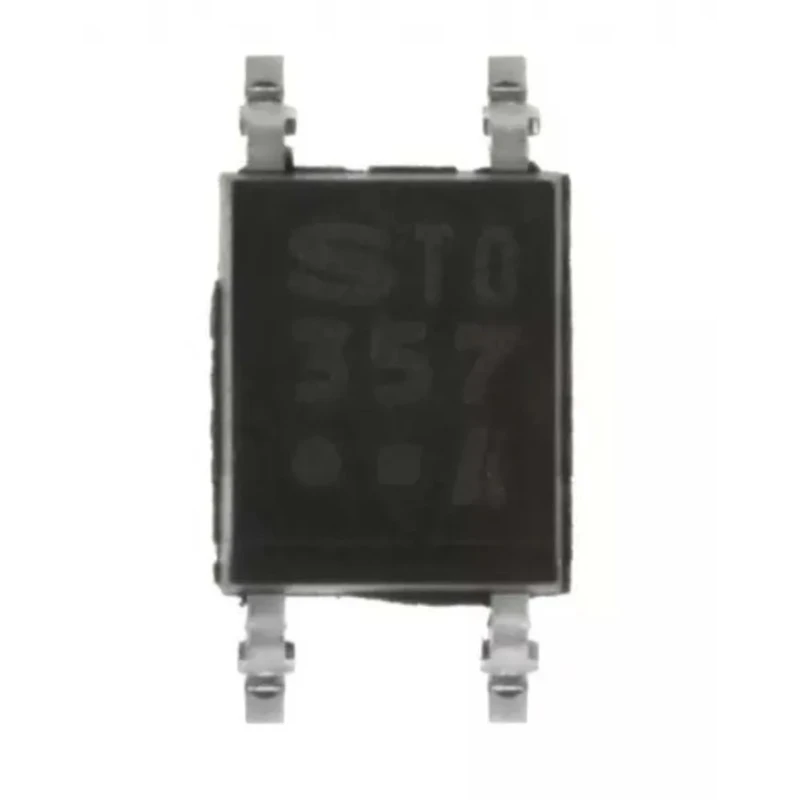

Sharp AC Input Optocoupler, Surface Mount, 4-Pin Mini-Flat Package PC357N1J000F

Sharp PC357N1J000F AC Input Optocoupler is a high-performance semiconductor device designed for electrical isolation and signal transfer applications in electronic circuits. This optocoupler incorporates an IRED optically coupled to a phototransistor within a compact 4-pin Mini-Flat surface mount package, making it suitable for modern PCB layouts requiring minimal space.

The device features a high isolation voltage of 3.75kV rms between input and output, ensuring robust electrical separation in sensitive applications. The output transistor is capable of withstanding a collector-emitter voltage of up to 80V, providing durability and performance stability.

With an input current type of AC and a maximum allowable input current of 50mA, this component is optimized for alternating current signal interfacing. The current transfer ratio (CTR) varies between 50% to 600% at an input current of 5mA and a collector-emitter voltage of 5V, allowing precise signal transfer efficiency in different operating conditions.

Operating temperature ranges from -30°C to 100°C, making it appropriate for demanding industrial, laboratory, and commercial electronic applications. The typical rise time of 4 microseconds and fall time of 3 microseconds support fast signal switching essential for timing-sensitive circuits.

The optocoupler is packaged in a double transfer mold 4-pin Mini-Flat package that is ideal for flow soldering processes in automated manufacturing environments. It complies with the RoHS environmental directive, highlighting its eco-friendly design and manufacture.

Typical use cases include industrial control equipment, power supplies, microprocessor system interfacing, and other electronic systems requiring reliable isolation between sections of circuitry to prevent voltage spikes and noise interference.

Sharp’s PC357 series optocouplers are known for their performance consistency and quality, with this model made in Indonesia, ensuring adherence to international manufacturing standards.

Explore comprehensive selections of Optocouplers and electronic components on EnvMart for your industrial and commercial applications. Features a high isolation voltage of 3.75kV rms for input-output separation. Includes a phototransistor output type ensuring reliable switching performance.

Designed for an input current maximum of 50mA with AC input current type. Supports a maximum collector-emitter voltage of 80V for robust operation. Current Transfer Ratio (CTR) ranges from 50% to 600% at 5mA input current providing precise control.

Operational temperature range from -30°C to 100°C suits diverse industrial environments. Compact double transfer mold 4-pin Mini-Flat package ideal for flow soldering. Typical rise and fall times are 4μs and 3μs respectively for fast response.

Compliant with RoHS directive ensuring environmental safety. Manufactured in Indonesia, ensuring quality and reliability.
