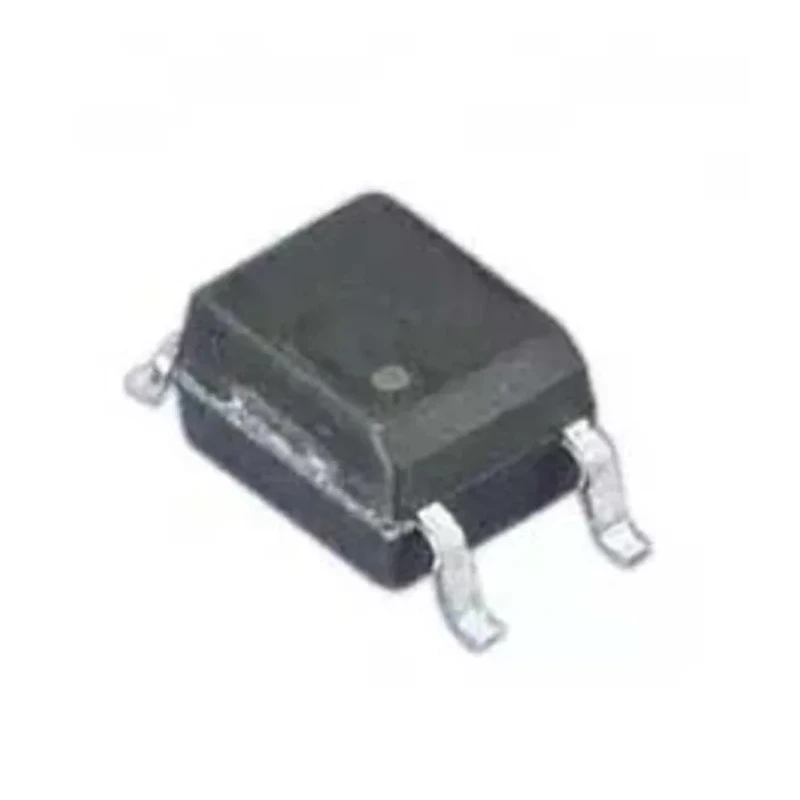

Sharp AC Input 2-Channel Optocoupler Surface Mount Mini-Flat 4-Pin PC354NJ0000F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sharp |
| Model | PC354NJ0000F |
| Packaging | Taping |
| Mount Type | Surface |
| Series | PC354NJ0000F |
| Maximum Operating Temperature | 100°C |
| Package Type | Mini-Flat |
| Minimum Operating Temperature | 30°C |
| Maximum input current | 50mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL1577 |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | AC |
| Typical Rise Time | 4μs |
| Maximum Current Transfer Ratio | 400% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 20% |
| Isolation Voltage | 3.75kV |
| High collector-emitter voltage (VCEO | 80V) |
| High isolation voltage between input and output (Viso(rms) | 3.75kV) |
Key Features
- The device features a 2-channel configuration suitable for multiple signal isolation.
- It has a maximum forward voltage of 1.4V ensuring efficient input performance.
- The optocoupler supports an input current of up to 50mA with an AC current type.
- High isolation voltage of 3.75kV between input and output provides enhanced safety.
- Typical rise and fall times are 4µs and 3µs respectively for fast signal response.
- It operates reliably in a temperature range from 30°C to 100°C.
- The package type is mini-flat optimized for surface mounting applications.
- High collector-emitter voltage capability of 80V allows compatibility with various circuits.
Product Description
Sharp PC354NJ0000F is a high-performance AC input optocoupler designed for optoelectronic isolation in electronic circuits. It features a 2-channel phototransistor output and is housed in a compact 4-pin mini-flat surface mount package, ideal for compact PCB layouts.
Engineered with a high isolation voltage of 3.75kV rms, this optocoupler ensures safe electrical separation between input and output sections, suitable for industrial, electronic, and power applications. The device supports a maximum forward voltage of 1.4V and an input current up to 50mA AC, making it adaptable for various signal isolation needs.
Its fast switching characteristics include typical rise and fall times of 4μs and 3μs respectively, allowing responsive signal processing in automation systems, control circuitry, and communication devices. The high collector-emitter voltage rating of 80V further increases the operational reliability in demanding environments.
The PC354NJ0000F series complies with UL1577 standards and is RoHS directive compliant, ensuring quality and environmental safety. Its double transfer mold packaging supports reliable flow soldering processes during manufacturing.
2-channel optocoupler for multi-signal isolation. Surface mount 4-pin mini-flat package suitable for compact layouts. Maximum input forward voltage of 1.4V and AC input current type. High isolation voltage of 3.75kV rms for electrical safety.
Fast typical rise and fall times of 4μs and 3μs respectively. Operating temperature from 30°C to 100°C for extended durability. High collector-emitter voltage of 80V enhances circuit compatibility. Compliant with UL1577 and RoHS standards for reliability and environment.
The Sharp PC354NJ0000F optocoupler is ideal for industrial electronics, automation systems, power supplies, and other applications requiring efficient signal isolation with high reliability. Explore more optoelectronic components and Optocouplers on EnvMart for diverse industrial and electronic design needs.
