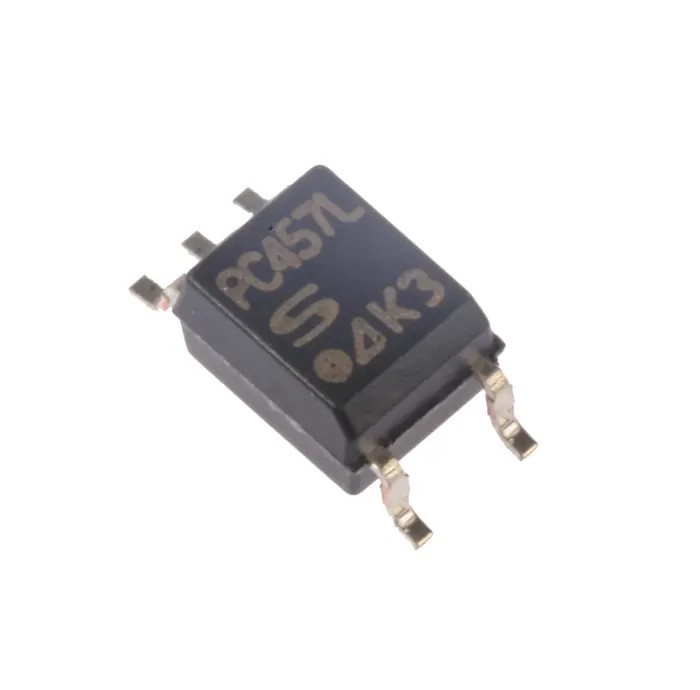

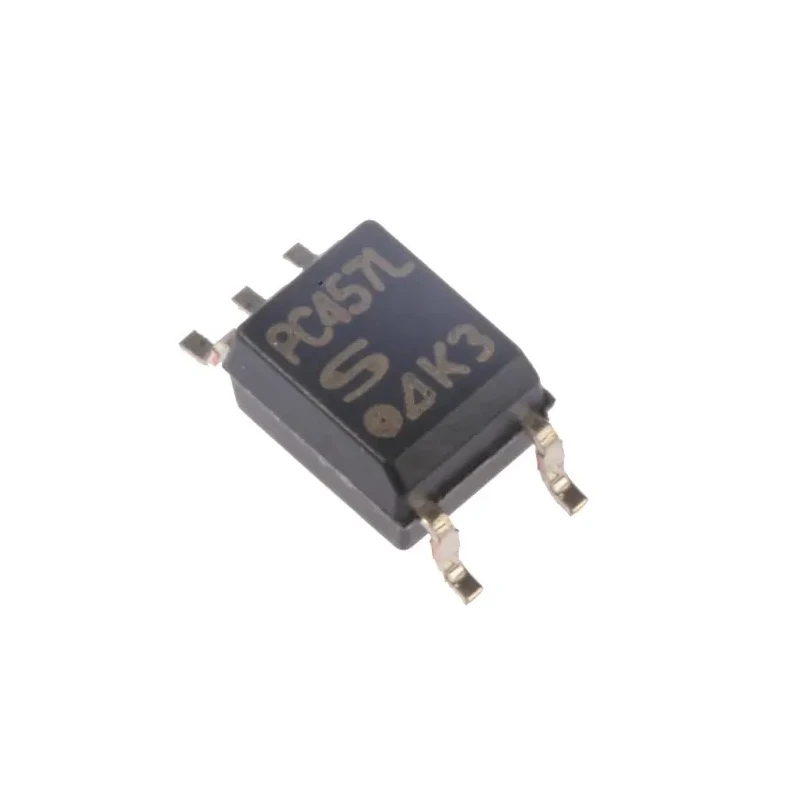

Sharp DC Input Optocoupler, Surface Mount, 5-Pin Mini-Flat PC457L0NIP0F

Sharp PC457L0NIP0F is a DC input optocoupler designed for surface mounting. Featuring a 5-pin mini-flat package, it provides efficient optical isolation suitable for electronic and electrical applications requiring signal integrity between circuits. The device utilizes a transistor output capable of handling typical switching duties with fast rise and fall times.

This optocoupler supports a maximum forward voltage of 1.95V for the input LED and a maximum input current of 25mA, with typical current transfer ratios between 19% and 50%, enabling it to effectively transmit signals with high fidelity. It operates reliably across a broad temperature range from -55°C to 125°C, making it suitable for harsh industrial conditions.

The product provides an isolation voltage of 3.75kVrms, ensuring strong protection against electrical noise and interference. The robust standards compliance, including RoHS, UL1577, and VDE DIN EN60747-5-2, affirms its quality and safety for commercial and industrial use.

Packaged in tape and reel format, the PC457L0NIP0F is optimized for automated manufacturing and precise placement. Ideal for industrial, laboratory, and electronic manufacturing applications, this optocoupler supports isolation requirements in power supplies, microcontroller interfaces, and signal conditioning.

Transistor output type ensures reliable signal transmission. Maximum forward voltage of 1.95V for input LED. Designed for surface mount applications with a compact package. Typical rise and fall times of 0.4μs and 0.2μs for fast switching.

Maximum input current rated at 25mA with a current transfer ratio ranging from 19% to 50%. Operating temperature range from -55°C to 125°C supports diverse environments. Provides an isolation voltage of 3.75kVrms for electrical safety.

Compliance with RoHS, UL1577, and VDE DIN EN60747-5-2 standards. Packaged in tape & reel format suitable for automated assembly. Explore more Optocouplers and electronic components at EnvMart for your industrial and commercial electronics needs.
