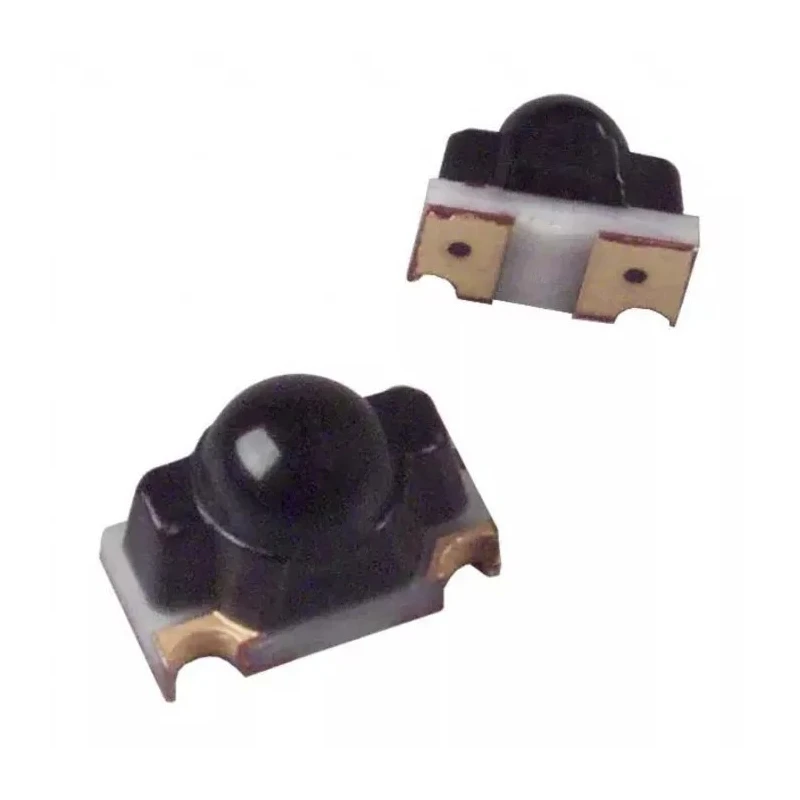

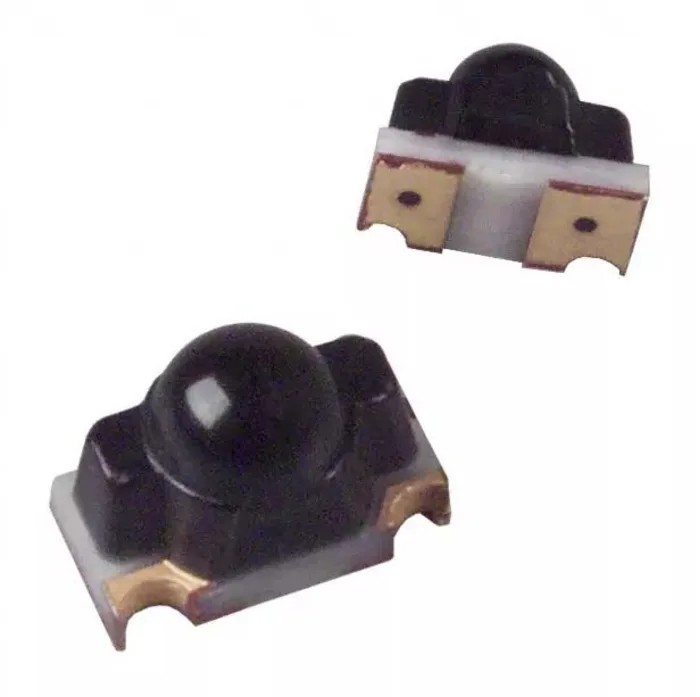

Sharp Infrared Phototransistor Surface Mount Device 2-Pin SMD Package PT100MF0MP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sharp |
| Height | 2.2mm |
| Length | 3mm |
| Model | PT100MF0MP |
| Packaging | Reel |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | PT100 |
| Maximum Operating Temperature | 85°C |
| Package Type | SMD |
| Minimum Operating Temperature | -30°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Rise Time | 5μs |
| Typical Fall Time | 6μs |
| Peak Wavelength | 910nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | ±15 ° |
| Collector Current | 20mA |
| Maximum Light Current | 3.45mA |
| Maximum Dark Current | 100nA |
| Collector Emitter Voltage | 35V |
| Emitter Collector Voltage | 6V |
| Peak sensitivity wavelength | 910 nm TYP |
| Narrow directivity angle (Δθ | ±15° TYP.) |
Key Features
- Compact and thin SMD package for easy PCB mounting.
- Peak sensitivity wavelength of 910 nm suitable for infrared detection.
- Narrow directivity angle of ±15° for focused sensing.
- Maximum light current of 3.45 mA and maximum dark current of 100 nA.
- Operating temperature range from -30°C to 85°C for reliable performance.
- RoHS compliant with lead-free manufacturing standards.
- Suitable for electronic components, power connectors, and optoelectronic applications.
- Typical rise time of 5 μs and fall time of 6 μs ensuring fast response.
Product Description
Sharp PT100MF0MP is an infrared phototransistor designed in a compact surface-mount 2-pin SMD package, ideal for electronic and optoelectronic applications requiring precise infrared light detection.
This device features a peak wavelength sensitivity at 910 nm and a narrow directivity angle of ±15°, ensuring accurate sensing and minimal interference from ambient light.
The phototransistor supports a maximum collector current of 20 mA, with maximum light current capability of 3.45 mA, making it well-suited for low-power downstream circuitry. It operates reliably across a temperature range of -30°C to 85°C, allowing deployment in various industrial and consumer electronic environments.
Its fast response times, with a typical rise time of 5 microseconds and fall time of 6 microseconds, enable timely signal detection in systems requiring rapid light changes.
The device is supplied on reels, facilitating automated assembly processes and efficient component handling. Being RoHS compliant, it adheres to environmental standards restricting hazardous substances.
Commonly used in electronic components assemblies, optocouplers, photodetectors, and power connectors, the PT100MF0MP offers high reliability and consistency in industrial, manufacturing, and laboratory instrumentation.
Compact and thin SMD package for easy PCB mounting. Peak sensitivity wavelength of 910 nm suitable for infrared detection. Narrow directivity angle of ±15° for focused sensing. Maximum light current of 3.45 mA and maximum dark current of 100 nA.
Operating temperature range from -30°C to 85°C for reliable performance. RoHS compliant with lead-free manufacturing standards. Typical rise time of 5 μs and fall time of 6 μs ensuring fast response. Ideal for electronic components, power connectors, and optoelectronics assemblies.
Explore more Phototransistors and optoelectronic components in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of the PT100MF0MP is 910 nm, making it suitable for infrared detection applications.
This model has a height of 2.2 mm, a length of 3 mm, and a width of 1.5 mm, designed for compact surface mounting.
The maximum collector current for the PT100MF0MP is 20 mA, allowing it to handle low-power downstream circuitry effectively.
It operates reliably within a temperature range from -30°C to 85°C, suitable for various industrial and consumer applications.
The typical rise time is 5 microseconds and the fall time is 6 microseconds, enabling fast response for signal detection.
It features a narrow directivity angle of ±15°, which helps in focused sensing and minimizes interference from ambient light.
Yes, the PT100MF0MP is RoHS compliant, adhering to environmental standards that restrict hazardous substances.
This model is supplied on reels, facilitating automated assembly processes and efficient handling during manufacturing.
The maximum dark current for the PT100MF0MP is 100 nA, which is important for ensuring low noise in sensitive applications.
It is commonly used in electronic component assemblies, optocouplers, photodetectors, and power connectors.
This phototransistor supports surface mounting, making it easy to integrate into printed circuit boards (PCBs).
The collector-emitter voltage rating for the PT100MF0MP is 35 V, providing adequate voltage handling for various applications.
