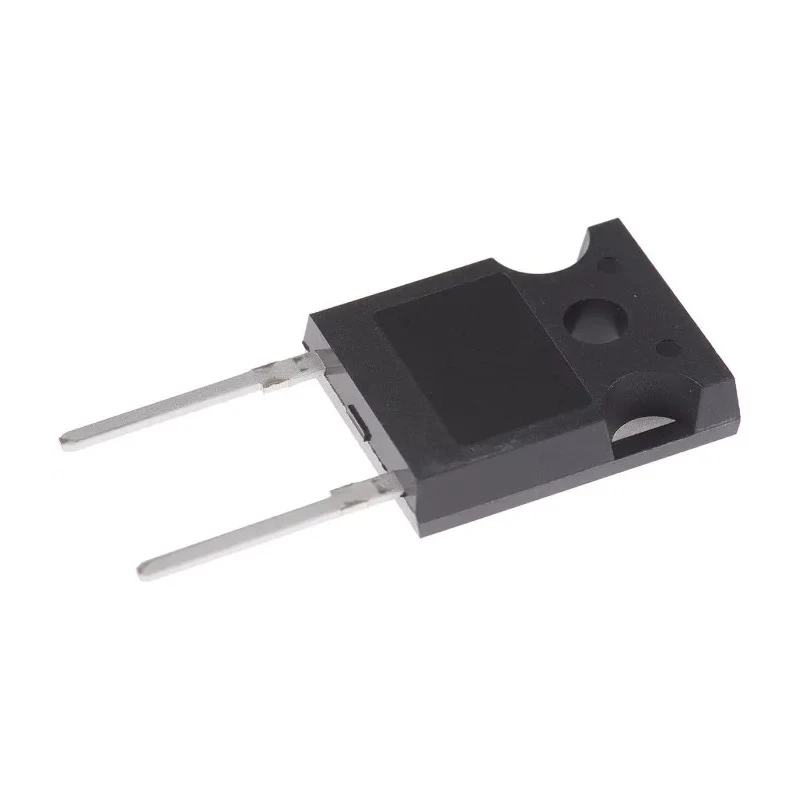

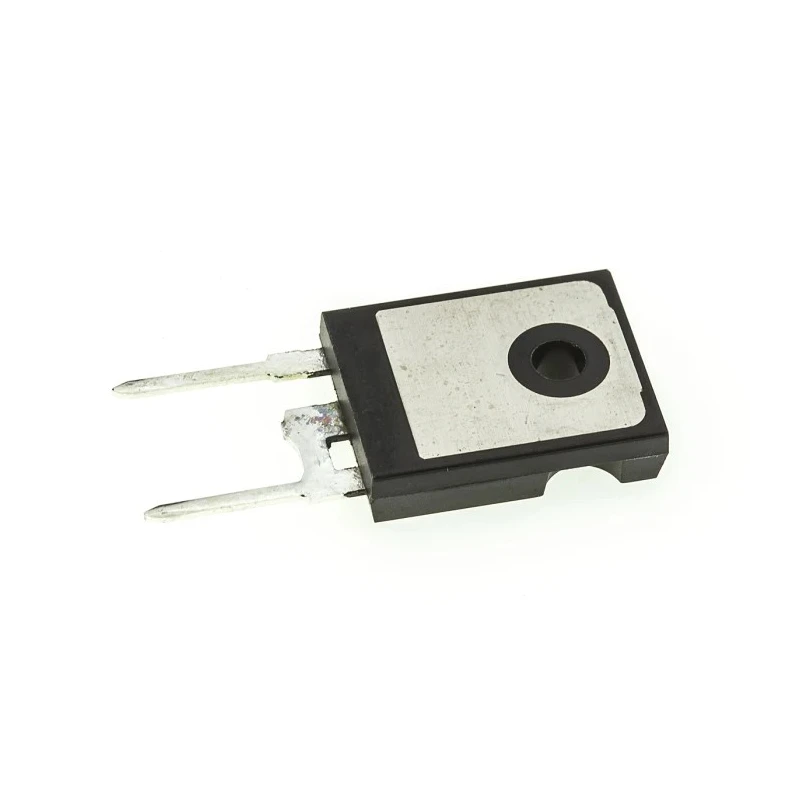

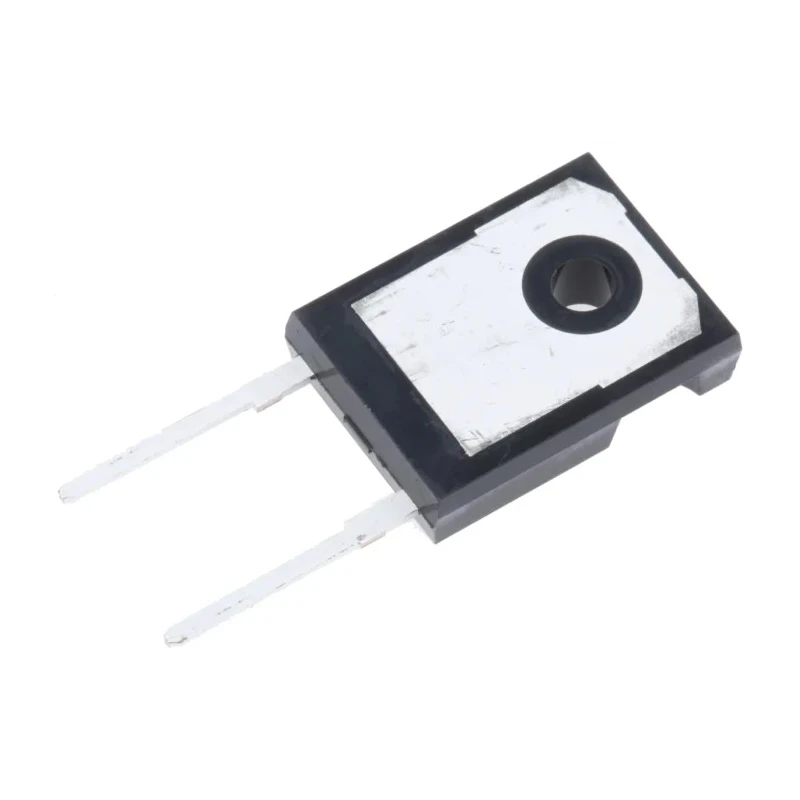

Vishay Switching Diode 1200 V 16 A Diode Switching 2-Pin TO-247AC VS-HFA16PB120-N3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-HFA16PB120-N3 |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 190A |
| Maximum Forward Voltage Vf | 3.93V |
| Peak Reverse Recovery Time trr | 135ns |
Key Features
- Designed with TO-247AC package for through-hole mounting.
- Maximum continuous forward current of 16 A ensures reliable performance.
- Peak reverse repetitive voltage of 1200 V for high voltage applications.
- Single diode configuration optimized for switching operations.
- Ultrafast recovery time of 135 ns reduces switching losses.
- Maximum forward voltage of 3.93 V for efficient conduction.
- Wide operating temperature range from -55°C to 150°C suitable for harsh environments.
- Low peak reverse current of 20 μA to minimize leakage.
Product Description
Vishay VS-HFA16PB120-N3 switching diode is a high-performance semiconductor component designed for industrial and electronic applications requiring efficient rectification and fast recovery.
This diode is encapsulated in a durable TO-247AC through-hole package allowing ease of mounting on power electronics boards.
The device supports a maximum continuous forward current of 16 A and withstands peak reverse repetitive voltages up to 1200 V, making it suitable for high voltage power supply circuits.
Utilizing HEXFRED® ultrafast planar technology with a proprietary Schottky barrier inner structure, this diode offers both ultrasoft recovery and ultrafast recovery time of 135 nanoseconds, minimizing switching losses and electromagnetic interference (EMI).
Its features include very low reverse recovery charge (Qrr), reduced power loss in both diode and switching transistor, and diminished radio frequency interference (RFI), enhancing overall system efficiency.
Designed specifically for companion diode applications with IGBTs and MOSFETs in industrial inverters, power supplies, and motor drives. Wide operating temperature range from -55°C to 150°C ensures durability in demanding environments.
Low peak reverse current of 20 microamperes contributes to device reliability and energy efficiency. Package dimensions of 20.7 mm height, 15.87 mm length, and 5.31 mm width facilitate compact board layouts.
The diode is ideal for use in various industrial sectors including power management, automotive electronics, manufacturing equipment, and laboratory devices requiring precise and fast switching performance.
Choose Vishay VS-HFA16PB120-N3 for your power electronics needs to benefit from advanced semiconductor technology that combines speed, efficiency, and reliability. Explore more products in our Electronics & Electricals category for comprehensive semiconductor component solutions at EnvMart.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 16 A.
This diode features an ultrafast recovery time of 135 ns, which helps minimize switching losses.
The package dimensions are 20.7 mm in height, 15.87 mm in length, and 5.31 mm in width.
This model is designed for through-hole mounting.
The maximum forward voltage drop for this diode is 3.93 V.
This unit has a pin count of 2.
This diode belongs to the VSX series.
This model is classified as a switching rectifier.
