Vishay 2000 V 600 A Standard Recovery Diode Screw Mount B-8 Package VS-SD600N20PC

Free Delivery in India | Lowest Global Shipping Charges

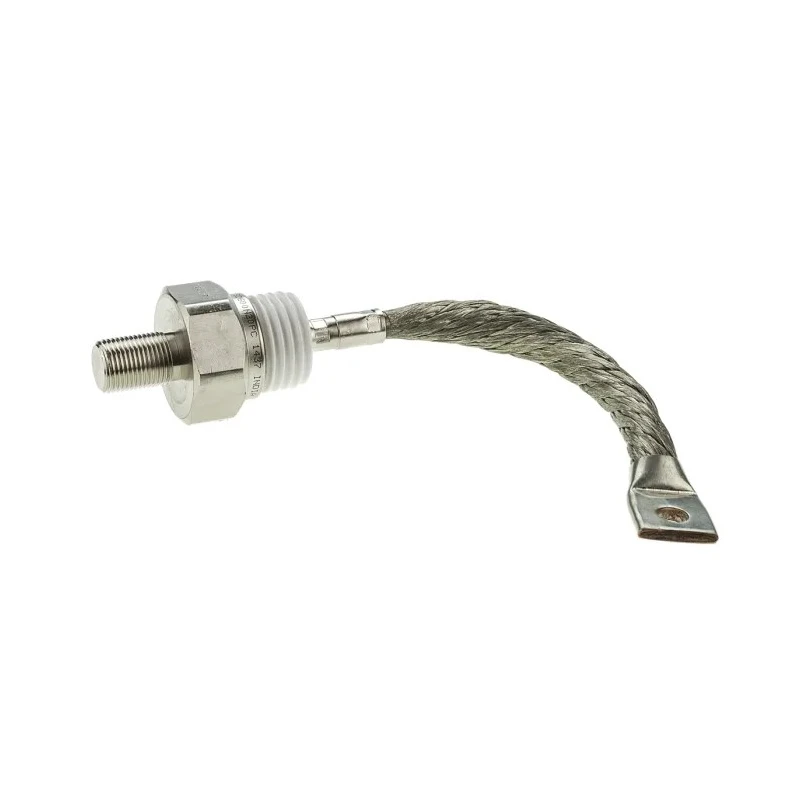

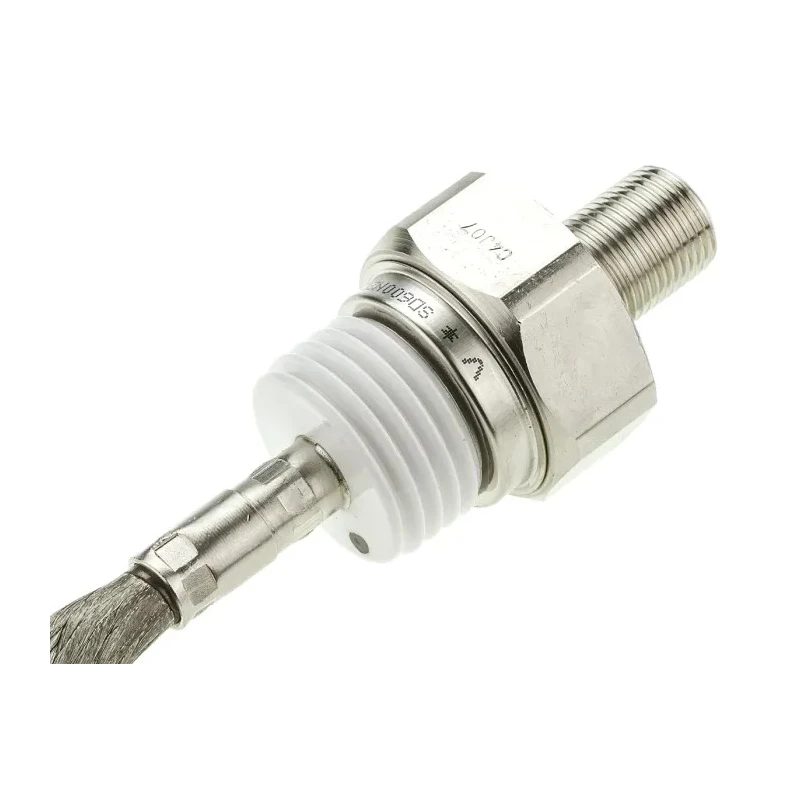

Vishay 2000 V 600 A Standard Recovery Diode Screw Mount B-8 Package VS-SD600N20PC

Name: Vishay 2000 V 600 A Standard Recovery Diode Screw Mount B-8 Package VS-SD600N20PC
Brand: Vishay
SKU: 217503
Price: 203.31 USD
Availability: InStock



Category Semiconductor Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	38mm
Brand	Vishay
Height	107.5mm
Length	51.93mm
Model	VS-SD600N20PC
Width	45mm
Mount Type	Screw
Series	SD600N/R
Maximum Operating Temperature	180°C
Package Type	B-8
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	600A
Peak Reverse Repetitive Voltage Vrrm	2000V
Diode Configuration	Stud Cathode
Rectifier Type	Recovery
Peak Reverse Current Ir	35mA
Peak Non-Repetitive Forward Surge Current Ifsm	13600A
Maximum Forward Voltage Vf	1.13V

Key Features

Designed for high efficiency recovery applications.
Screw mount B-8 package for secure installation.
Maximum forward voltage of 1.13 V ensures low conduction losses.
Capable of peak non-repetitive forward surge current up to 13600 A.
Wide operating temperature range from -40°C to 180°C for versatile industrial use.
Stud cathode diode configuration enhances thermal and electrical performance.
RoHS compliant and manufactured in India to maintain quality standards.

Product Description

Vishay VS-SD600N20PC is a standard recovery diode designed for demanding power electronics applications. It features a maximum continuous forward current rating of 600 A and a peak reverse repetitive voltage of 2000 V, making it suitable for industrial, laboratory, and electrical systems requiring reliable rectification and switching performance.

This diode comes in a rugged B-8 package type with a screw mount, ensuring stable mechanical and electrical connections. Its stud cathode configuration allows for efficient heat dissipation and high surge current capability, able to handle up to 13600 A peak non-repetitive forward surge current.

The device operates reliably across a temperature range from -40°C to 180°C, supporting applications in harsh environments such as manufacturing equipment, power supplies, and motor drives. The maximum forward voltage drop of 1.13 V supports energy-efficient operations by minimizing losses.

With a pin count of 2 and compliance with RoHS standards, the VS-SD600N20PC is engineered for performance and environmental safety. Its dimensions (Height: 107.5 mm, Width: 45 mm, Length: 51.93 mm, Diameter: 38 mm) reflect its robust industrial design.

High efficiency standard recovery diode designed for power rectification. B-8 screw mount package ensures secure mounting and longevity. Supports peak reverse repetitive voltage of 2000 V for voltage surge tolerance. 600 A maximum continuous forward current supports high power requirements.

Robust thermal performance with operating temperature up to 180°C. Stud cathode diode with 2 pins facilitates easy circuit integration. Manufactured in India in compliance with RoHS environmental standards.

This product is ideal for use in industrial electronics, power management, electrical equipment, and manufacturing sectors requiring durable and efficient rectification solutions. Explore related diode components and semiconductor products to support your applications on EnvMart.
