Vishay Bridge Rectifier 800 V 200 A 4-Pin Through Hole GBU8K-E3/51

Free Delivery in India | Lowest Global Shipping Charges

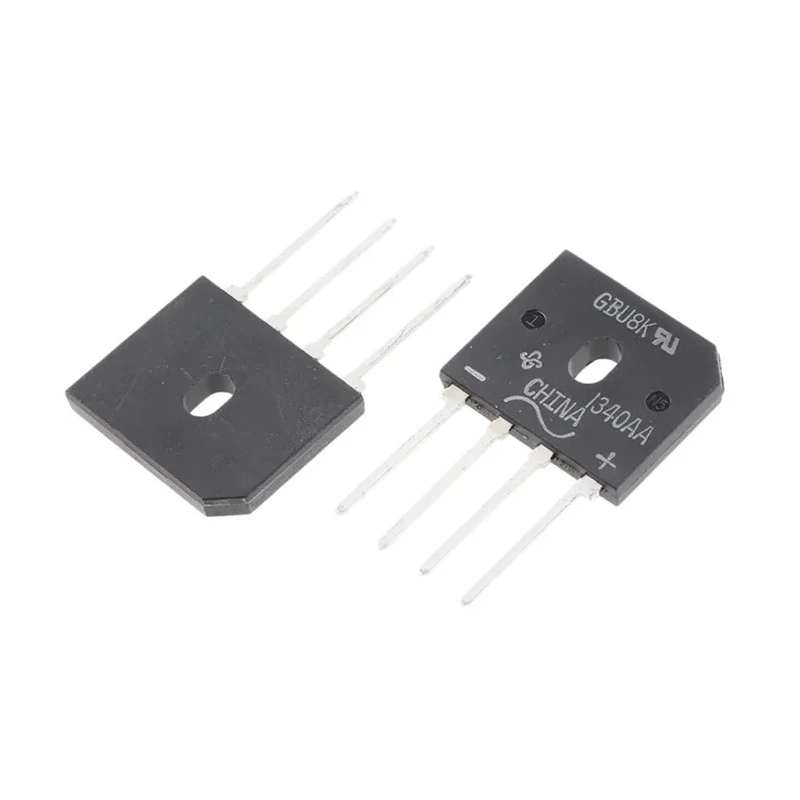

Vishay Bridge Rectifier 800 V 200 A 4-Pin Through Hole GBU8K-E3/51

Name: Vishay Bridge Rectifier 800 V 200 A 4-Pin Through Hole GBU8K-E3/51
Brand: Vishay
SKU: 217501
Price: 2.66 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	18.8mm
Length	22.3mm
Model	GBU8K-E3/51
Width	3.56mm
Mount Type	Through Hole
Series	GBU8
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	8A
Peak Forward Voltage Vf	1V

Key Features

High surge current capability of 200 A ensures durability under peak loads.
Compact GBU package with 4 pins supports easy PCB through hole mounting.
Operates reliably within a temperature range from -55°C to 150°C.
Peak forward voltage of 1 V minimizes power loss during operation.
Glass passivated junction enhances performance and longevity.
High dielectric strength of 1500 Vrms protects against voltage spikes.
Suitable for full-wave rectification converting AC to DC efficiently.
Designed for single-phase applications with single configuration.

Product Description

Vishay GBU8K-E3/51 Bridge Rectifier is engineered for high performance in converting alternating current (AC) inputs into direct current (DC) outputs for full-wave rectification in various industrial and electronic applications.

This Bridge Rectifier features a robust 800 V peak reverse repetitive voltage rating and a high 200 A peak non-repetitive surge current capability, making it suitable for demanding power electronics. The device utilizes a glass passivated junction enhancing its reliability and thermal stability across a wide operating temperature range from -55°C to 150°C.

Mounted via a through-hole GBU package, the Vishay GBU8K-E3/51 offers compact dimensions of 22.3 mm length, 18.8 mm height, and 3.56 mm width, with four pins facilitating easy PCB integration. It exhibits low forward voltage drop of 1 V minimizing power dissipation and improving efficiency, along with a high dielectric strength of 1500 Vrms which ensures protection against electrical stress.

This single-phase, single-configuration rectifier is ideal for industrial electronics, power supplies, and applications requiring stable and efficient DC output from AC sources. It does not hold automotive standards approval and is manufactured in China.

High surge current capability of 200 A ensures durability under peak loads. Compact GBU package with 4 pins supports easy PCB through hole mounting. Operates reliably within a temperature range from -55°C to 150°C. Peak forward voltage of 1 V minimizes power loss during operation.

Glass passivated junction enhances performance and longevity. High dielectric strength of 1500 Vrms protects against voltage spikes. Suitable for full-wave rectification converting AC to DC efficiently. Compact dimensions: 22.3 mm length, 18.8 mm height, and 3.56 mm width.

Designed for single-phase applications with single configuration. Made in China with no automotive certification. Explore more semiconductor products in Vishay series at EnvMart to meet varied industrial and electronic requirements.
