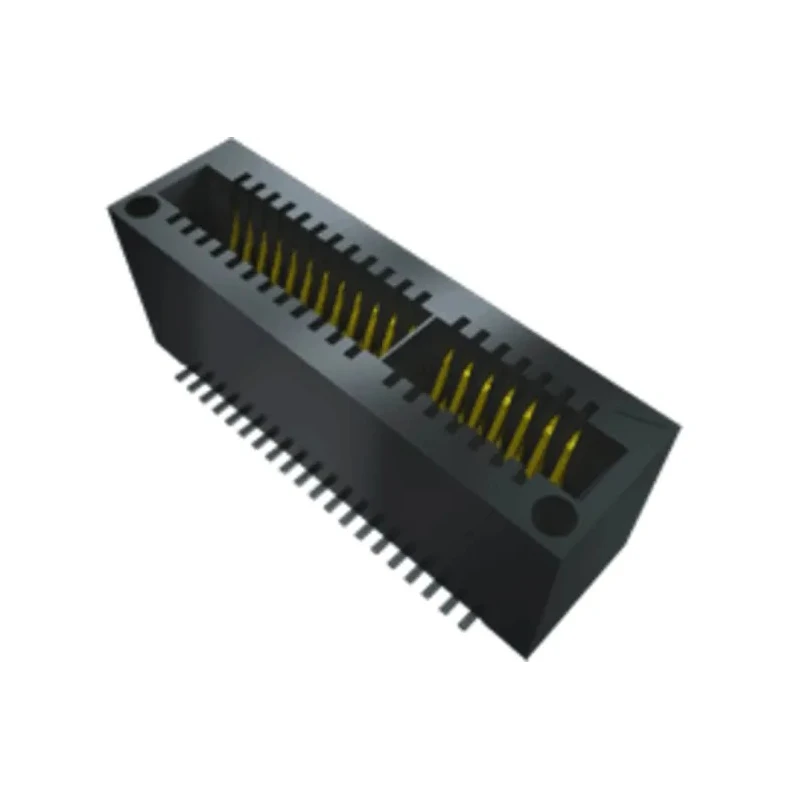

Samtec MEC1 Series Straight Edge Connector Female, Surface Mount, 16 Contacts, 1 mm Pitch, 2 Row, Solder

Free Delivery in India | Lowest Global Shipping Charges

Samtec MEC1 Series Straight Edge Connector Female, Surface Mount, 16 Contacts, 1 mm Pitch, 2 Row, Solder

Name: Samtec MEC1 Series Straight Edge Connector Female, Surface Mount, 16 Contacts, 1 mm Pitch, 2 Row, Solder
Brand: Samtec
SKU: 216047
Price: 5.08 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Straight
Current	2.2A
Model	MEC1
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	MEC1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1mm
Contact Plating	Gold
Number of Contacts	16
Contact Gender	Female
Connector Gender	Female
Card Type	Edge
Card Thickness	1.6mm

Key Features

Offers a straight orientation with a double row design of 16 gold-plated contacts.
Supports a current rating of 2.2A and voltage of 250V for sensitive electronic applications.
Contact material is beryllium copper alloy ensuring high conductivity and durability.
Features a card thickness compatibility of 1.6mm with a pitch spacing of 1 mm.
Operates within a temperature range from -55°C to 125°C for varied environments.
Surface mount type suitable for PCB applications in electronic, industrial, and power scenarios.
Housing made of liquid crystal polymer ensuring insulation and mechanical robustness.
Meets industrial standards with solder termination and female connector gender design.

Product Description

The Samtec MEC1-108-02-F-D-A is a precision-engineered straight edge connector designed for electronic and industrial applications. It features a surface mount design accommodating 16 gold-plated contacts arranged in two rows with a 1 mm pitch, suitable for compact PCB mounting.

Constructed with beryllium copper alloy contacts, this connector provides optimal electrical conductivity and mechanical strength, ensuring reliability in demanding environments. Its operating temperature range from -55°C to 125°C enables durable performance across diverse industrial conditions.

The housing is made from a liquid crystal polymer, offering excellent insulation and resistance to wear, which makes it well-suited for power and electronic component systems requiring robust connectors.

This edge connector supports a card thickness of 1.6 mm and is ideal for connecting edge cards in power and computing applications. Its solder termination type allows secure and stable attachment to printed circuit boards, ensuring longevity in use.

The MEC1 series adheres to quality manufacturing specifications while not carrying specific external approvals, making it a dependable component for industrial, electronic, and manufacturing systems.

Offers a straight orientation with a double row design of 16 gold-plated contacts. Supports a current rating of 2.2A and voltage of 250V for sensitive electronic applications. Contact material is beryllium copper alloy ensuring high conductivity and durability.

Features a card thickness compatibility of 1.6mm with a pitch spacing of 1 mm. Operates within a temperature range from -55°C to 125°C for varied environments. Surface mount type suitable for PCB applications in electronic, industrial, and power scenarios.

Housing made of liquid crystal polymer ensuring insulation and mechanical robustness. Meets industrial standards with solder termination and female connector gender design.

This Samtec MEC1 series Edge Connector is an essential part for electronic design, industrial manufacturing, and power supply assemblies. Browse the Electronics & Electricals category on EnvMart for more connectors and electronic components.
