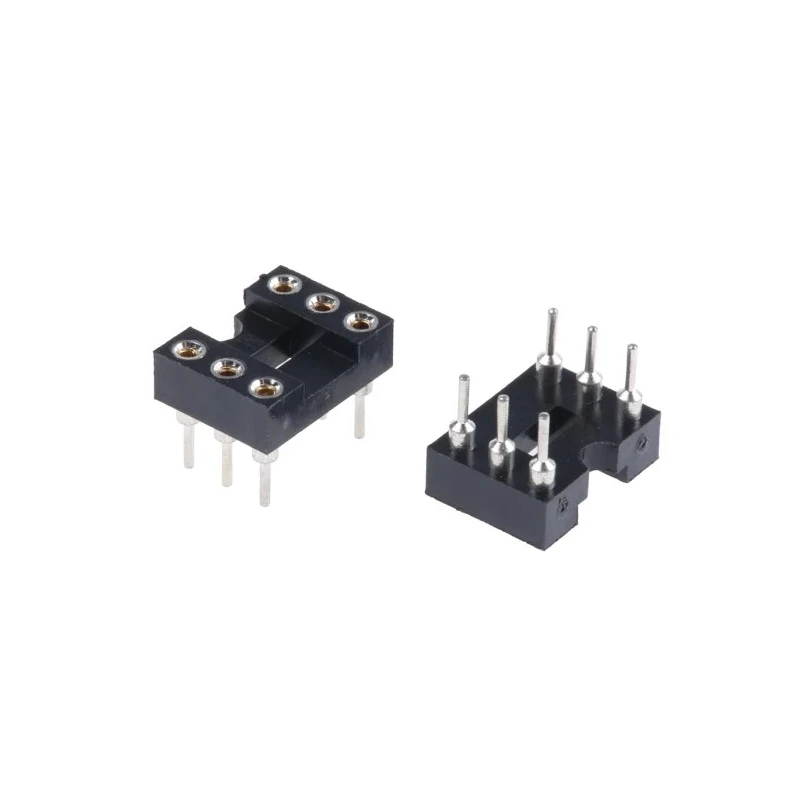

ASSMANN WSW 2.54 mm Pitch Vertical 6 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 06 HZL-TT

ASSMANN WSW AR 06 HZL-TT is a precision engineered 2.54 mm pitch vertical 6 way open frame DIL socket featuring through hole mounting and turned pin contacts. This DIL socket is constructed with a thermoplastic housing rated UL94V-0 for electrical insulation and reliability in challenging environments. The contact pins employ a high-quality beryllium copper alloy with tin and gold plating to ensure excellent conductivity and corrosion resistance.

With a pitch distance of 2.54 mm and a row width of 7.62 mm, the socket is designed to accommodate 6 contacts securely while maintaining robust solder termination through its through hole mount style. The vertical orientation optimizes PCB space and integration flexibility. The socket supports continuous operation at a current of 3A and an AC voltage rating of 150V, making it suitable for a wide array of electronic devices, instruments, and industrial control applications.

The operating temperature range spans from a low of -40°C to a maximum permitted 105°C, ensuring dependable performance under diverse environmental conditions. Its compact dimensions with length 7.62 mm, width 3 mm, and depth 10.16 mm allow for versatile PCB footprint design. The open frame design facilitates heat dissipation and inspection of contacts.

This product is manufactured in China to the highest quality standards expected from ASSMANN WSW. It complies with applicable electrical safety and reliability requirements. The DIL Socket is ideal for laboratory, manufacturing, electronics assembly, and industrial automation applications requiring a durable and reliable IC socket solution.

The socket features 6 turned pin contacts with a 2.54 mm pitch for secure IC insertion and connection. The thermoplastic housing with UL94V-0 rating ensures fire retardancy and insulation. Suitable for through hole solder termination guaranteeing mechanical stability.

Rated for 3A current and 150V AC voltage operation. Operating temperature from -40°C to 105°C supports many industrial environments. Compact dimensions for efficient PCB layout and design. Open frame design allows easy inspection and heat management.
