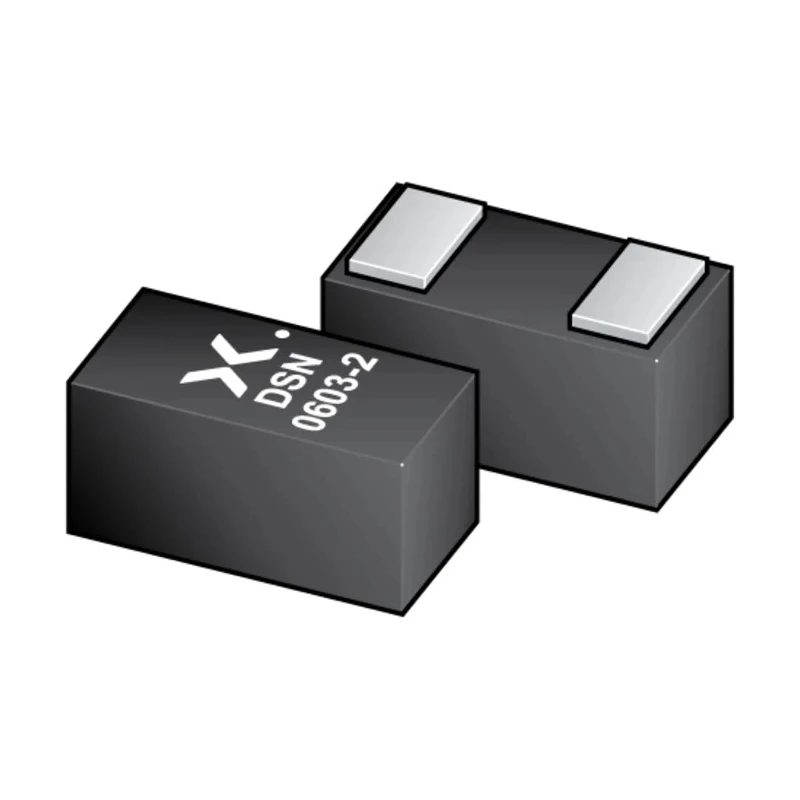

Nexperia Medium Power Low VF Schottky Diode 40 V 0.71 A Surface Mount DSN-0603 PMEG4005ESFYL

Nexperia PMEG4005ESFYL is a medium power low forward voltage Schottky diode configured as a single diode in a 2-pin DSN-0603 surface mount package. Operating voltage is rated at 40 volts with a continuous forward current of 0.71 amps. Its low forward voltage (390 mV) and ultra-fast switching (1.28 ns reverse recovery time) make it highly efficient for power sensitive applications requiring high switching frequencies.

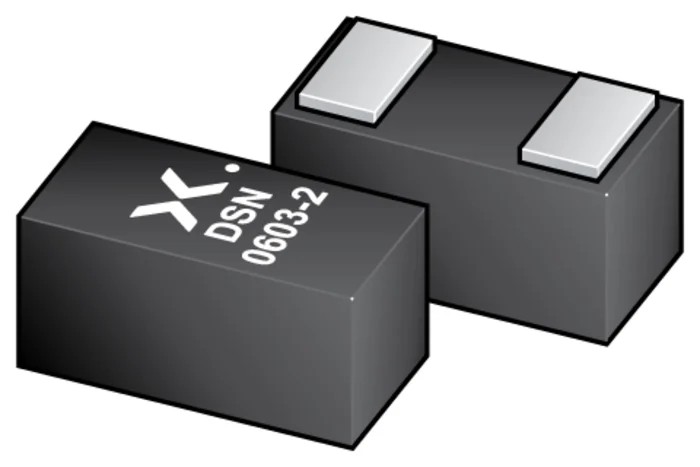

The device dimensions are compact with 0.6 mm length, 0.3 mm width, and 0.3 mm height, suited for space-constrained electronic assemblies. It operates reliably over a wide temperature range from -55°C up to 150°C, suitable for industrial and automotive use.

This Schottky diode is optimized for DC-to-DC converters, switch mode power supplies, and power management tasks where both efficiency and space saving are critical. The low leakage current of 6.5 μA ensures minimal power loss during reverse bias conditions, contributing to enhanced battery life in portable electronics.

Its planar MEGA (Maximum Efficiency General Application) design with an integrated guard ring provides stress protection and improved reliability. The diode is RoHS compliant and does not carry automotive-specific standards, making it appropriate for a variety of general electronic applications.

Maximum continuous forward current: 0.71 A ensuring dependable power handling capability. Peak repetitive reverse voltage of 40 V suitable for low voltage power circuits. Low forward voltage (390 mV) for energy-efficient conduction and reduced power dissipation.

Peak reverse recovery time of 1.28 ns supports ultra-high speed switching performance. Robust temperature range from -55°C to 150°C for demanding environments. Compact 2-pin DSN-0603 package facilitates miniaturized PCB layouts.

Low peak reverse current of 6.5 μA minimizes leakage losses. Applications include LED backlighting, mobile devices, power management, and switch mode power supplies. MEGA Schottky technology enhances maximum efficiency and reliability.

This product is part of the Nexperia Schottky Diodes & Rectifiers category, widely used in electronics manufacturing, automotive electronics, power supply design, and consumer electronic devices. Exploring the broader EnvMart catalog for Nexperia products and other schottky diode solutions can help find complementary components for your projects.
