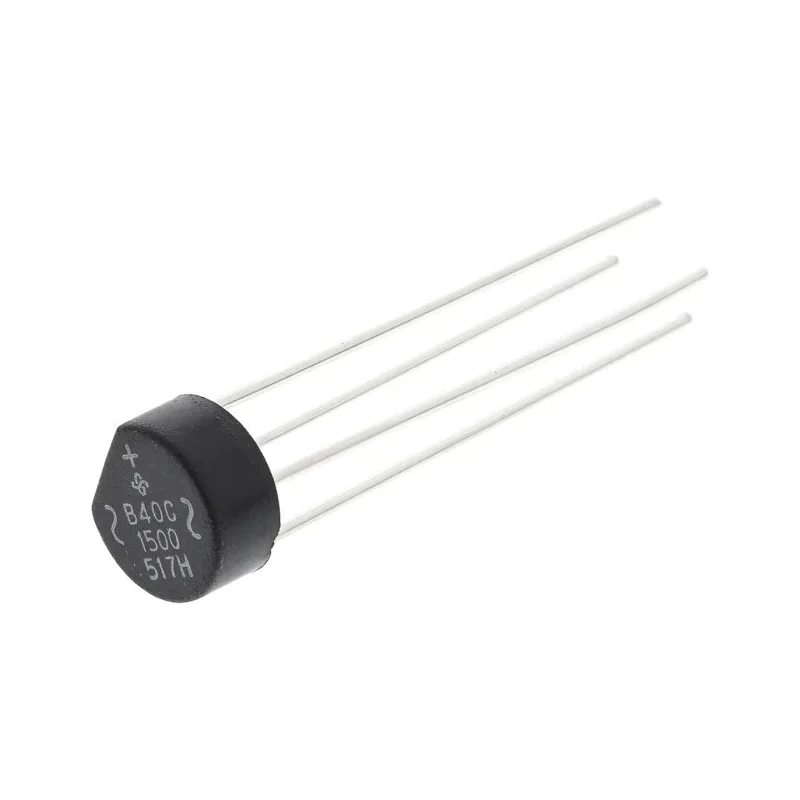

Vishay Bridge Rectifier 65 V 50 A 4-Pin Single Through Hole WOG Package B40C1500G-E4/51

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 65 V 50 A 4-Pin Single Through Hole WOG Package B40C1500G-E4/51

Name: Vishay Bridge Rectifier 65 V 50 A 4-Pin Single Through Hole WOG Package B40C1500G-E4/51
Brand: Vishay
SKU: 214541
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	5.6mm
Length	9.86mm
Model	B40C1500G-E4/51
Width	8.84mm
Mount Type	Through Hole
Series	B40C
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	WOG
Minimum Operating Temperature	-40°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	65V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	1.6A
Peak Forward Voltage Vf	1V
HY Electronic Corp Bridge Rectifier, 600 V 50 A, 4-Pin SingleBrand	HY Electronic Corp

Key Features

Provides full-wave rectification converting AC input to DC output with consistent polarity.
Features a wire lead structure for easy through-hole PCB mounting.
Operates at maximum temperature of 125°C and minimum temperature of -40°C.
Compact dimensions of 9.86 mm length, 8.84 mm width, and 5.6 mm height.
Exhibits low forward voltage drop of 1 V and very low peak reverse current of 10 μA.
Robust surge current capability with peak non-repetitive forward surge current at 50 A.
Reliable solid-state bridge rectifier suitable for industrial and electronic power conversion applications.

Product Description

Vishay B40C1500G-E4/51 Bridge Rectifier is a reliable semiconductor device engineered for converting AC to DC in full-wave rectification circuits. It is a single-phase, 4-pin package designed to provide consistent DC output polarity regardless of the input AC polarity. This bridge rectifier has a peak reverse repetitive voltage of 65 V and can handle a forward current of 50 A, making it suitable for a wide range of electronic and industrial applications requiring efficient power rectification.

The device features a wire lead package type (WOG) optimized for through-hole mounting on printed circuit boards, ensuring easy installation and stable mechanical support. Its compact dimensions (length: 9.86 mm, width: 8.84 mm, height: 5.6 mm) allow integration into constrained PCB layouts.

Operating temperature range extends from -40°C to a maximum of 125°C, supporting reliable operation under varied environmental conditions. The bridge rectifier exhibits a low forward voltage drop of approximately 1 V, which enhances efficiency by minimizing power loss during conduction. A maximum peak reverse current of 10 μA demonstrates excellent leakage characteristics under reverse bias.

The B40C1500G-E4/51 series also offers a robust peak non-repetitive forward surge current rating of 50 A, capable of handling transient surges typical in power electronics and motor control applications. This makes it ideal for industrial electronics, power supplies, motor drives, HVAC systems, and laboratory equipment requiring dependable rectification solutions.

Full-wave rectification from AC to DC with consistent output polarity. Wire lead structure for through-hole PCB mounting. Wide operating temperature range from -40°C to 125°C. Low forward voltage of 1 V for high efficiency.

Low leakage currents ensuring minimal power loss. High surge current capacity for transient protection. Compact dimensions enable integration in space-constrained environments.

This Vishay bridge rectifier combines durability and performance, making it a preferred choice for electronic component assemblies in industrial, commercial, and laboratory settings. Explore more Vishay discrete semiconductors and Bridge Rectifiers in the EnvMart catalog for comprehensive power conversion solutions.
