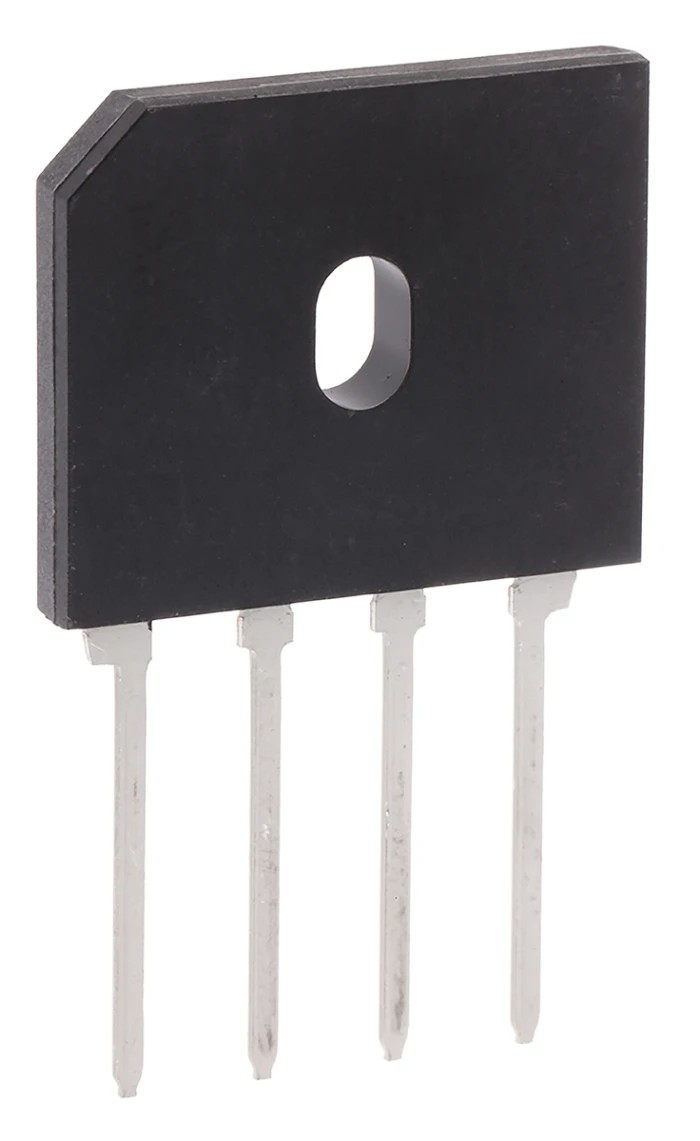

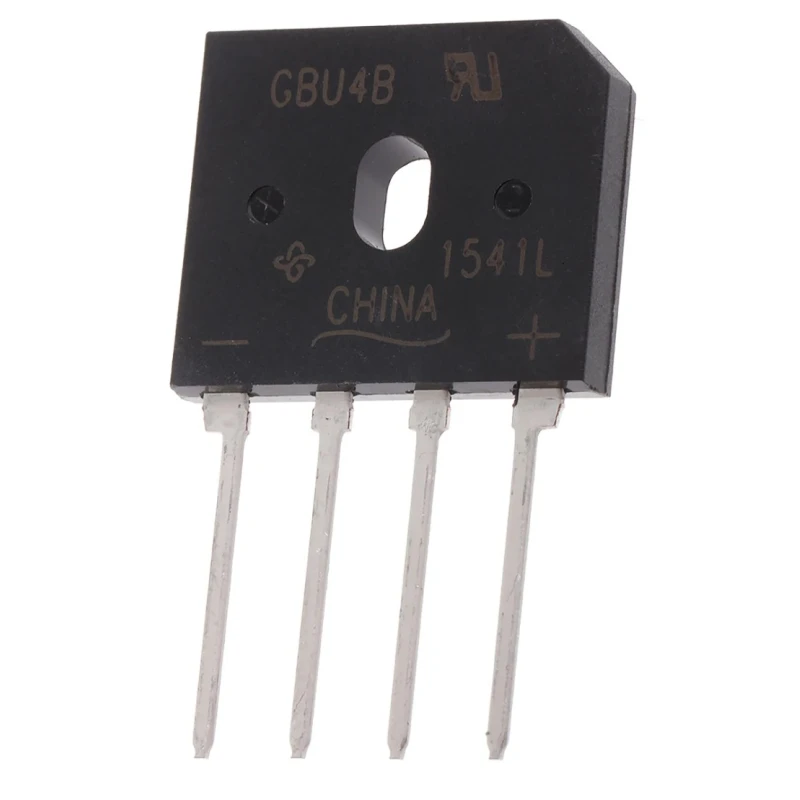

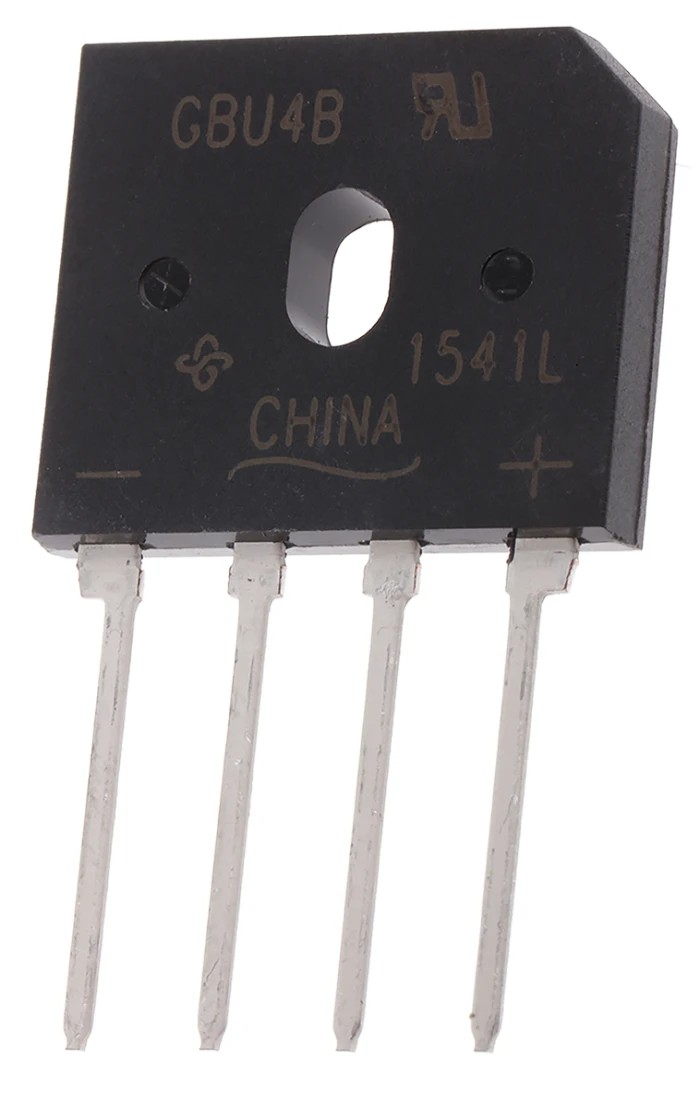

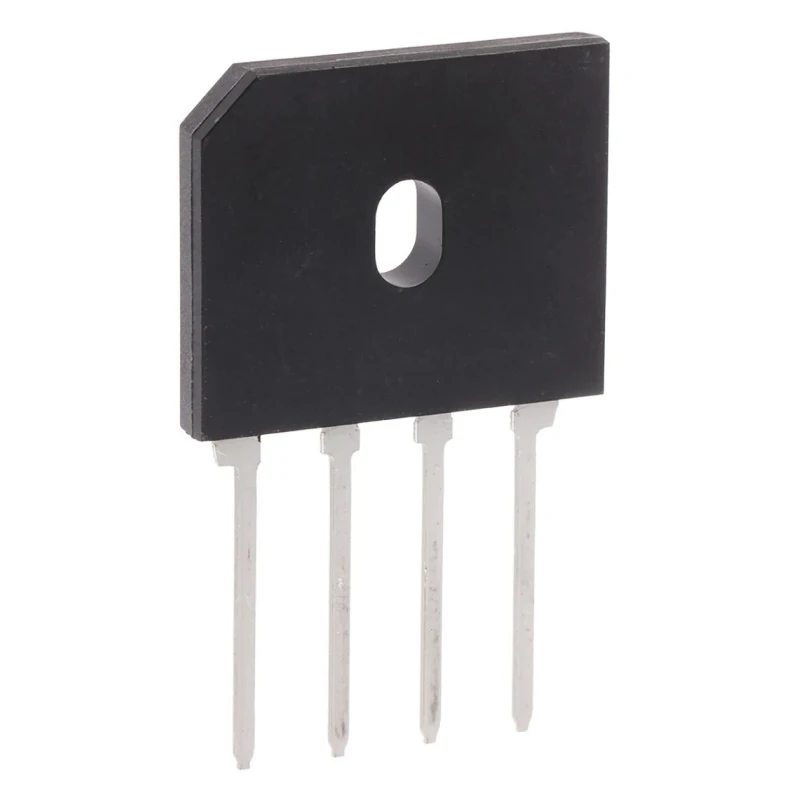

Vishay Bridge Rectifier 100 V 150 A 4-Pin Single GBU4B-E3/51

Name: Vishay Bridge Rectifier 100 V 150 A 4-Pin Single GBU4B-E3/51
Brand: Vishay
SKU: 214521
Price: 1.72 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	18.8mm
Length	22.3mm
Model	GBU4B-E3/51
Width	3.56mm
Mount Type	Through Hole
Series	GBU4
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	100V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Forward Current If	4A
Peak Forward Voltage Vf	1V

Key Features

Glass passivated junction diode ensures high reliability.
Suitable for through-hole PCB mounting with soldering pins.
Operates at maximum temperature of 150°C with a minimum of -55°C.
High surge current capacity up to 150 A non-repetitive forward surge.
Low forward voltage drop of 1 V minimizes power loss.
Extremely low peak reverse current of 5 μA enhances efficiency.
Single-phase configuration designed for industrial and electronic applications.
No automotive or special standards but UL approval file E54214 available.

Product Description

Vishay GBU4B-E3/51 Bridge Rectifier is a robust semiconductor device designed to convert alternating current (AC) into direct current (DC) through full-wave rectification. This single-phase bridge rectifier features a 4-pin single configuration housed in a compact GBU package optimized for through-hole PCB mounting with soldering pins, ensuring stable and secure installation in electronic assemblies.

The diode utilizes a glass passivated junction, providing enhanced reliability and longevity even in demanding industrial and electronic environments. It supports peak reverse repetitive voltage of 100 V and a peak non-repetitive forward surge current of 150 A, making it capable of handling substantial transient currents without damage.

Operating temperature ranges from -55°C minimum to a maximum of 150°C, offering broad thermal resilience for various applications. The device's physical dimensions are 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width, allowing compact integration in power supply circuits. Forward current is rated at 4 A continuous, with a low forward voltage drop of 1 V, ensuring efficient power conversion with minimal heat generation.

Its peak reverse current of 5 μA is remarkably low, reducing leakage and improving overall device efficiency. Though it does not conform to automotive standards, it carries UL certification under file E54214, assuring product quality and safety compliance for industrial use.

Glass passivated junction for durability and performance. Supports high surge current capacity up to 150 A for transient loads. Compact GBU package designed for through-hole PCB mounting. Wide operating temperature range from -55°C to 150°C.

Low forward voltage and peak reverse current for efficiency. UL approved for industrial semiconductor applications.

This Bridge Rectifier is ideal for use in power electronics, control systems, industrial equipment, and various semiconductor circuits requiring reliable AC to DC conversion. The GBU4 series from Vishay maintains a reputation for quality and performance in rugged environments. Browse EnvMart's selection of electronic components and semiconductors for compatible devices and accessories to enhance your industrial and laboratory projects.
