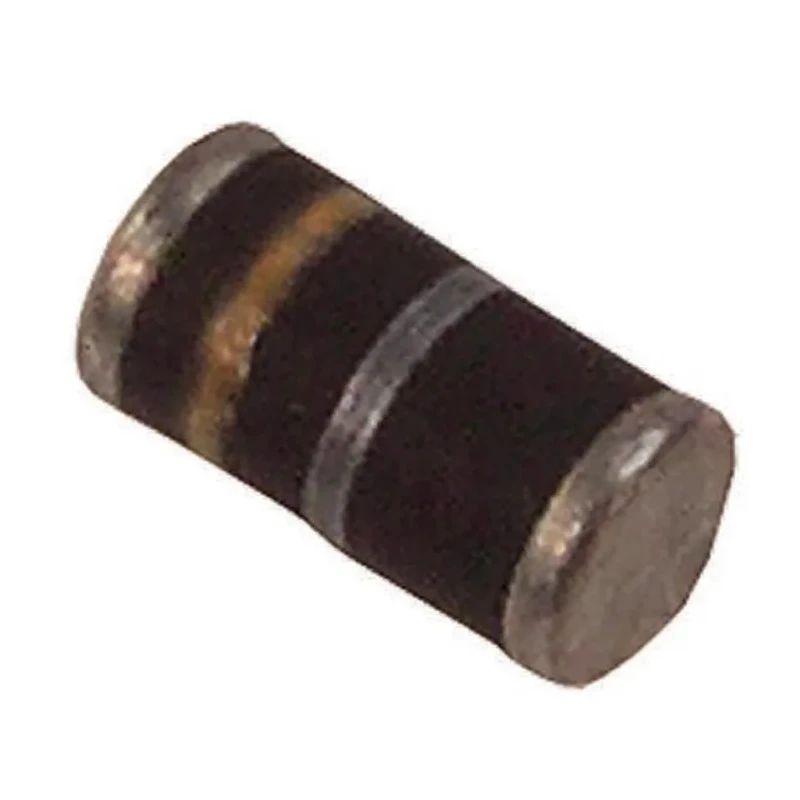

Vishay General Purpose Schottky Diode 1000 V 1 A Surface Mount DO-213AB BYM11-1000-E3/96
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.4mm |
| Brand | Vishay |
| Height | 2.67mm |
| Length | 5.2mm |
| Model | BYM11-1000-E3/96 |
| Width | 2.67mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-213AB |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | UL 94 V-0, WEEE 2002/96/EC, JESD 201, JESD 22-B102, J-STD-002, J-STD-020, MIL-S-19500, RoHS Directive 2002/95/EC |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 500ns |
Key Features
- Maximum continuous forward current of 1 ampere ensures reliable performance.
- Peak reverse repetitive voltage of 1000 volts suitable for high-voltage applications.
- Low forward voltage drop of 1.3 volts enhances energy efficiency.
- Fast recovery time of 500 nanoseconds minimizes switching losses.
- Operates reliably within a temperature range of -65°C to 175°C.
- Compact surface mount DO-213AB package with dimensions 5.2mm length, 2.67mm width, and 2.4mm diameter.
- Complies with RoHS and automotive AEC-Q101 standards for quality and safety.
- Designed for use in power supply rectification, voltage clamping, and other semiconductor applications.
Product Description
Vishay BYM11-1000-E3/96 is a high-performance general purpose Schottky diode designed for surface mount applications. Featuring a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage rating of 1000 volts, this diode offers efficient rectification in power supplies and voltage clamping circuits.
The diode is housed in a compact DO-213AB package with low profile height of 2.67mm and small footprint dimensions of 5.2mm length and 2.67mm width, making it suitable for space-constrained industrial, automotive, and consumer electronic devices.
It delivers a maximum forward voltage drop of 1.3 volts, contributing to reduced power losses, and has a fast reverse recovery time of 500 nanoseconds to improve switching efficiency in high-frequency circuits.
The operating temperature range from -65°C to 175°C ensures robust performance in harsh environments. Compliance with RoHS directive, AEC-Q101 automotive standard, and multiple international standards including MIL-S-19500 confirms the high reliability and quality of this component.
Featuring 2 pins in a single diode configuration, it is optimized for surface mount placement, simplifying automated PCB assembly and improving production efficiency. Maximum continuous forward current of 1 A. Peak reverse repetitive voltage of 1000 V.
Low forward voltage drop of 1.3 V. Fast recovery time of 500 ns. Operating temperature range from -65°C to 175°C. Compact DO-213AB surface mount package. Compliance with AEC-Q101 automotive standard and RoHS directive. Ideal for industrial, automotive, and electronic semiconductor applications.
2-pin diode configuration for ease of PCB integration.
This Vishay Schottky diode BYM11-1000-E3/96 is suitable for electronic component distributors and manufacturers requiring reliable rectification with high voltage and current ratings. Explore more semiconductor components and Schottky diodes from Vishay at EnvMart for diverse industrial and commercial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 ampere.
The forward voltage drop is 1.3 volts, which enhances energy efficiency during operation.
This unit features a fast recovery time of 500 nanoseconds, minimizing switching losses.
It operates reliably within a temperature range of -65°C to 175°C.
The dimensions of the DO-213AB package are 5.2mm in length, 2.67mm in width, and 2.4mm in diameter.
This model features a 2-pin configuration, optimized for surface mount placement.
It is designed for power supply rectification, voltage clamping, and other semiconductor applications.
The maximum non-repetitive forward surge current is 30 amperes.
