Vishay Avalanche Rectifier Diode 100 V 2 A 2-Pin SOD-57 BYV27-100-TAP

Free Delivery in India | Lowest Global Shipping Charges

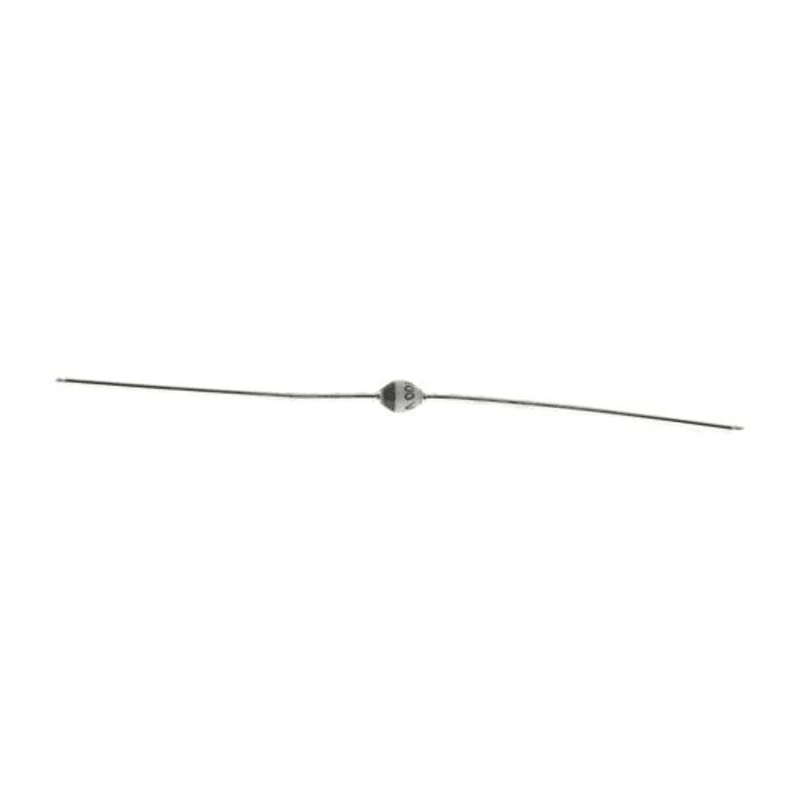

Vishay Avalanche Rectifier Diode 100 V 2 A 2-Pin SOD-57 BYV27-100-TAP

Name: Vishay Avalanche Rectifier Diode 100 V 2 A 2-Pin SOD-57 BYV27-100-TAP
Brand: Vishay
SKU: 214435
Price: 0.85 USD
Availability: InStock



Category Discrete Semiconductors Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	3.6mm
Length	4mm
Model	BYV27-100-TAP
Width	3.6mm
Mount Type	Through Hole
Series	BYV27-100
Maximum Operating Temperature	175°C
Case	DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade
Package Type	SOD-57
Minimum Operating Temperature	-55°C
Polarity	Colour band denotes cathode end
Terminals	Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Avalanche
Peak Reverse Current Ir	1μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	1.07V
Peak Reverse Recovery Time trr	25ns

Key Features

The diode features a glass passivated chip junction for high reliability.
It has an ultrafast reverse recovery time of 25 nanoseconds.
The forward voltage drop is low at 1.07 volts for efficient conduction.
High forward surge capability with a peak non-repetitive forward surge current of 50 amperes.
Matte tin-plated leads ensure solderability complying with industrial standards.
Operation temperature ranges from -55°C to 175°C for robust performance in harsh environments.
Case is moulded with UL 94 V-0 flammability rated compound ensuring safety compliance.
Polarized design with a color band denoting the cathode end for correct installation.

Product Description

Vishay BYV27-100-TAP avalanche rectifier diode is a semiconductor component designed for high frequency switching applications.

This diode supports a maximum continuous forward current of 2 amperes and withstands a peak reverse repetitive voltage of 100 volts. Its ultrafast recovery time of 25 nanoseconds and low forward voltage drop of 1.07 volts optimize efficiency and reduce power loss in circuits.

The robust case design meets UL 94 V-0 flammability standards, and matte tin-plated leads ensure reliable soldering conforming to J-STD-002 and JESD 22-B102. Operating temperature range from -55°C to 175°C makes it suitable for demanding industrial, consumer, computer, and telecommunication applications.

Typical uses include switching mode power supplies, freewheeling diodes in inverters, and other high frequency rectification tasks requiring fast recovery and surge capability. Glass passivated chip junction for enhanced reliability.

Ultrafast reverse recovery time reduces switching losses. Low forward voltage drop minimizes conduction losses. High forward surge current withstands transient conditions. Matte tin-plated leads ensure excellent solderability.

Wide temperature rating supports varied environments. Flammability-rated moulding compound for safety compliance. Cathode polarity marked by color band for easy identification. RoHS-compliant with commercial grade quality assurance.

Meets industrial whisker test standards for lead reliability.

This avalanche diode is well suited for industrial electronics, telecommunications, power electronics manufacturing, and laboratory use. Its compact SOD-57 package facilitates easy through-hole mounting and reliable operation in varied electronic assemblies.

EnvMart offers this Vishay diode with trusted quality, suitable for professionals requiring efficient and reliable diode solutions.
