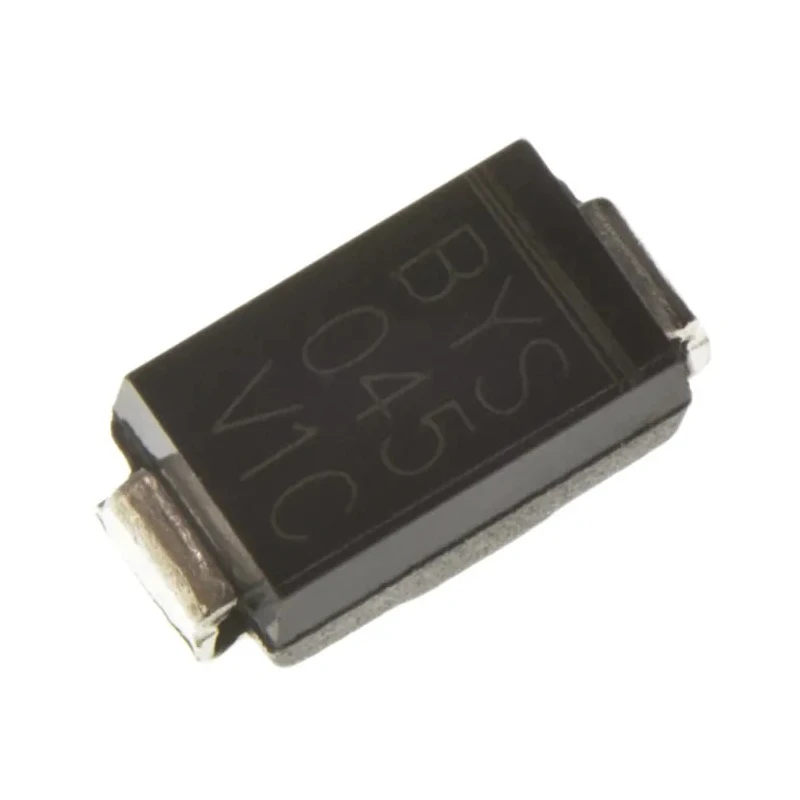

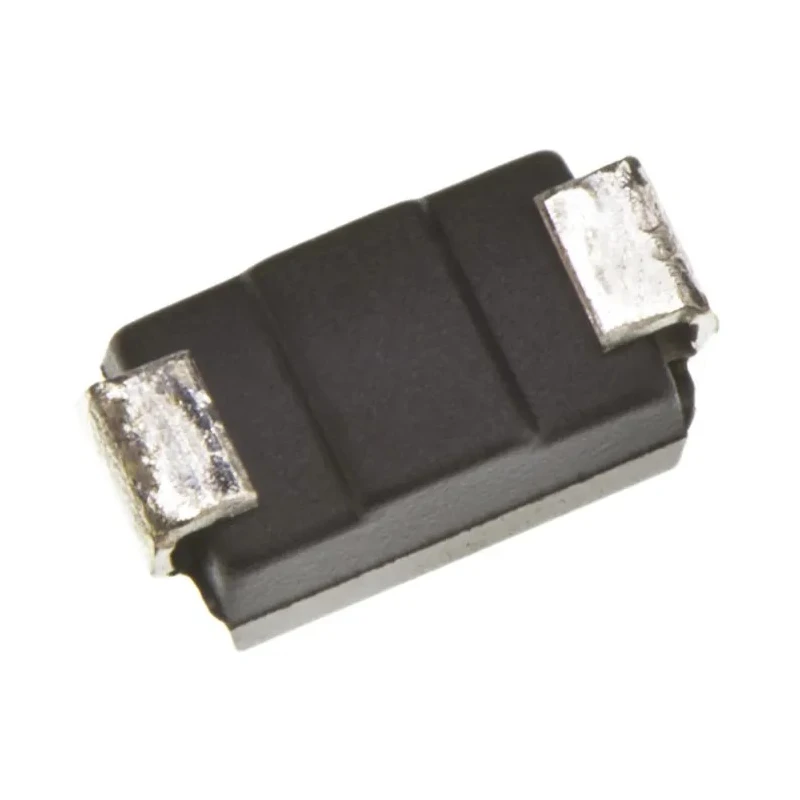

Vishay Schottky Diode 45 V 1.5 A 2-Pin Surface Mount DO-214AC BYS10-45-E3/TR3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.29mm |
| Length | 4.6mm |
| Model | BYS10-45-E3/TR3 |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | BYS10-45 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- Maximum continuous forward current of 1.5 A ensures reliable conduction under load.
- Peak reverse repetitive voltage rating of 45 V provides robust reverse voltage protection.
- Low maximum forward voltage of 500 mV decreases power losses in circuits.
- Extremely fast switching performance ideal for high-frequency applications.
- Operates within a temperature range of -65°C to 150°C for versatile industrial environments.
- 2.29 mm height, 4.6 mm length, and 2.9 mm width dimension suitable for compact PCB layouts.
- Meets automotive standard AEC-Q101 ensuring reliability in automotive and industrial electronics.
- Peak non-repetitive forward surge current up to 40 A enables handling of transient surges.
Product Description
Vishay BYS10-45-E3/TR3 Schottky Diode is a high performance discrete semiconductor device designed for surface mount applications. It features a compact 2-pin DO-214AC package, enabling easy PCB assembly and integration into power supply and signal rectification circuits. The diode supports a maximum continuous forward current of 1.5 A and a peak reverse repetitive voltage of 45 V, making it suitable for low voltage power conversion and protection applications.
The device exhibits a low forward voltage drop of 500 mV which helps minimize conduction losses and improve overall circuit efficiency. Its extremely fast switching capability supports high frequency operations, commonly required in switching power supplies, voltage regulation, and automotive electronics. The operational temperature range from -65°C to 150°C allows reliable performance in harsh industrial and automotive environments.
Dimensionally, the diode is compact with a height of 2.29 mm, length of 4.6 mm, and width of 2.9 mm, facilitating space-saving PCB layouts. Compliance with AEC-Q101 automotive standards ensures durability and robustness needed in vehicle electric systems. The diode's capability to handle a peak non-repetitive forward surge current of 40 A provides transient surge protection for industrial power designs.
This single diode device is ideal for use in power rectification, voltage clamping, and protecting sensitive circuits in industrial, automotive, consumer electronics, and manufacturing applications.
Maximum continuous forward current: 1.5 A. Peak reverse repetitive voltage: 45 V. Low forward voltage drop of 500 mV for efficient power handling. Fast switching with extremely short recovery times. Wide operating temperature range from -65°C to 150°C.
Compact DO-214AC package with 2 pins. Automotive grade AEC-Q101 compliant. Peak non-repetitive forward surge current of 40 A. Suitable for power electronics, automotive, industrial, and consumer applications. Find more Vishay Schottky Diodes & Rectifiers and other high-quality discrete semiconductors in EnvMart's comprehensive electronic components catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1.5 A.
It has a peak reverse repetitive voltage rating of 45 V.
The diode features a low maximum forward voltage drop of 500 mV.
It operates within a temperature range of -65°C to 150°C.
The dimensions are 2.29 mm in height, 4.6 mm in length, and 2.9 mm in width.
The diode can handle a peak non-repetitive forward surge current of up to 40 A.
Yes, it meets the automotive standard AEC-Q101, ensuring reliability in automotive applications.
This model uses surface mount technology.
The diode configuration is single.
The peak reverse current is specified at 500 μA.
It is suitable for power rectification, voltage clamping, and protecting sensitive circuits in various applications including industrial and automotive.
The brand is Vishay and the model is BYS10-45-E3/TR3.
