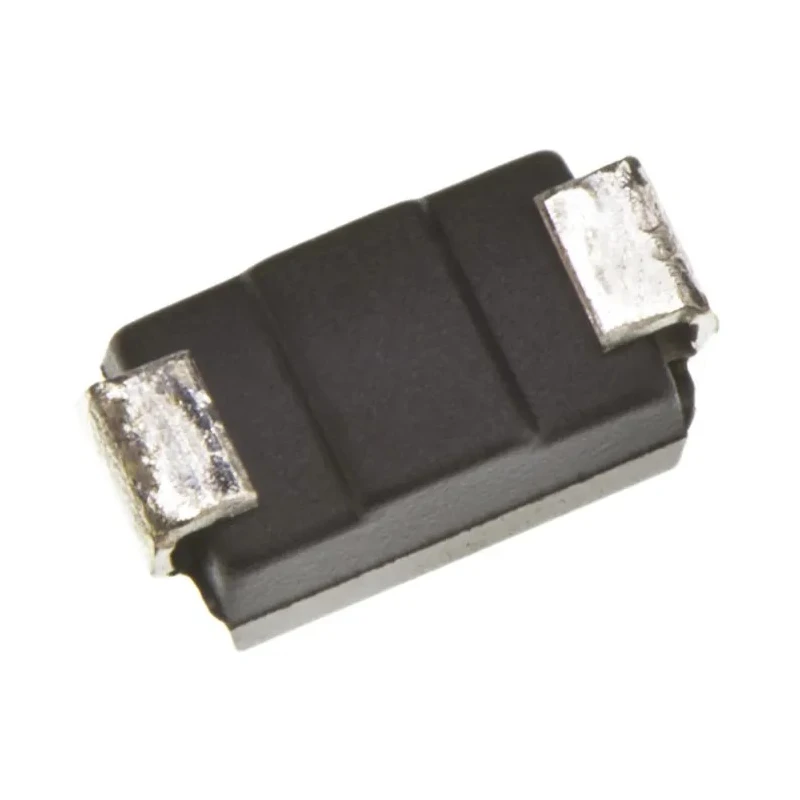

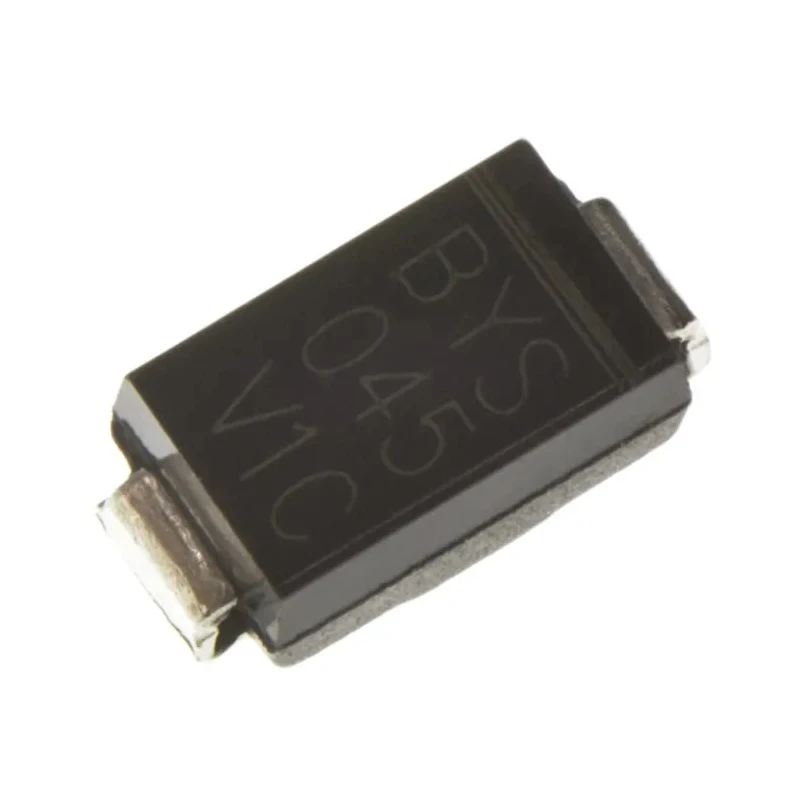

Vishay Schottky Diode 45 V 1.5 A Surface Mount DO-214AC Package BYS10-45-E3/TR3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.29mm |
| Length | 4.6mm |
| Model | BYS10-45-E3/TR3 |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | BYS10-45 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- Features a maximum continuous forward current of 1.5 A for reliable performance.
- Withstands a peak reverse repetitive voltage of 45 V to protect circuits.
- Compact DO-214AC package dimensions of 4.6 mm length, 2.9 mm width, and 2.29 mm height for space-efficient designs.
- Exhibits a maximum forward voltage drop of 500 mV reducing power dissipation.
- Supports a wide operating temperature range from -65°C to 150°C for harsh environments.
- Approved to AEC-Q101 automotive standard ensuring quality and reliability for automotive electronics.
- Peak non-repetitive forward surge current rating of 40 A allows transient current tolerance.
- Ideal for industrial, consumer electronics, and power supply applications with fast switching requirements.
Product Description
Vishay BYS10-45-E3/TR3 is a high-performance Schottky diode housed in a surface mount DO-214AC package. It supports a maximum continuous forward current of 1.5 A and a peak reverse repetitive voltage of 45 V, making it reliable for various electronic circuit protection and switching tasks.
This single diode has low forward voltage drop at 500 mV, enabling efficient operation with minimal power loss. Its compact package with dimensions 4.6 mm length, 2.9 mm width, and 2.29 mm height suits dense PCB layouts.
The diode meets the stringent AEC-Q101 automotive standard, making it suitable for demanding automotive and industrial environments. It supports a broad temperature range from -65°C to 150°C, ensuring performance stability under extreme conditions.
With a peak non-repetitive forward surge current rating of 40 A, the diode can withstand transient surges during device switching or power events. The 2-pin design facilitates straightforward PCB mounting and integration.
Maximum continuous forward current of 1.5 A. Peak reverse repetitive voltage of 45 V. Compact DO-214AC surface mount package. Low maximum forward voltage of 500 mV. Wide operating temperature range from -65°C to 150°C. Compliant with AEC-Q101 automotive standards.
Peak non-repetitive forward surge current of 40 A.
This Schottky diode is ideal for applications requiring fast switching and low power dissipation such as power supplies, automotive electronics, industrial controls, and consumer electronic devices.
Explore Vishay semiconductor components for reliable and efficient discrete semiconductor solutions at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 1.5 A.
It has a peak reverse repetitive voltage of 45 V.
The dimensions of the DO-214AC package are 4.6 mm in length, 2.9 mm in width, and 2.29 mm in height.
The maximum forward voltage drop is 500 mV.
It supports an operating temperature range from -65°C to 150°C.
This diode is compliant with the AEC-Q101 automotive standard.
The peak non-repetitive forward surge current rating is 40 A.
This model has a 2-pin configuration.
It is a Schottky rectifier.
It is suitable for applications requiring fast switching and low power dissipation, such as power supplies, automotive electronics, and industrial controls.
The peak reverse current is 500 μA.
The mounting type is surface mount.
