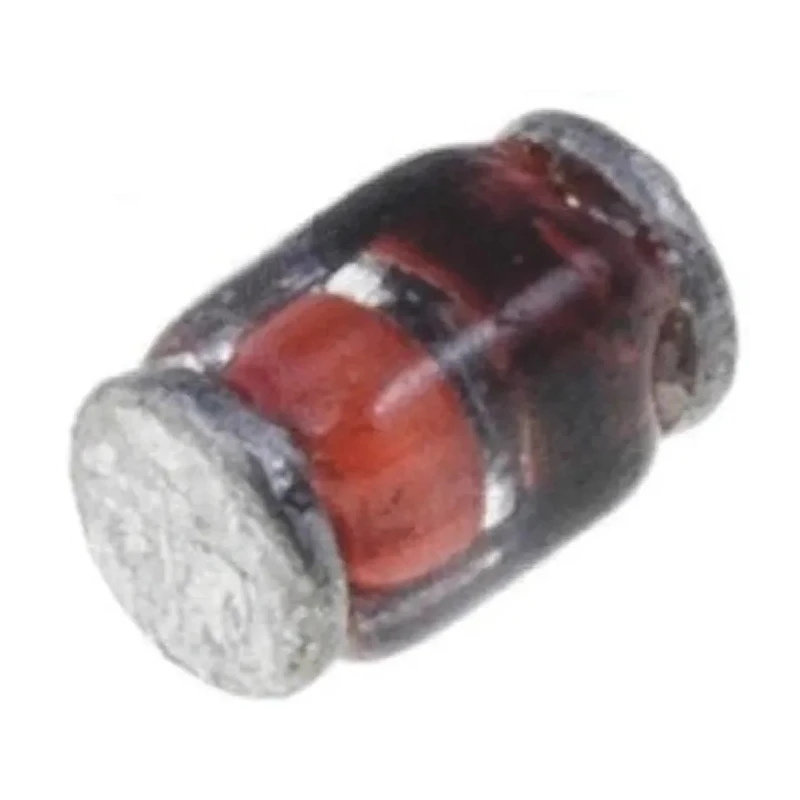

Vishay Silicon Junction Switching Diode Single 250 mA 2-Pin 250 V MicroMELF BAV303-TR

Vishay BAV303-TR is a silicon junction switching diode designed for reliable performance in a range of electronic applications. This single diode device supports a maximum forward current of 250 mA and a peak repetitive reverse voltage of 250 V, making it suitable for high voltage switching and fast rectification processes.

The diode features a superectifier structure that enhances device reliability under rigorous conditions. It has a cavity-free glass-passivated junction that ensures minimal leakage current and excellent long-term stability. The glass body is encapsulated with molded epoxy, meeting UL 94 V-0 flammability rating, providing safety and robustness.

The device exhibits a peak forward surge current of 1 A and a maximum forward voltage drop of 1 V, enabling efficient power handling with low losses. It operates efficiently within a temperature range of -65°C to 175°C, and its fast peak reverse recovery time of 50 ns allows it to be used effectively in switching circuits requiring quick response times.

Designed in a compact MicroMELF package (DO-204AL case), the diode is surface mountable with two pins and uses matte tin plated leads that comply with J-STD-002 and JESD 22-B102 for solderability and long-term reliability. The cathode end is marked with a color band for easy polarity identification during installation.

Typical applications include high voltage rectification in G2 grid CRT and TV circuits as well as snubber circuits in camera flash units where fast switching and robustness are required. The diode is a commercial-grade product compliant with RoHS standards.

Features a superectifier structure for high reliability. Utilizes a cavity-free glass-passivated junction for durability. Exhibits fast switching capability for improved efficiency. Has a low leakage current typically less than 0.2 microamperes.

Offers high forward surge current capability of up to 1 ampere. Constructed with a molded epoxy over glass body DO-204AL case. Terminals are matte tin plated and solderable in accordance with standard industry practices.

The polarity is indicated by a color band marking the cathode end. Operates within a temperature range from -65°C to 175°C. Ideal for high voltage rectification and snubber circuits in cameras and CRT TVs. Explore the range of Vishay switching diodes at EnvMart for reliable discrete semiconductor components that meet industrial and electronic design needs.
