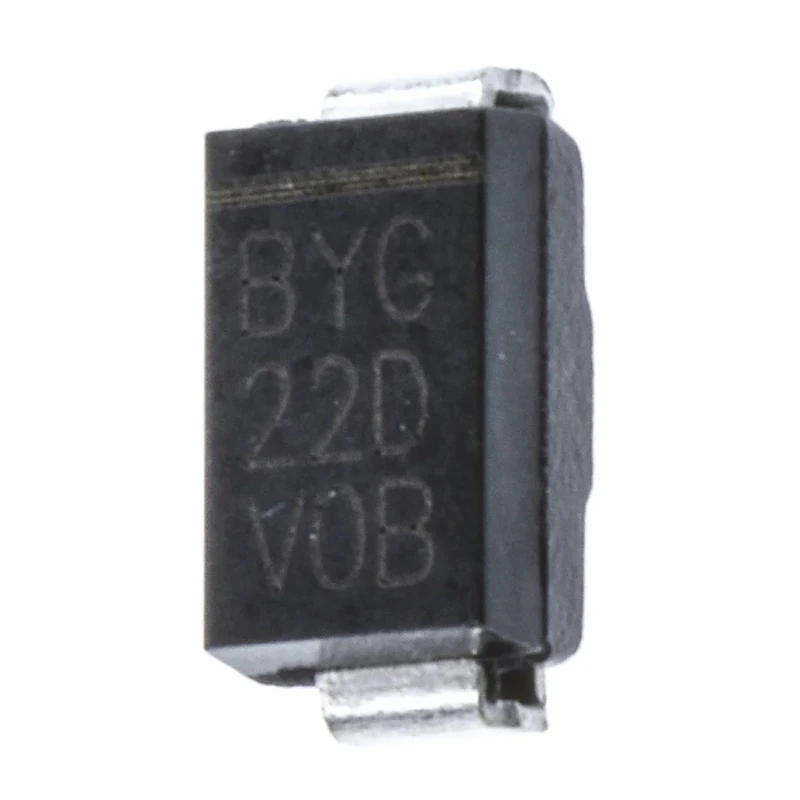

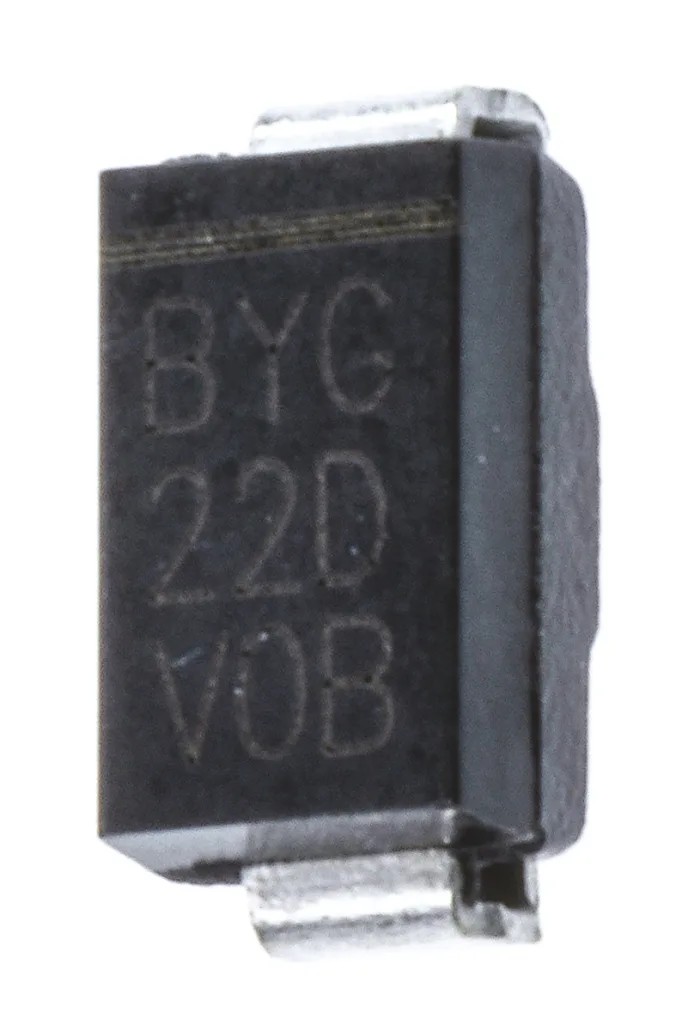

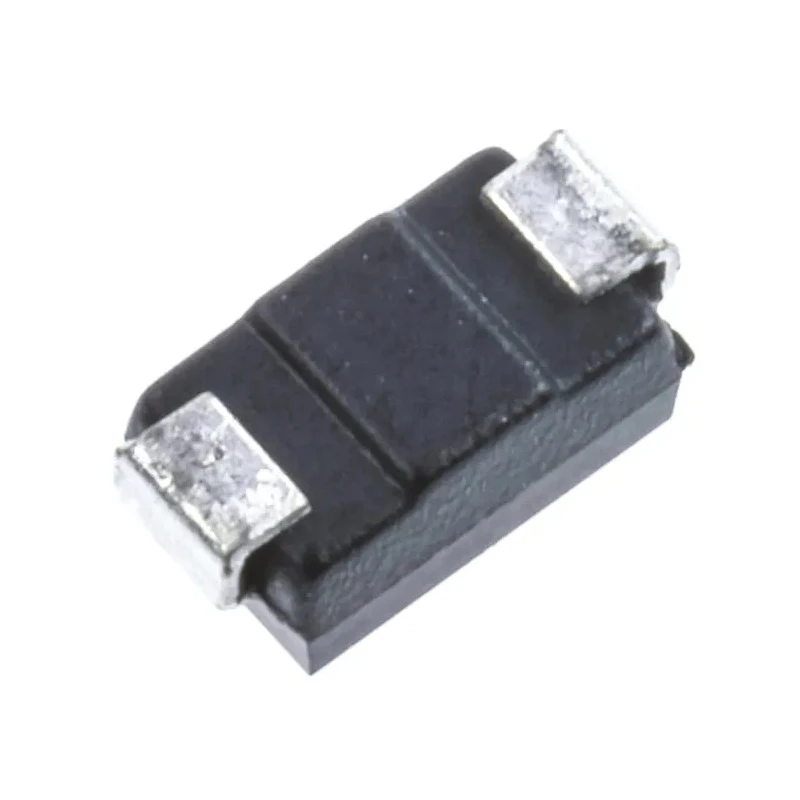

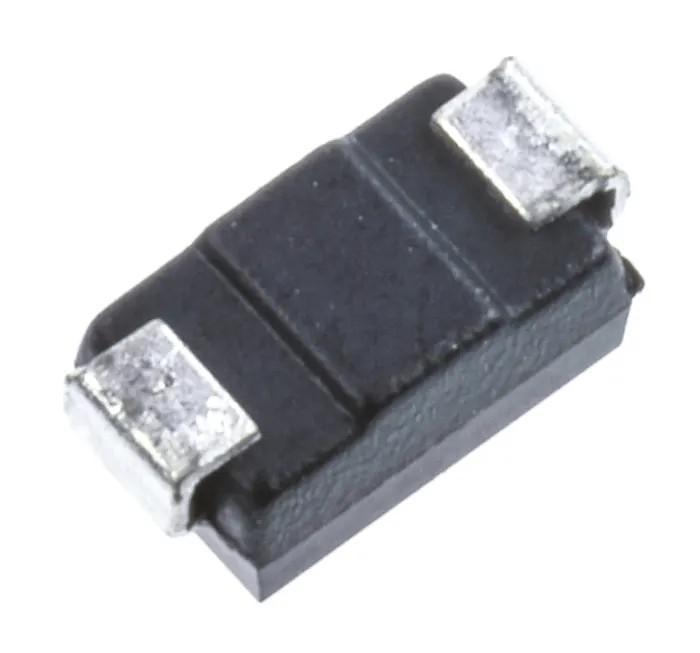

Vishay 200 V 2 A Avalanche Rectifier Diode 2-Pin DO-214AC BYG22D-E3/TR3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.09mm |
| Length | 4.5mm |
| Model | BYG22D-E3/TR3 |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | BYG22D |
| Maximum Operating Temperature | 150°C |
| Case | DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode end |
| Terminals | Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Avalanche |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Maximum continuous forward current of 2 A ensuring efficient operation.
- Peak reverse repetitive voltage rating of 200 V for durability.
- Ultrafast recovery with a peak reverse recovery time of 25 ns.
- Low forward voltage drop of 1.1 V to improve efficiency.
- Operates reliably in temperatures ranging from -55°C to 150°C.
- Features glass passivated chip junction for enhanced performance.
- Matte tin-plated leads enable easy soldering in surface mount applications.
- Compliance with AEC-Q101 automotive standard for quality assurance.
Product Description
Vishay BYG22D-E3/TR3 is an avalanche rectifier diode with a 2 A maximum continuous forward current and a peak reverse repetitive voltage of 200 V. Housed in a compact DO-214AC surface mount package, it is ideal for applications requiring ultrafast recovery and low forward voltage drop.
Its glass passivated chip junction ensures high reliability while operating within a wide temperature range from -55°C to 150°C. The diode achieves a peak reverse recovery time of 25 ns, making it suitable for high frequency switching environments in power supplies and converters.
The matte tin-plated leads meet industry standards for solderability, while the diode complies with the AEC-Q101 automotive standard, ensuring robustness in automotive and industrial applications.
Its small package size of 4.5 mm length, 2.79 mm width, and 2.09 mm height allows efficient PCB layout. The colour band marking clearly indicates the cathode, simplifying installation and reducing errors.
Maximum continuous forward current of 2 A. Peak reverse repetitive voltage of 200 V. Ultrafast recovery with 25 ns reverse recovery time. Low forward voltage drop of 1.1 V. Operating temperature range from -55°C up to 150°C.
Glass passivated chip junction for enhanced durability. Matte tin-plated leads for optimal solderability. Compact DO-214AC surface mount package. AEC-Q101 automotive standard compliant. Colour band denotes cathode end.
This diode is well suited for use in switching mode power supplies, inverters, telecommunications, and computing electronics where high efficiency and fast switching are essential. It supports applications in industrial, automotive, and consumer electronics.
Explore EnvMart’s extensive Semiconductor Diode offerings to find solutions for high-frequency rectification and switching requirements with high reliability and performance.
