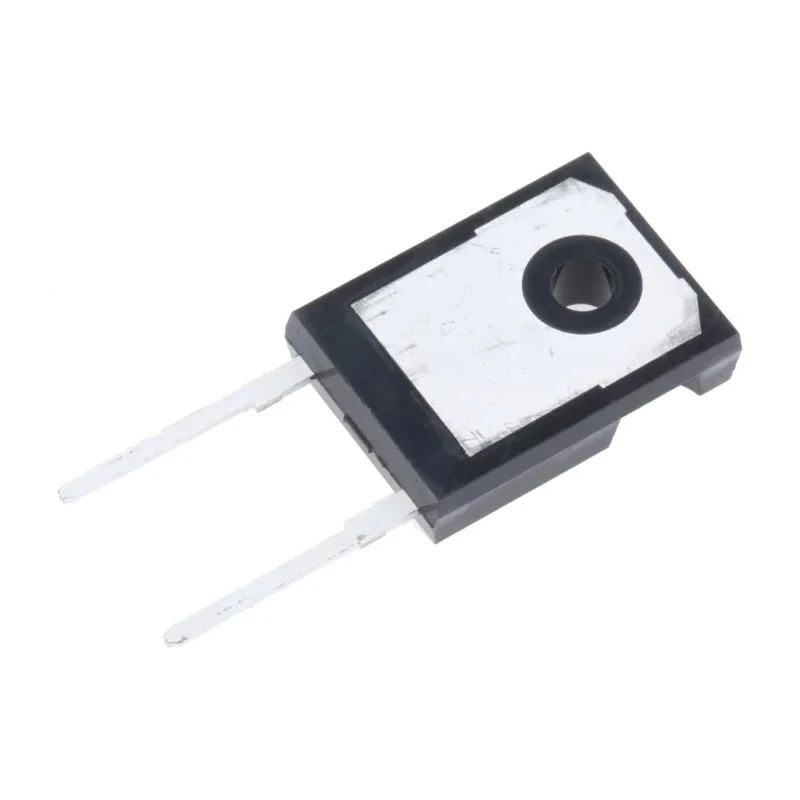

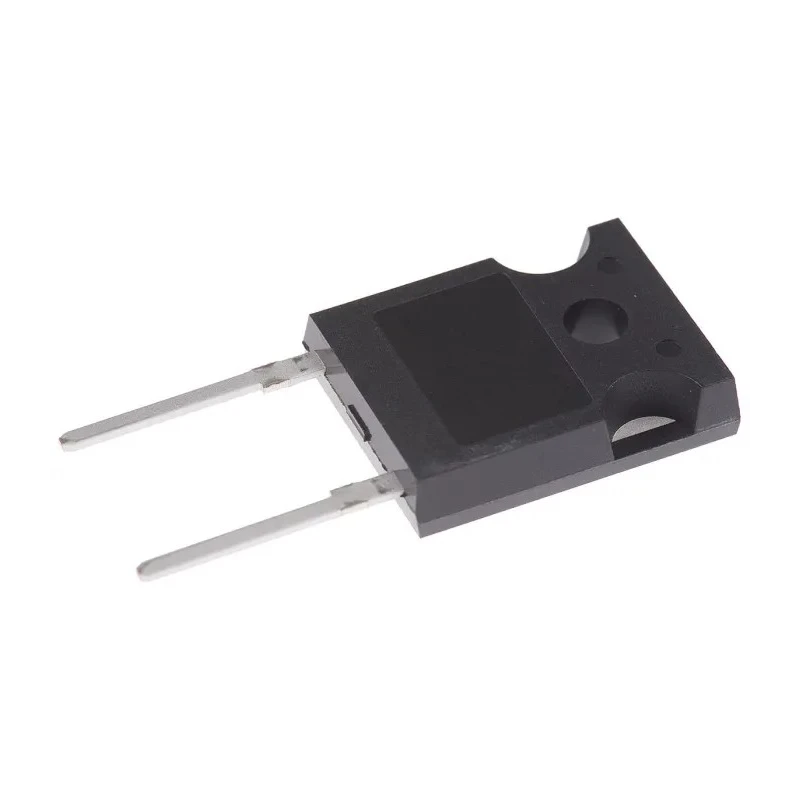

Vishay Switching Diode 1200 V 60 A Through Hole TO-247 Package VS-60EPS12-M3

Vishay VS-60EPS12-M3 is a high-performance switching diode rated for 1200 V peak reverse repetitive voltage and capable of handling continuous forward currents up to 60 A. It is housed in a robust TO-247 package, designed for through-hole mounting which offers excellent thermal management and mechanical endurance for demanding power electronic applications.

The diode features a single diode configuration optimized for switching applications that require rapid recovery and efficient conduction. With a maximum forward voltage of 1.09 V, it minimizes conduction losses, thus ensuring high efficiency in power circuits.

Its peak non-repetitive forward surge current rating of 1.1 kA allows it to absorb sudden transient currents, protecting circuits during power surges or switching events. The device operates reliably in a wide temperature range from -40°C to 150°C, suitable for harsh industrial environments.

Compact physical dimensions of 20.7 mm height, 15.9 mm length, and 5.3 mm width facilitate easy integration into existing designs with limited board space. These characteristics make the VS-60EPS12-M3 an ideal solution for power rectification and switching tasks in industrial, manufacturing, and electronic repair settings.

It is intended for use in power supplies, motor drives, inverters, and other industrial electronics requiring durable and efficient semiconductors. This diode features a single diode configuration optimized for switching applications.

The package type TO-247 ensures reliable heat dissipation and mechanical stability. It supports a peak non-repetitive forward surge current of 1.1 kA for transient loads. Operating temperature ranges from -40°C minimum up to 150°C maximum.

Maximum forward voltage drop is 1.09 V, enhancing efficiency. Pin count of 2 enables easy through-hole mounting and integration. Dimensions are compact with a height of 20.7 mm, length 15.9 mm and width 5.3 mm. Designed for general purpose power electronic circuits requiring efficient diode switching.

This product is new, suitable for industrial and electronic component replacements. Explore the Vishay range of Semiconductors in the Electronics category on EnvMart for reliable and high-quality components for your industrial and electronic engineering needs.
