| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 2mm |
| Model | BAS386-TR |
| Width | 1.2mm |
| Mount Type | Surface |
| Series | BAS386 |
| Maximum Operating Temperature | 125°C |
| Package Type | MicroMELF |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5A |
| Maximum Forward Voltage Vf | 900mV |

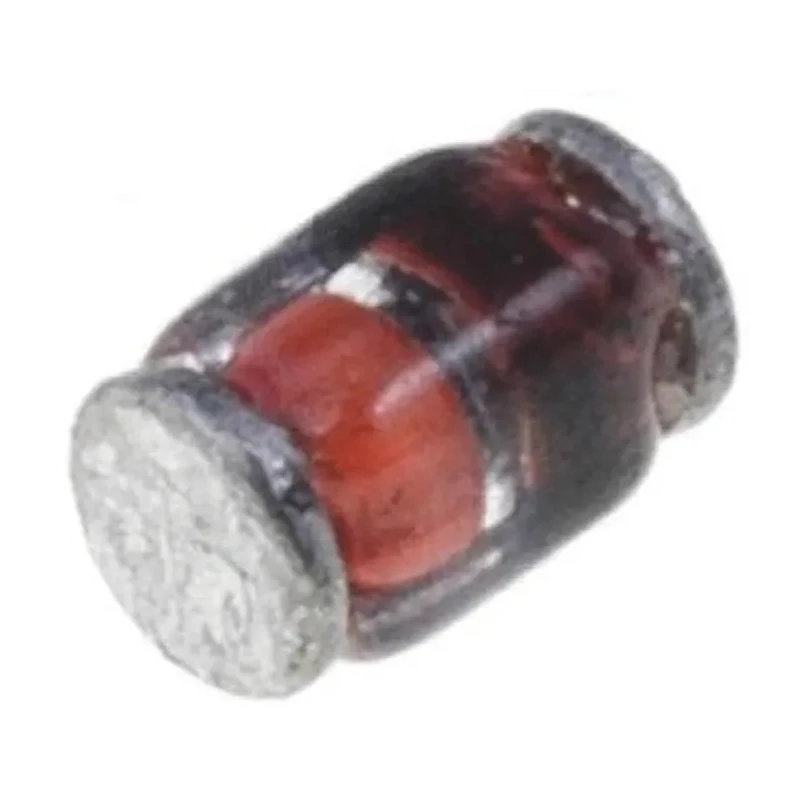

Vishay BAS386-TR is a surface mount Schottky diode housed in a compact 2-pin MicroMELF package.
This semiconductor diode features a peak reverse repetitive voltage of 50 V and a maximum continuous forward current of 200 mA, combining efficient current handling with excellent switching performance. With a low forward voltage drop of 900 mV, it efficiently minimizes power dissipation in electronic circuits.
The diode supports operation over a wide temperature range from -65°C to 125°C, making it suitable for various demanding industrial and commercial electronic applications.
Its single diode configuration and micro package size allow for simple PCB layout integration in dense assemblies, especially in power management, signal rectification, and fast switching power supplies.
Peak non-repetitive forward surge current capability of 5 A ensures robustness against transient current spikes. The product has no automotive or special standards approvals but conforms to typical semiconductor diode characteristics.
Maximum continuous forward current of 200 mA for efficient current conduction. Peak reverse repetitive voltage rating of 50 V ensuring reliable blocking capabilities. 2-pin MicroMELF package suitable for surface mount technology.
Maximum forward voltage drop of 900 mV minimizes power loss. Operates within a wide temperature range from -65°C minimum to 125°C maximum. Single diode configuration ideal for general purpose rectification. Peak non-repetitive forward surge current up to 5 A for transient tolerance.
Compact dimensions with 2 mm length and 1.2 mm width and height for PCB space conservation.
This diode is well-suited for electronic component manufacturing, power supply design, industrial automation, and other applications requiring fast switching and low voltage drops. It is a reliable component choice in electronic design and repair.
