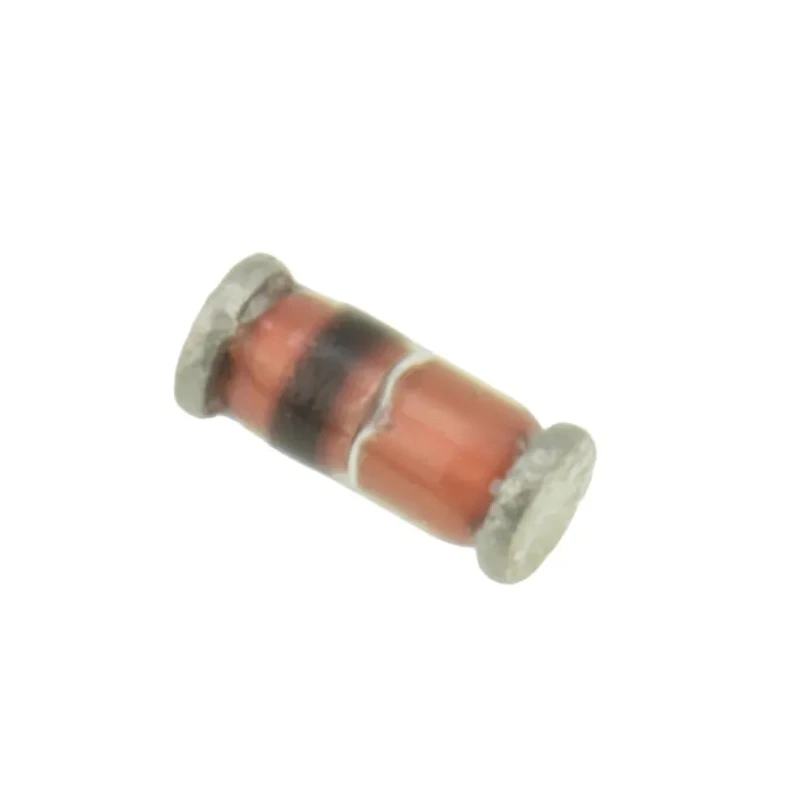

Vishay Silicon Junction Single 2 A 2-Pin Surface Mount SOD-80 Diode 100 V LL4148-GS08

Free Delivery in India | Lowest Global Shipping Charges

Vishay Silicon Junction Single 2 A 2-Pin Surface Mount SOD-80 Diode 100 V LL4148-GS08

Name: Vishay Silicon Junction Single 2 A 2-Pin Surface Mount SOD-80 Diode 100 V LL4148-GS08
Brand: Vishay
SKU: 214388
Price: 0.06 USD
Availability: InStock



Category Discrete Semiconductors Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	1.6mm
Brand	Vishay
Height	1.6mm
Length	3.7mm
Model	LL4148-GS08
Width	1.6mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Case	DO-204AL, molded epoxy over glass body
Package Type	SOD-80
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Polarity	Color band denotes cathode end
Terminals	Matte tin plated leads, solderable per
Pin Count	2
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	2A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	8ns
Maximum Forward Current If	2A
Maximum Peak Reverse Repetitive Voltage Vrrm	100V

Key Features

Single diode configuration for precise switching tasks.
Maximum forward current of 2 amperes for robust circuit performance.
Fast switching capability with an 8 ns peak reverse recovery time.
Low forward voltage drop of 1 V improving efficiency.
Glass-passivated junction ensuring high reliability and low leakage current.
Operating temperature range from -65°C to 175°C for versatile applications.
Molded epoxy case with UL 94 V-0 flammability rating for durability.
Matte tin plated solderable leads compliant with industry standards.

Product Description

Vishay LL4148-GS08 is a single silicon junction diode designed for fast switching applications requiring a maximum forward current of 2 A and a peak reverse voltage of 100 V. Housed in a compact SOD-80 surface mount package measuring 3.7 mm length and 1.6 mm width and height, this diode features a glass-passivated junction that provides high reliability and low leakage current, typically below 0.2 μA.

The diode supports a wide operating temperature range from -65°C up to 175°C and exhibits a maximum forward voltage of 1 V. Its peak reverse recovery time of 8 ns ensures efficient high-speed switching, suitable for use in industrial, electronic components manufacturing, power and connectors, and discrete semiconductor applications.

The molded epoxy case conforms to UL 94 V-0 flammability rating, providing enhanced durability and safety. Matte tin-plated leads allow for solder dip temperatures up to 275 °C for 10 seconds, adhering to standard solderability protocols J-STD-002 and JESD 22-B102. The color band clearly denotes the cathode end, facilitating proper orientation during assembly.

This diode is typically utilized in high voltage rectification for G2 grid CRTs and TV sets, as well as snubber circuits for camera flash units, making it essential in consumer electronics, industrial electronics, and laboratory environments requiring reliable switching diodes.

Single diode configuration for precise switching tasks. Maximum forward current of 2 amperes for robust circuit performance. Fast switching capability with an 8 ns peak reverse recovery time. Low forward voltage drop of 1 V improving efficiency.

Glass-passivated junction ensuring high reliability and low leakage current. Operating temperature range from -65°C to 175°C for versatile applications. Molded epoxy case with UL 94 V-0 flammability rating for durability.

Matte tin plated solderable leads compliant with industry standards. Explore the Vishay semiconductor range and other high-quality switching diodes on EnvMart for reliable electronic component sourcing.
