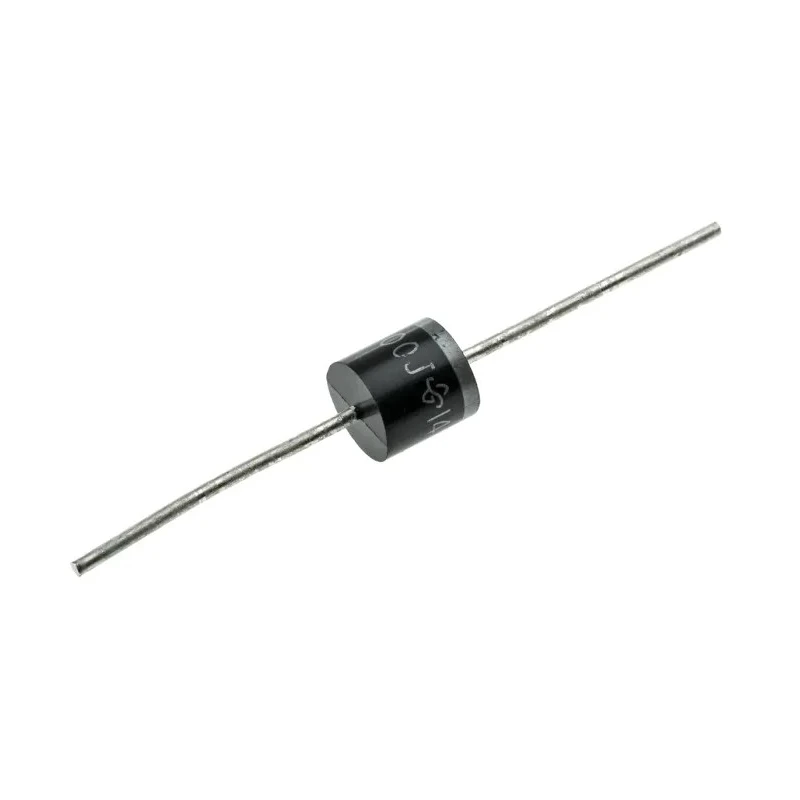

Vishay 600 V 6 A General Purpose 2-Pin Diode P600 P600J-E3/54

Vishay P600J-E3/54 is a high-performance general purpose diode designed for effective rectification in electronics applications. Its 600 V peak reverse voltage and 6 A maximum continuous forward current rating make it suitable for a wide range of power supply, inverter, and converter designs where reliable rectification is essential.

Constructed in a through-hole P600 plastic epoxy package measuring 9.1 mm in all dimensions, this diode offers robust mechanical protection. The case material is void-free molded epoxy with UL 94 V-0 flammability rating, ensuring durability and safety in industrial environments.

The diode features a low forward voltage drop of 1.3 V and a peak non-repetitive forward surge current rating of 400 A, enabling it to withstand transient currents during switching and surge events. Its peak reverse recovery time of 2.5 μs supports efficient switching performance while minimizing losses.

Matte tin plated leads, compliant with J-STD-002 and JESD 22-B102 solderability standards, allow for secure solder connections. The diode's polarity is clearly indicated by a color band marking the cathode end, simplifying correct installation.

Operating temperature range from -50°C to 150°C allows for use in harsh industrial and commercial conditions. The product is RoHS compliant and carries the E3 suffix marking signifying commercial grading and whisker mitigation testing.

This diode series finds versatile utilization in general purpose rectification tasks across industrial power supplies, inverters, converters, and freewheeling diode circuits. Its reliable electrical ratings and mechanical robustness ensure long-lasting performance.

Package Contents: 1 Pc Vishay P600J-E3/54 General Purpose Diode in P600 Package. The diode features a low forward voltage drop of 1.3 V for efficient rectification. It supports peak non-repetitive forward surge current of 400 A ensuring high surge tolerance.

The device has a maximum operating temperature of 150°C and minimum operating temperature of -50°C. It comes in a P600 plastic epoxy package with two pins, suitable for solder dip up to 275 °C. Matte tin plated leads provide solderability according to J-STD-002 standards.

The color band marking on the case denotes the cathode end for correct polarity installation. The diode is RoHS compliant and meets commercial grade E3 suffix with JESD 201 class 1A whisker test. Ideal for general purpose rectification in power supplies, inverters, converters and freewheeling diode applications.

Compact dimensions of 9.1 mm length, width, height, and diameter facilitate mounting in constrained spaces. Manufactured in China, ensuring consistent quality standards. Explore Vishay semiconductor components and Schottky diodes with EnvMart for advanced industrial electronics solutions.
