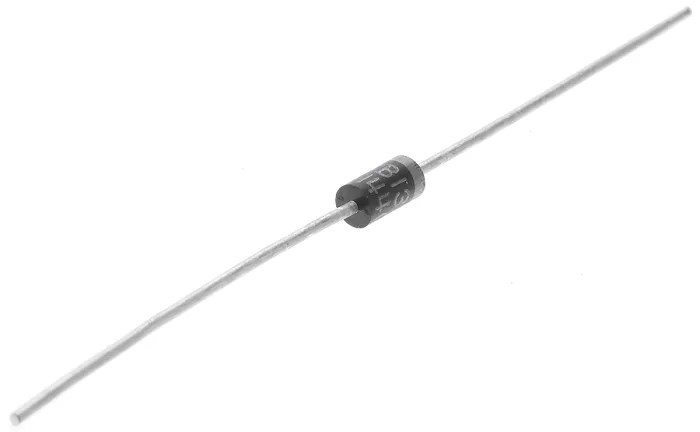

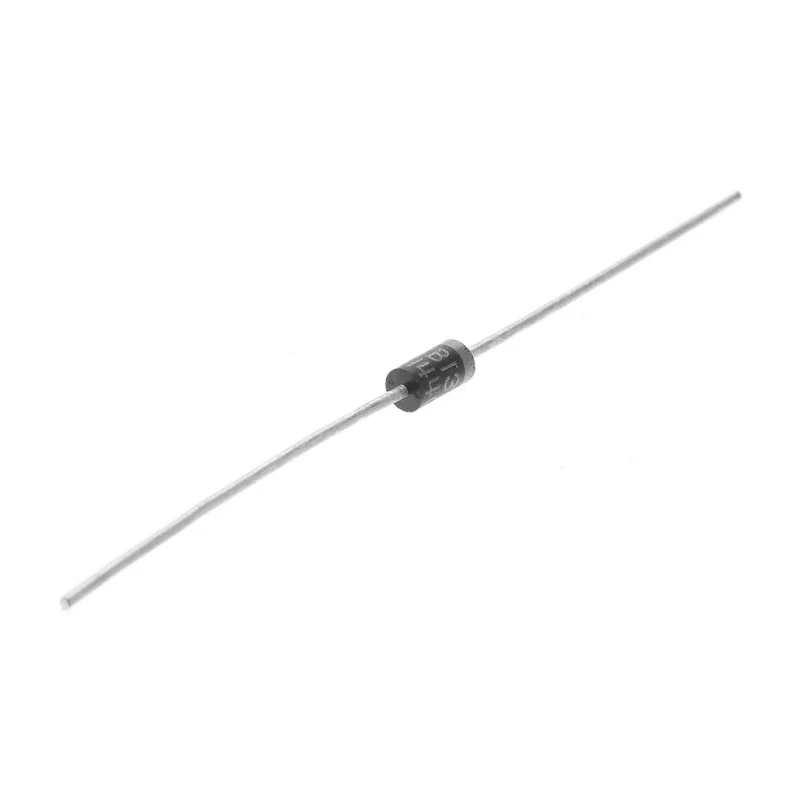

Vishay Schottky Diode 30 V 1 A 2-Pin DO-204AL SB130-E3/54

Vishay SB130-E3/54 is a high-performance Schottky diode with a forward current rating of 1 A and a peak reverse voltage of 30 V. Packaged in a compact 2-pin DO-204AL through-hole package, this diode offers a low forward voltage drop of 0.65 V and very fast switching capabilities.

Schottky diodes like the SB130-E3/54 are valued for their extremely short reverse recovery times, making them suitable for applications demanding efficient, fast switching and minimal power dissipation.

This diode operates reliably across a broad temperature range from -65°C to 125°C, ensuring durability in diverse industrial and commercial electronic environments. The device's peak non-repetitive forward surge current is rated at 50 A, providing resilience against transient surge conditions common in power electronics.

With physical dimensions of 5.21 mm length and 2.7 mm diameter, the SB130-E3/54 fits easily into standard through-hole PCBs for a wide range of power supply, rectifier, and switching applications.

Its low peak reverse current of 500 μA improves energy efficiency in sensitive circuits, and the diode's single configuration with 2 pins simplifies design integration.

No automotive certifications apply to this component, focusing its use on industrial, electronic manufacturing, hobbyist, and laboratory electronics projects where fast switching Schottky rectifiers are required.

This diode features a maximum continuous forward current of 1 A. The peak reverse repetitive voltage rating is 30 V for reliable operation. It provides a low maximum forward voltage of 0.65 V to minimize power losses. Peak non-repetitive surge current rating of 50 A ensures robustness under transient conditions.

The diode operates effectively within a temperature range of -65°C to 125°C. Its compact DO-204AL package measures 5.21 mm length and 2.7 mm diameter for easy through-hole mounting. Designed with a single diode configuration and 2 pins for simplified circuit integration.

Peak reverse current is low at 500 μA, enhancing efficiency in electronic circuits. The diode does not conform to any specific automotive standards. It is ideal for applications requiring fast switching and low power loss in power and electronic component circuits.

Explore the Vishay range of Schottky diodes and rectifiers at EnvMart for reliable, high-performance electronic components suitable for your industrial, manufacturing, laboratory, and commercial electronic design projects.
