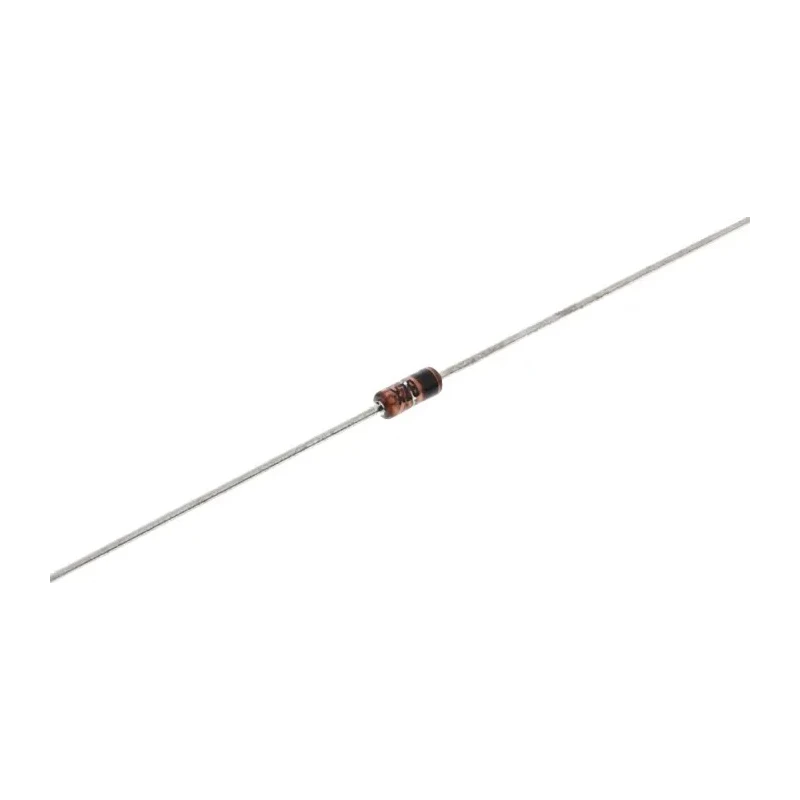

Vishay 1.47 V Zener Diode, Single 500 mW, 6% Tolerance, Through Hole 2-Pin SOD-27 BZX55C4V7-TAP

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1.47 V Zener Diode, Single 500 mW, 6% Tolerance, Through Hole 2-Pin SOD-27 BZX55C4V7-TAP

Name: Vishay 1.47 V Zener Diode, Single 500 mW, 6% Tolerance, Through Hole 2-Pin SOD-27 BZX55C4V7-TAP
Brand: Vishay
SKU: 214092
Price: 0.06 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.7mm
Length	3.9mm
Model	BZX55C4V7-TAP
Mount Type	Through Hole
Series	BZX55
Maximum Operating Temperature	175°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	10μA
Nominal Zener Voltage Vz	4.7V
Zener Type	Voltage Regulator
Maximum Zener Impedance	600Ω

Key Features

Single diode configuration ensures focused voltage regulation performance.
Nominal Zener voltage of 4.7 V with ±6% tolerance for precision applications.
Maximum power dissipation of 500 mW suitable for low power circuits.
Through hole mount type with 2-pin SOD-27 package ensures easy PCB integration.
Maximum operating temperature up to 175°C supports robust thermal conditions.
Low maximum reverse leakage current of 10 µA enhances efficiency.
Automotive standard compliant with AEC-Q101 quality assurance.
Compact size with 1.7 mm height and 3.9 mm length suitable for space-constrained designs.

Product Description

Vishay BZX55C4V7-TAP Zener Diode is a high-stability, single-element voltage regulator diode designed for through hole mounting in 2-pin SOD-27 packaging. It provides a nominal Zener voltage of 4.7 V with a tolerance of ±6%, making it ideal for precise voltage regulation in electronic circuits.

This diode can dissipate up to 500 mW of power and operates reliably within a temperature range from -65°C to 175°C, ensuring its suitability for industrial, automotive, and consumer electronic applications. The device features a very sharp reverse characteristic and a low noise profile, enhancing circuit performance.

Its maximum reverse leakage current is only 10 µA, which helps improve overall efficiency and longevity of the electronic components it protects. The diode complies with RoHS standards, and its AEC-Q101 qualification ensures high quality standards for automotive systems.

The small form factor (height 1.7 mm, length 3.9 mm) of this diode supports compact PCB designs where space saving is critical. It performs consistently at a test current of 5 mA, and its maximum Zener impedance is 600 Ω, offering stable voltage regulation.

Single diode configuration for precise voltage regulation. Nominal voltage of 4.7 V with ±6% tolerance. Maximum power dissipation of 500 mW. Through hole mounting in 2-pin SOD-27 package. Operating temperature range from -65°C to 175°C.

Low maximum reverse leakage current of 10 µA. AEC-Q101 qualified for automotive applications. Compact dimensions suitable for space-limited designs.

This Vishay Zener diode is ideal for industrial, electronics manufacturing, automotive, and power supply regulation uses where stable voltage reference and protection against voltage spikes are required. It is a dependable component for semiconductor discrete device applications and can be integrated into various circuit designs requiring reliable zener diode performance.
