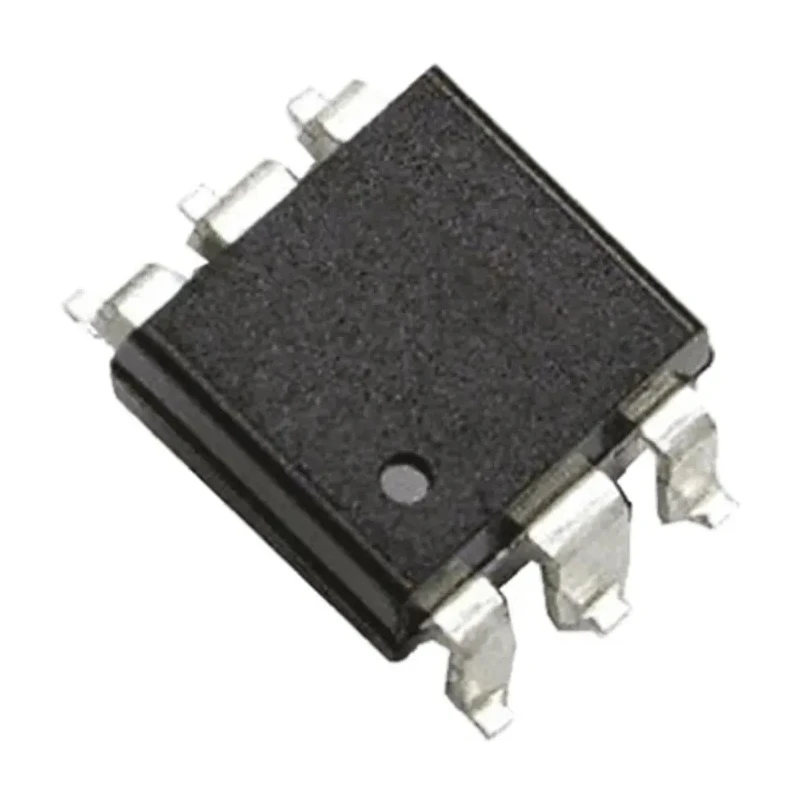

Broadcom ASSR-5211 Series Solid State Relay 0.2A Load Current 600V Load Voltage PCB Mount DIP-6 Package ASSR-5211-301E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom ASSR-5211 Series Solid State Relay 0.2A Load Current 600V Load Voltage PCB Mount DIP-6 Package ASSR-5211-301E

Name: Broadcom ASSR-5211 Series Solid State Relay 0.2A Load Current 600V Load Voltage PCB Mount DIP-6 Package ASSR-5211-301E
Brand: Broadcom
SKU: 213212
Price: 7.14 USD
Availability: InStock



Category Solid State Relay Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	4.2mm
Length	9.7mm
Model	ASSR-5211-301E
Width	6.4mm
Mount Type	PCB
Output type	MOSFET
Series	ASSR-5211
Maximum Operating Temperature	+85°C
Contact Configuration	SPST
Package Type	DIP-6
Capacitance	0.8pF
Minimum Operating Temperature	-40°C
Terminal type	6-Pin
Maximum Load Current	0.2A
Standards/Approvals	IEC, CSA, UL, RoHS
Maximum Load Voltage	600V
Minimum Control Voltage	1.1V
Maximum Control Voltage	1.7V
Off State Leakage Current	1μA
On State Resistance	10Ω

Key Features

Supports a maximum load current of 0.2 amperes.
Rated for a maximum load voltage of 600 volts.
Minimum and maximum control voltage range from 1.1V to 1.7V ensures stable operation.
Features a 6-pin terminal type with SPST contact configuration.
Compact DIP-6 package with dimensions of 9.7mm length, 6.4mm width, and 4.2mm height.
Operates reliably from -40°C up to +85°C.
Low on-state resistance of 10 ohms minimizes power loss.
Off-state leakage current is minimal at 1 microampere.

Product Description

The Broadcom ASSR-5211-301E is a high-performance solid state relay designed for industrial and electronic applications requiring reliable low-current switching. This relay features a load current capacity of 0.2 amperes and can handle load voltages up to 600 volts, making it suitable for PCB mounting in electronic control circuits.

Its compact DIP-6 package measures 9.7mm in length, 6.4mm in width, and 4.2mm in height, allowing easy integration onto printed circuit boards. The relay operates efficiently with a minimum control voltage of 1.1V and a maximum control voltage of 1.7V, simplifying interface with control electronics.

Equipped with a 6-pin terminal and SPST contact configuration, the relay uses MOSFET output technology driven by a high-speed photovoltaic diode array for fast and reliable switching performance. Its low on-state resistance of 10 ohms and minimal off-state leakage current of 1 microampere ensure energy-efficient operation.

The relay maintains functionality across an operating temperature range of -40°C to +85°C, meeting rigorous industrial temperature stability requirements. Additionally, the ASSR-5211-301E complies with international standards including IEC, CSA, UL, and RoHS, ensuring quality assurance and environmental safety.

This solid state relay is ideal for industrial automation, electrical control systems, and environments where silent, contactless relay switching is desired, improving production efficiency and device longevity.

Supports a maximum load current of 0.2 amperes. Rated for a maximum load voltage of 600 volts. Compact DIP-6 package for easy PCB mounting. Low on-state resistance of 10 ohms minimizes energy loss. Operates from -40°C to +85°C across various environments.

Meets IEC, CSA, UL, and RoHS certifications. Uses MOSFET output with high-speed photovoltaic diode array. Minimal off-state leakage current of 1 microampere. 6-pin SPST contact configuration supports reliable switching. Control voltage range between 1.1V to 1.7V for stable triggering.
