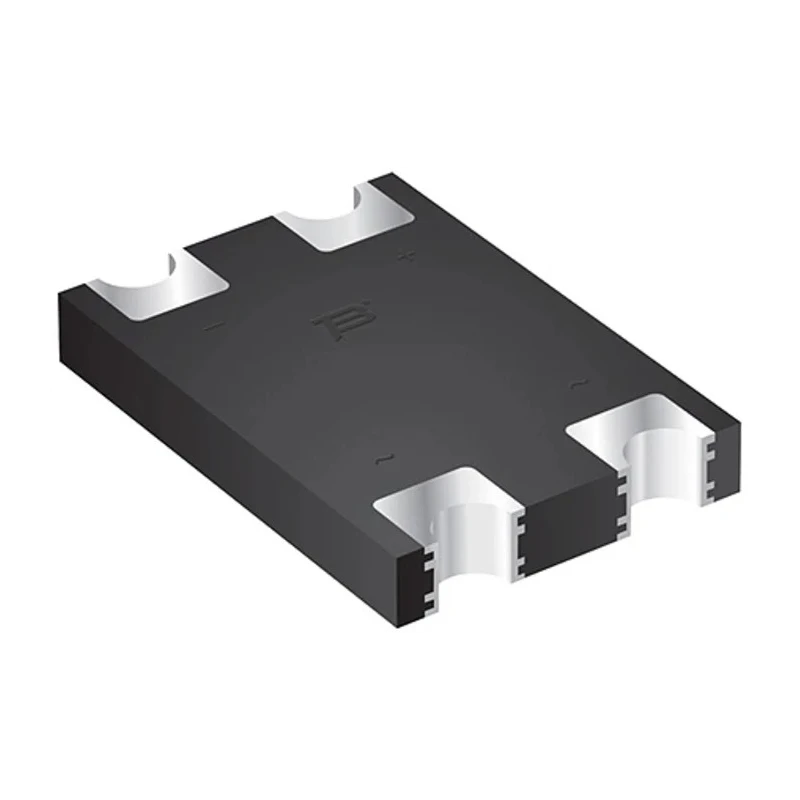

Bourns Surface Mount Bridge Rectifier 1000 V Peak Reverse Voltage 50 A Peak Surge Current 4-Pin CD-MBL210S

Free Delivery in India | Lowest Global Shipping Charges

Bourns Surface Mount Bridge Rectifier 1000 V Peak Reverse Voltage 50 A Peak Surge Current 4-Pin CD-MBL210S

Name: Bourns Surface Mount Bridge Rectifier 1000 V Peak Reverse Voltage 50 A Peak Surge Current 4-Pin CD-MBL210S
Brand: BOURNS
SKU: 199075
Price: 0.29 USD
Availability: InStock



Category Bridge Rectifier Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	1.35mm
Length	5.9mm
Model	CD-MBL210S
Width	5.4mm
Mount Type	Surface
Series	CD-MBL2
Configuration	Single
Maximum Operating Temperature	175°C
Package Type	SMT
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	2A
Peak Forward Voltage Vf	1V

Key Features

Compact surface mount technology (SMT) package for efficient PCB integration.
Peak reverse repetitive voltage of 1000 V ensures high voltage blocking capability.
Forward current rating of 2 A and peak non-repetitive surge current of 50 A supports demanding applications.
Operates reliably within temperature range of -55°C to 175°C.
Features a 4-pin single configuration for one-phase bridge rectification.
Low peak forward voltage drop of 1 V enhances efficiency.
Extremely low peak reverse current of 5 μA minimizes leakage losses.
Compact dimensions of 5.9 mm length, 5.4 mm width, and 1.35 mm height support space saving designs.

Product Description

Bourns CD-MBL210S is a high-performance bridge rectifier designed to convert alternating current (AC) to direct current (DC) efficiently. This component is housed in a compact surface mount technology (SMT) package, allowing for low-profile circuit designs and automated assembly.

The rectifier supports a peak reverse repetitive voltage (Vrrm) of 1000 V and a forward current of 2 A, with a peak non-repetitive surge current of 50 A, making it suitable for demanding industrial and electronic power control applications. Operating reliably within a temperature range of -55°C to 175°C, it addresses a variety of environmental conditions.

The device features a 4-pin single-phase configuration, providing stable rectification performance with a low peak forward voltage drop of 1 V and minimal leakage current characterized by a peak reverse current of only 5 microamperes. Its small footprint of 5.9 mm length, 5.4 mm width, and 1.35 mm height enables compact device assemblies.

Bourns bridge rectifiers like the CD-MBL210S are widely used for power supply units, motor control, battery chargers, and other applications requiring efficient AC to DC conversion. They contribute to improved production efficiency when integrated into modern surface-mount electronics manufacturing processes.

Compact surface mount technology package. Peak reverse repetitive voltage rating of 1000 V. Forward current rating of 2 A and peak surge current of 50 A. Wide operating temperature range from -55°C to 175°C. Low peak forward voltage and minimal peak reverse current for high efficiency.

Small physical dimensions suitable for space-sensitive designs. Single-phase, 4-pin configuration for bridge rectification. Ideal for industrial power control, electronic equipment, and manufacturing applications. Discover the range of Bourns semiconductors and Bridge Rectifiers available through EnvMart for reliable high-performance electronic components.
