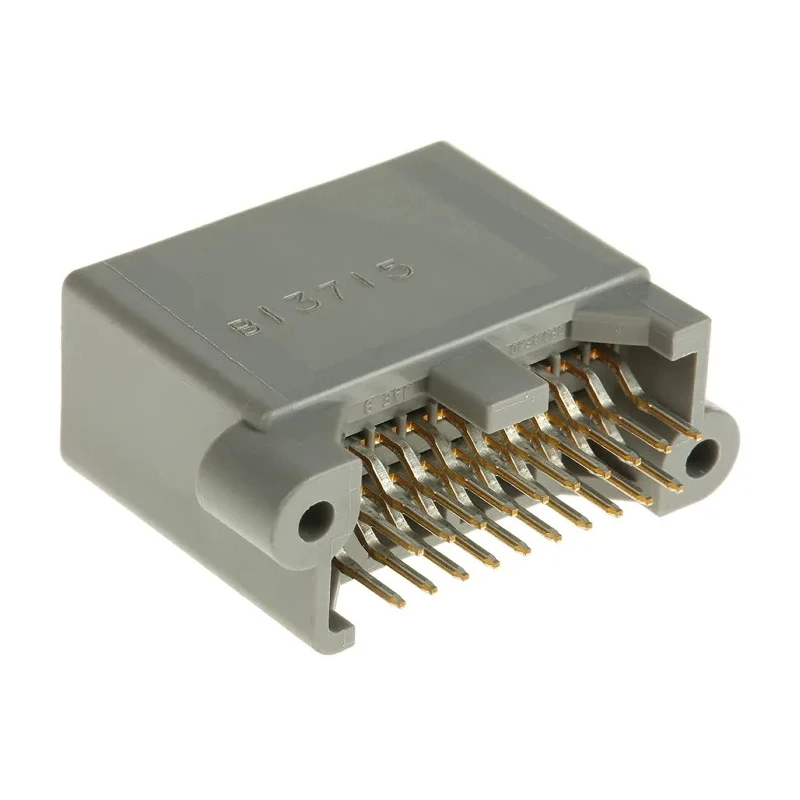

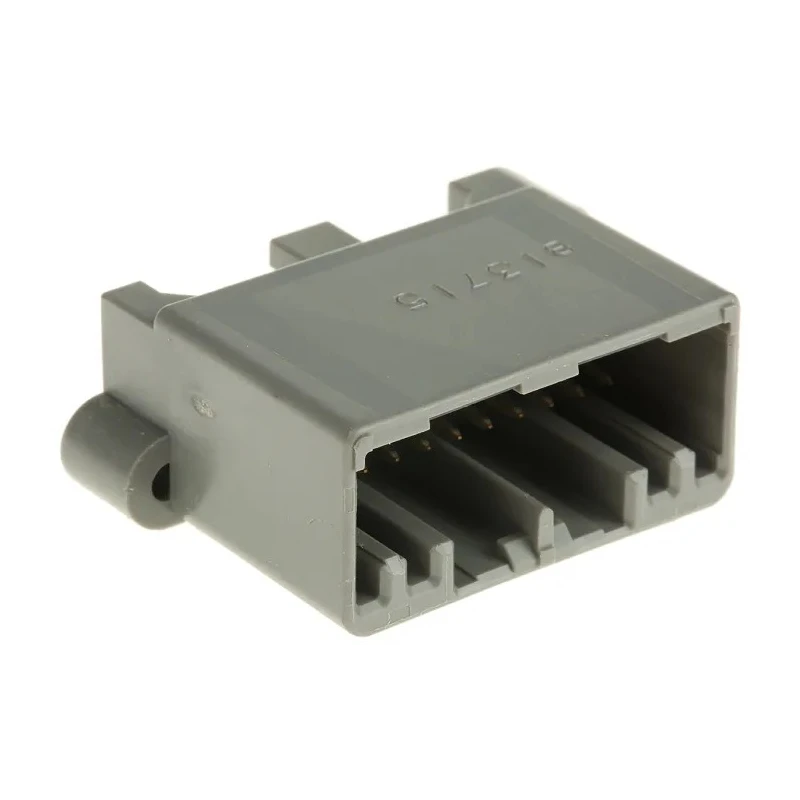

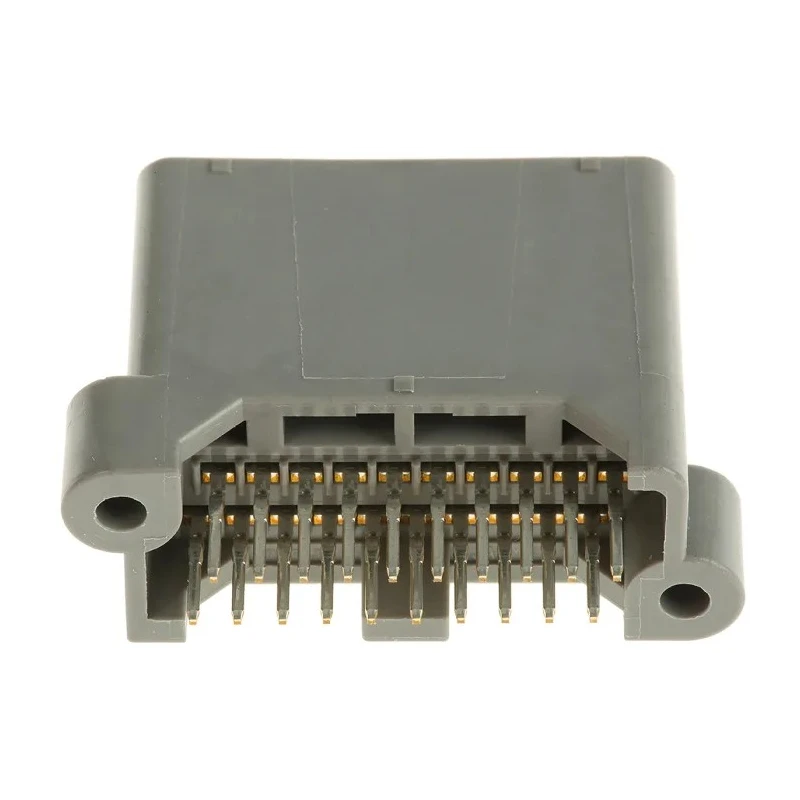

JAE MX34 Series Straight Through Hole PCB Header 20 Contacts 2.2 mm Pitch 2 Row Shrouded MX34
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Straight |
| Current | 3A |
| Model | MX34 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Syndiotactic Polystyrene |
| Contact Material | Brass |
| Series | MX34 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.2mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| For MX34 socket housings see typical stock numbers | 690-9852 |
Key Features
- Constructed with brass contacts plated with tin for improved conductivity.
- Housing made from glass filled syndiotactic polystyrene ensuring durability.
- Designed for wire-to-board connection through a through-hole mount type.
- Operates over a temperature range of -40°C to 85°C.
- Features a male contact gender with solder termination for secure fitting.
- Provides a current rating of 3A suitable for automotive applications.
- The shrouded connector protects contacts from external damage and ensures durability.
- Compatible with MX34 socket housings, part number 690-9852.
Product Description
JAE MX34 Series MX34 straight through hole PCB header offers 20 male contacts arranged in 2 rows with a 2.2 mm pitch, suitable for wire-to-board connections using a through-hole mounting approach. Constructed from brass contacts plated with tin, housed in robust glass filled syndiotactic polystyrene, this connector maintains reliability in challenging environments.
Operating within a temperature range of -40°C to 85°C, it supports up to 3A current, making it ideal for automotive and industrial electronic applications. The shrouded design provides mechanical protection and prevents accidental contact damage while facilitating durability.
Featuring a double locking mechanism and a box-type pin header, the MX34 series connectors reduce mating/unmating forces to 80N or less, improving assembly workability. The preset-type retainer ensures complete insertion of contacts, preventing incomplete engagements, while the lock spring bridge protects contacts against external stress.
This connector is compatible with MX34 socket housings (RS Part No. 690-9852), enabling modular assembly configurations. Its compact size and non-waterproof characteristics are tailored for automotive wiring harnesses and other industrial electronics.
Constructed with brass contacts plated with tin for improved conductivity. Housing made from glass filled syndiotactic polystyrene ensuring durability. Designed for wire-to-board connection through a through-hole mount type.
Operates over a temperature range of -40°C to 85°C. Features a male contact gender with solder termination for secure fitting. Provides a current rating of 3A suitable for automotive applications. The shrouded connector protects contacts from external damage and ensures durability.
Compatible with MX34 socket housings, part number 690-9852. Non-waterproof compact design optimized for automotive connectors. Double locking mechanism enhances mating security and reduces unmating force.
Ideal for industrial electronics manufacturing, automotive wiring assemblies, and high-reliability PCB interconnections, the JAE MX34 Series PCB Header delivers robust mechanical and electrical performance.
Explore more PCB Headers and Connectors at EnvMart for high-quality sourcing.
