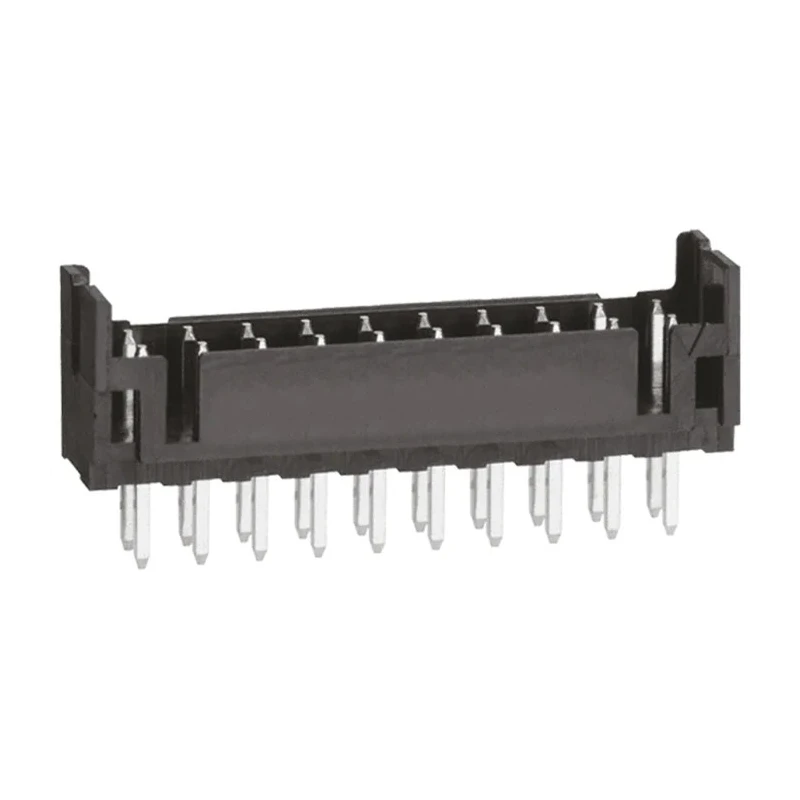

Hirose DF11 Series Shrouded Straight Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- The compact 2 mm pitch doubles contact density in minimal space.
- Shrouded housing ensures protection and prevents insertion errors.
- Constructed with polyamide housing and copper alloy contacts plated with tin.
- Offers robust locking mechanism and guide ribs to secure mating.
- Operates reliably from -30°C to 85°C and supports up to 250 V and 2 A current.
- Through hole mount type suitable for PCB soldering applications.
- Ideal for use in digital cameras, LCD displays, car navigation, and access control units.
Product Description
Hirose DF11-20DP-2DSA(24) is a high-quality shrouded straight through hole PCB header connector from the DF11 series, featuring 20 male contacts arranged in 2 rows with a 2 mm pitch. Manufactured with a durable polyamide housing and copper alloy contacts plated in tin, this component is designed for reliable and space-efficient board-to-board and wire-to-board connections in various electronic applications.
The DF11 series connectors are known for their compact design that allows double row contact configurations within the same footprint as single row connectors. The shrouded design provides excellent protection and prevents incorrect mating with the integrated guide ribs. Additionally, the locking mechanism ensures a secure connection during operation, and the through hole mounting type facilitates robust PCB soldering and mechanical retention.
Operating voltage of up to 250 V and current rating of 2 A make it suitable for various low to medium power electronics. The operating temperature range from -30°C to 85°C supports use in diverse environments. This connector is commonly utilized in digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices.
The compact 2.00 mm pitch doubles contact density within a limited PCB space. Shrouded housing and guide ribs prevent mismating and enhance durability. Robust locking mechanism ensures secure mating connection. Copper alloy contacts with tin plating provide reliable conductivity.
Through hole mounting enhances solder joint strength and PCB retention. Wide operating temperature range and electrical ratings support industrial use. Supports both board-to-board and wire-to-board connector applications.
This versatile and compact PCB Header is designed to meet demanding industrial and commercial electronic assembly requirements. Explore EnvMart for additional Hirose connectors and PCB components to support your manufacturing and prototyping needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 250 V.
This connector has a current rating of 2 A.
The pitch size of the contacts is 2 mm.
It is constructed with a polyamide housing and copper alloy contacts plated with tin.
The operating temperature range is from -30°C to 85°C.
This model features 20 male contacts arranged in 2 rows.
It uses a through hole mounting type suitable for PCB soldering applications.
It is commonly used in digital cameras, LCD displays, car navigation systems, and access control units.
Yes, the shrouded design and integrated guide ribs help prevent incorrect mating.
This connector supports both board-to-board and wire-to-board connections.
The orientation of this connector is straight.
The country of origin for this PCB header is Malaysia.
