JAE MX34 Series Right Angle Through Hole PCB Header 36 Contacts 2.2 mm Pitch 2 Row Shrouded MX34

Free Delivery in India | Lowest Global Shipping Charges

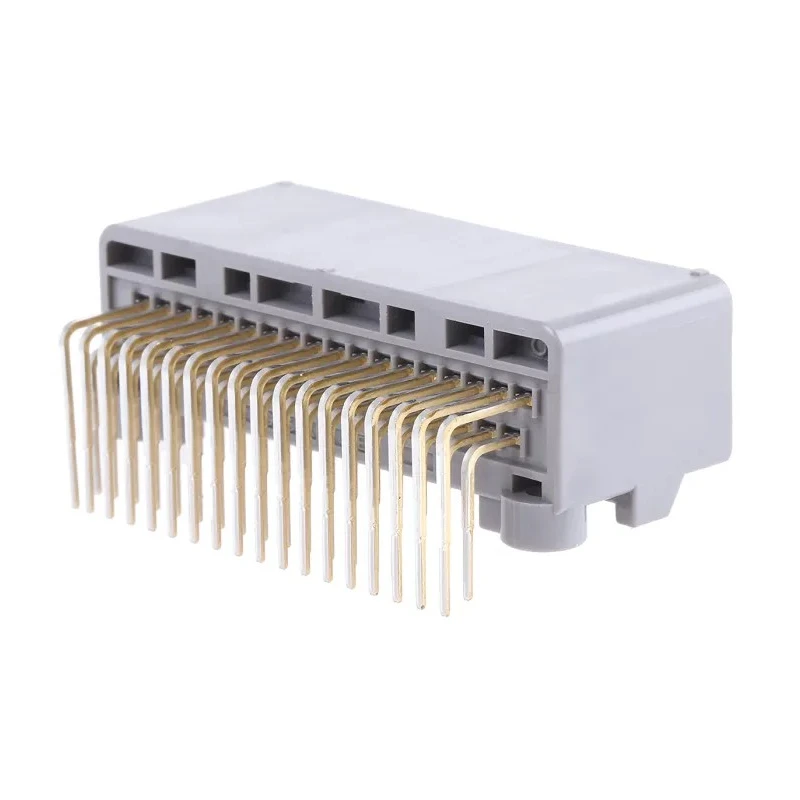

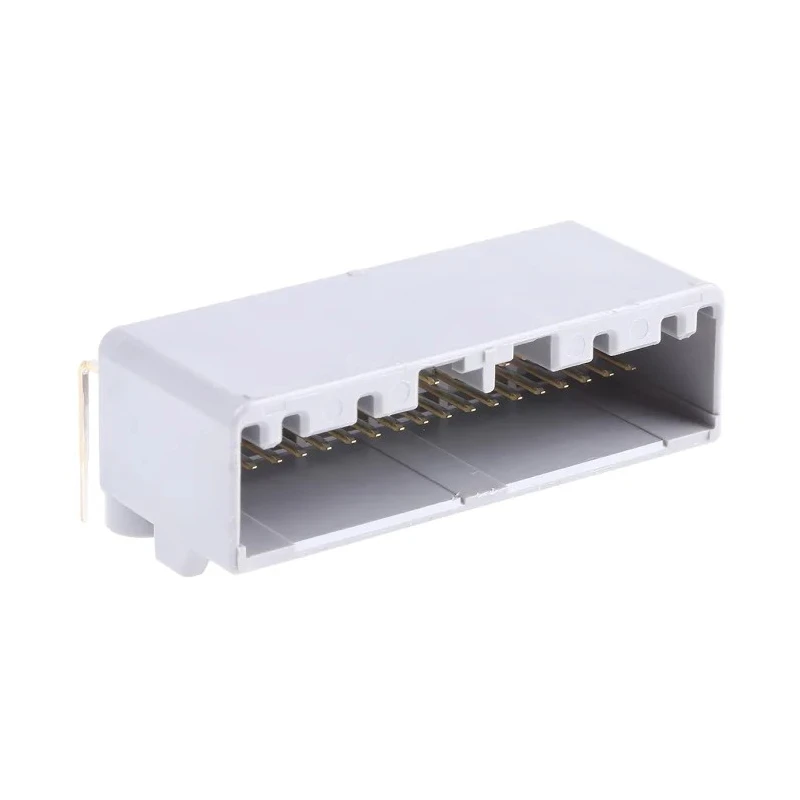

JAE MX34 Series Right Angle Through Hole PCB Header 36 Contacts 2.2 mm Pitch 2 Row Shrouded MX34



Category PCB Headers Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Right Angle
Current	3A
Model	MX34
Mount Type	Through Hole
Housing Material	Glass Filled Syndiotactic Polystyrene
Contact Material	Brass
Series	MX34
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.2mm
Contact Plating	Tin
Number of Contacts	36
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
For MX34 socket housings see typical stock numbers	690-9852

Key Features

Features a right angle orientation suitable for PCB mounting.
Consists of 36 male contacts arranged in 2 rows.
Constructed using durable glass filled syndiotactic polystyrene housing material.
Operates reliably from -40°C to 85°C.
Contact material is brass with tin plating for corrosion resistance.
Solder termination type ensures secure electrical connections.
Shrouded design enhances safety and protection of contacts.
Supports wire-to-board connector system and through hole mounting type.

Product Description

JAE MX34 Series Right Angle Through Hole PCB Header model MX34 is a 36-contact, 2.2 mm pitch, 2-row shrouded male connector designed for high performance in automotive and electronic industries. This right angle PCB header provides a durable and compact solution for wire-to-board connections.

The housing is made from glass filled syndiotactic polystyrene, offering high mechanical strength and thermal stability with operating temperatures ranging from -40°C to 85°C. The brass contacts with tin plating ensure reliable conductivity and corrosion resistance. Solder termination ensures robust and secure mounting on printed circuit boards.

This shrouded connector features a preset double locking mechanism that prevents incomplete contact insertion, enhancing reliability and safety in automotive applications. The design reduces mating and unmating forces to 80N or less to improve workability during assembly.

The MX34 header is compatible with MX34 socket housings (stock number 690-9852) and is ideal for automotive, industrial electronics, and general PCB connection use cases requiring secure, durable connector systems.

Right angle orientation tailored for compact PCB layouts. 36 male contacts aligned in two rows with 2.2 mm pitch. Robust glass-filled material housing for environmental resilience. Wide operating temperature range from -40°C to 85°C suitable for harsh conditions.

Reliable brass contact material with tin plating for conductivity and longevity. Solder termination facilitates strong electrical and mechanical connections. Shrouded design protects against contact damage and shorts. Wire-to-board connector system with through hole mounting.

3A current rating supports standard power requirements. Double locking preset mechanism ensures secure mating and assembly precision.

This product enhances manufacturing efficiency and connection integrity for automotive and industrial applications requiring trustworthy PCB interfacing. Explore the JAE MX34 Series and related PCB Headers on EnvMart to find the best connectors for your electronic projects.
